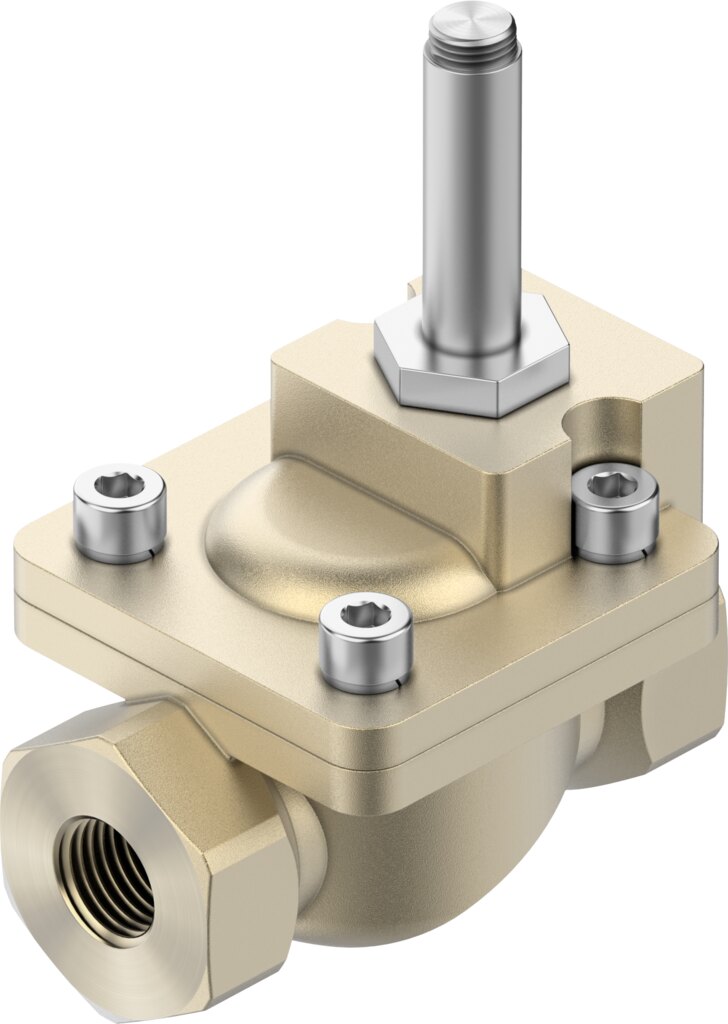

Festo VZWM-L Solenoid Valve 2/2 - G3/8", El, VZWM-L-M22C-G38-F4
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VZWM-L Solenoid Valve 2/2. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G3/8", activation El, supplier type designation VZWM-L-M22C-G38-F4. Supplied under manufacturer part number 546147, EAN 4052568184414, HS code 8481.80, country of origin Germany.
Technical Specifications
- Design
- Diaphragm valve; servo-controlled
- Type of actuation
- Electrical
- Sealing principle
- Soft
- Mounting position
- Preferably upright
- Type of mounting
- Inline installation
- Connection Process valve
- G3/8
- Electrical connection
- Solenoid coil type MD-... , coil can be ordered as an accessory
- Nominal size
- 13.5 mm
- Valve function
- 2/2-way, single solenoid, closed
- Flow direction
- Non-reversible
- Medium
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gases; Water; Neutral fluids
- Medium pressure,valve for liquid media
- 0.05 ... 0.6 MPa (0.5 ... 6 bar) (7.25 ... 87 psi)
- Medium pressure,valve for gaseous media
- 0.05 ... 1 MPa (0.5 ... 10 bar) (7.25 ... 145 psi)
- Burst pressure
- 4 MPa (40 bar) (580 psi)
- Overload pressure
- 4 MPa (40 bar) (580 psi)
- Pressure difference
- 0.05 MPa (0.5 bar) (7.25 psi)
- Type of piloting
- Piloted
- Symbol
- 00995681
- Max. viscosity
- 22 mm²/s
- Media temperature
- -10 ... 60 °C
- Media temperature for fluids
- 5 ... 50 °C
- Ambient temperature
- -10 ... 60 °C
- Flow rate Kv
- 2 m³/h
- Standard nominal flow rate (standardised to DIN 1343)
- 2100 l/min
- Switching time on
- 8 ms
- Switch-on time for fluids
- 110 ms
- Switching time off
- 10 ms
- Switch-off time for fluids
- 210 ms
- b value
- 0.35
- C value
- 8.8 l/sbar
- LABS (PWIS) conformity
- VDMA24364 zone III
- Material housing
- Brass
- Material number housing
- 2,0402
- Material seals
- NBR
- Material plunger tube
- High-alloy steel
- Product weight
- 480 g
- Max. tightening torque for cover screw
- 20 Nm
- Max. tightening torque for connecting thread
- 60 Nm
- Max. tightening torque for coil fastening
- 0.5 Nm
- EAN / GTIN
- 4052568184414
- Festo type code
- VZWM-L-M22C-G38-F4
- Festo order number
- 546147
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G3/8"
- Activation
- El
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 12.6140 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84818087
- HS code
- 8481.80
- Manufacturer part number
- 546147
Standards & Compliance
- HS Code
- 8481.80
Cross References
- EAN 4052568184414
- MPN 546147
Product Documentation
More from Festo
Festo
Festo ADN Compact cylinder double-acting - 32mm, 10mm, 1/8, 5mm, ADN-32-5-A-P-A
536268
Festo
Festo ADVU Compact cylinder - 40mm, G1/8, 5mm, ADVU-40-5-P-A
156540
Festo
Festo VABM P-Battery Rail - 3/4", VABM-B10-30-G34-9-P53
8026345
Festo
Festo VUVG-L14 Solenoid Valve 5/3 24V DC - G1/8", El, Spring, VUVG-L14-P53C-T-G18-1R8L
574231
Festo
Festo DSBC Standard cylinder double-acting aluminium - 70mm, 63mm, DSBC-63-70-PPSA-N3
2126687
Festo
Festo NPQH-D Connector nickel-plated brass - 12mm, 8mm, NPQH-D-Q12-Q8-P10
578331
Festo
Festo HE-D-MIDI Inflation valve - HE-1/2-D-MIDI
162810
Festo

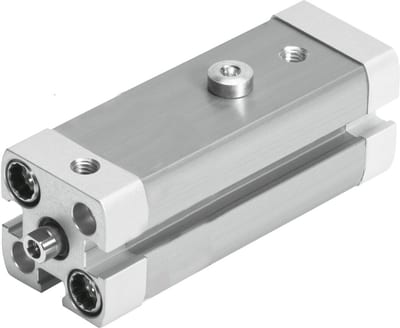

Festo CLR Linear Swing Clamp - 25mm, M5, CLR-25-20-R-P-A
