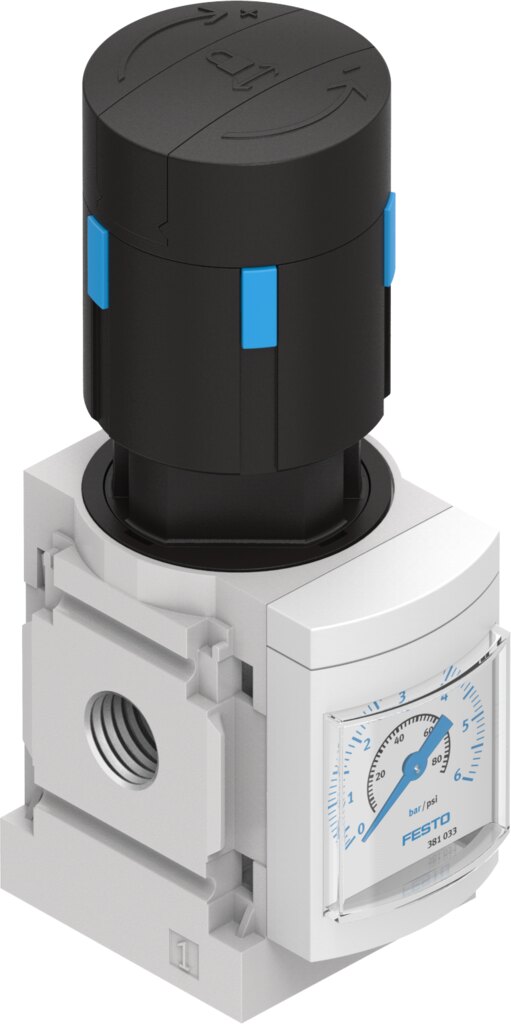

Festo MS4-LR Pressure regulator - 1/4", MS4-LR-1/4-D5-AS
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MS4-LR Pressure regulator. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/4", supplier type designation MS4-LR-1/4-D5-AS. Supplied under manufacturer part number 529415, EAN 4052568085049, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent; can be closed with accessories
- Mounting position
- Any
- Design
- Directly actuated diaphragm regulator
- Controller function
- Output pressure constant; With secondary exhausting; With return flow function
- Symbol
- 00991558
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.08 ... 1.4 MPa (0.8 ... 14 bar)
- Pressure regulation range
- 0.3 ... 4 bar
- Max. pressure hysteresis
- 0.025 MPa (0.25 bar) (3.625 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 2100 l/min
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]; Inert gas
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Suitable for use with food
- See supplementary material information
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 225 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Material sub-base
- Die-cast aluminium
- Material control panel
- PA; POM
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Material membrane
- NBR
- EAN / GTIN
- 4052568085049
- Festo type code
- MS4-LR-1/4-D5-AS
- Festo order number
- 529415
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/4"
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 1.5921 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811099
- HS code
- 8481.10
- Manufacturer part number
- 529415
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568085049
- MPN 529415
Product Documentation
More from Festo
Festo
Festo NPFC-E2 Extension brass, nickel-plated BSPP - 1/4", 1/4", NPFC-E2-2G14-FM
8030303
Festo
Festo VUVS-L20 Solenoid Valve 5/3 24V DC - G1/8", El, Spring, VUVS-L20-P53U-MD-G18-F7-1C1
575267
Festo
Festo AEVU Compact cylinder - 32mm, G1/8, 5mm, AEVU-32-5-P-A
156950
Festo
Festo DNC Standard cylinder - 100mm, G1/2", 40mm, DNC-100-40-PPV
163480
Festo
Festo CPE18 Solenoid Valve - G1/4", El, Spring, CPE18-M3H-5/3B-1/4
170323
Festo
Festo VZWM-L Solenoid Valve 2/2 - G3/8", El, VZWM-L-M22C-G38-F4
546147
Festo
Festo ADN Compact cylinder double-acting - 32mm, 10mm, 1/8, 5mm, ADN-32-5-A-P-A
536268
Festo
Festo ADVU Compact cylinder - 40mm, G1/8, 5mm, ADVU-40-5-P-A
156540
