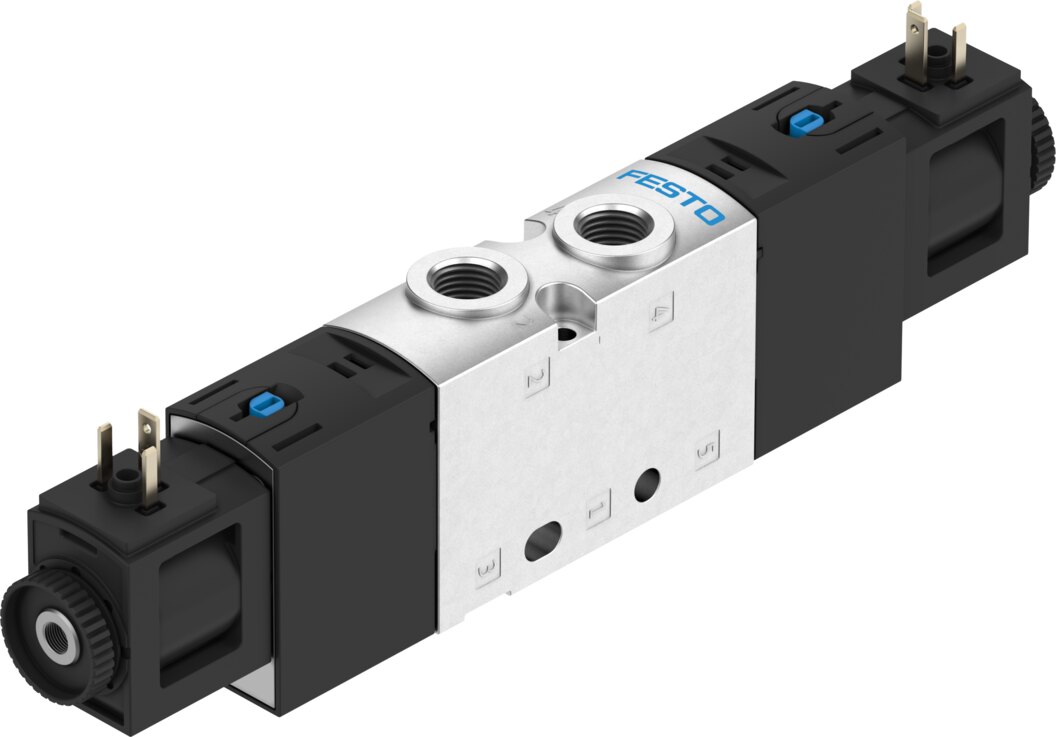

Festo VUVS-L20 Solenoid Valve 5/3 24V DC - G1/8", El, Spring, VUVS-L20-P53U-MD-G18-F7-1C1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVS-L20 Solenoid Valve 5/3 24V DC. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/8", activation El, return Spring, supplier type designation VUVS-L20-P53U-MD-G18-F7-1C1. Supplied under manufacturer part number 575267, EAN 4052568223946, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/3-way, pressurised
- Type of actuation
- Electrical
- Valve size
- 21 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 600 l/min
- pneumatic working port
- G1/8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Approval
- c UL us - Recognised (Oil)
- Degree of protection
- IP65; With plug socket; To IEC 60529
- Nominal size
- 4.8 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991034
- lap
- Overlap
- b value
- 0.35
- C value
- 2.5 l/sbar
- Switching time off
- 42 ms
- Switching time on
- 13 ms
- Switching time reversal
- 21 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1900 µs
- Max. negative test pulse with 1 signal
- 2700 µs
- Characteristic coil data
- 24 V DC: 2.6 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 263 g
- Electrical connection
- Type C; To EN 175301-803
- Type of mounting
- On manifold rail; With through-hole
- Breather connection
- Not ducted
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- HNBR; NBR
- Material housing
- Die-cast aluminium; painted
- Material piston slide
- High-alloy stainless steel
- Material screws
- Galvanised steel
- EAN / GTIN
- 4052568223946
- Festo type code
- VUVS-L20-P53U-MD-G18-F7-1C1
- Festo order number
- 575267
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Spring
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 6.4316 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 575267
