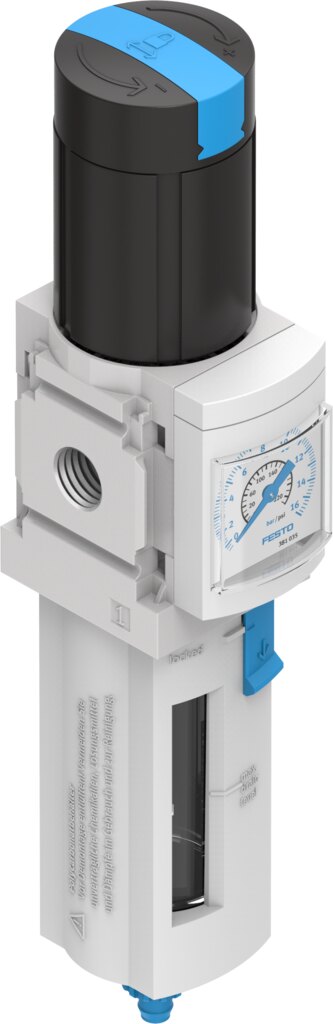

Festo MS4-LFR Filter regulator manual - 1/4", 40MY, MS4-LFR-1/4-D6-ERM-AS
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MS4-LFR Filter regulator manual. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1/4", filter element 40 My, supplier type designation MS4-LFR-1/4-D6-ERM-AS. Supplied under manufacturer part number 529148, EAN 4052568084844, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- 4
- Series
- MS
- Actuator lock
- Rotary knob with detent; can be closed with accessories
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 40 µm
- Condensate drain
- Manual, rotating
- Design
- Filter regulator with pressure gauge
- Max. condensate volume
- 19 ml
- Controller function
- Output pressure constant; With secondary exhausting; With return flow function
- Bowl guard
- Plastic bowl guard
- Degree of condensate separation
- 75 %
- Symbol
- 00991589
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.08 ... 1.4 MPa (0.8 ... 14 bar)
- Pressure regulation range
- 0.3 ... 7 bar
- Max. pressure hysteresis
- 0.25 bar
- Standard nominal flow rate (standardised to DIN 1343)
- 1700 l/min
- Operating medium
- Inert gas
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -10 ... 60 °C
- Suitable for use with food
- See supplementary material information
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Pore size
- 40 µm
- Product weight
- 275 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Material sub-base
- Die-cast aluminium
- Material control panel
- PA; POM
- Material seals
- NBR
- Material filter
- Packaging unit
- Material housing
- Die-cast aluminium
- Material membrane
- NBR
- Material bowl
- Makrolon®
- Material separating plate
- POM
- EAN / GTIN
- 4052568084844
- Festo type code
- MS4-LFR-1/4-D6-ERM-AS
- Festo order number
- 529148
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/4"
- Filter element
- 40 My
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 4.9143 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
- Manufacturer part number
- 529148
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568084844
- MPN 529148
