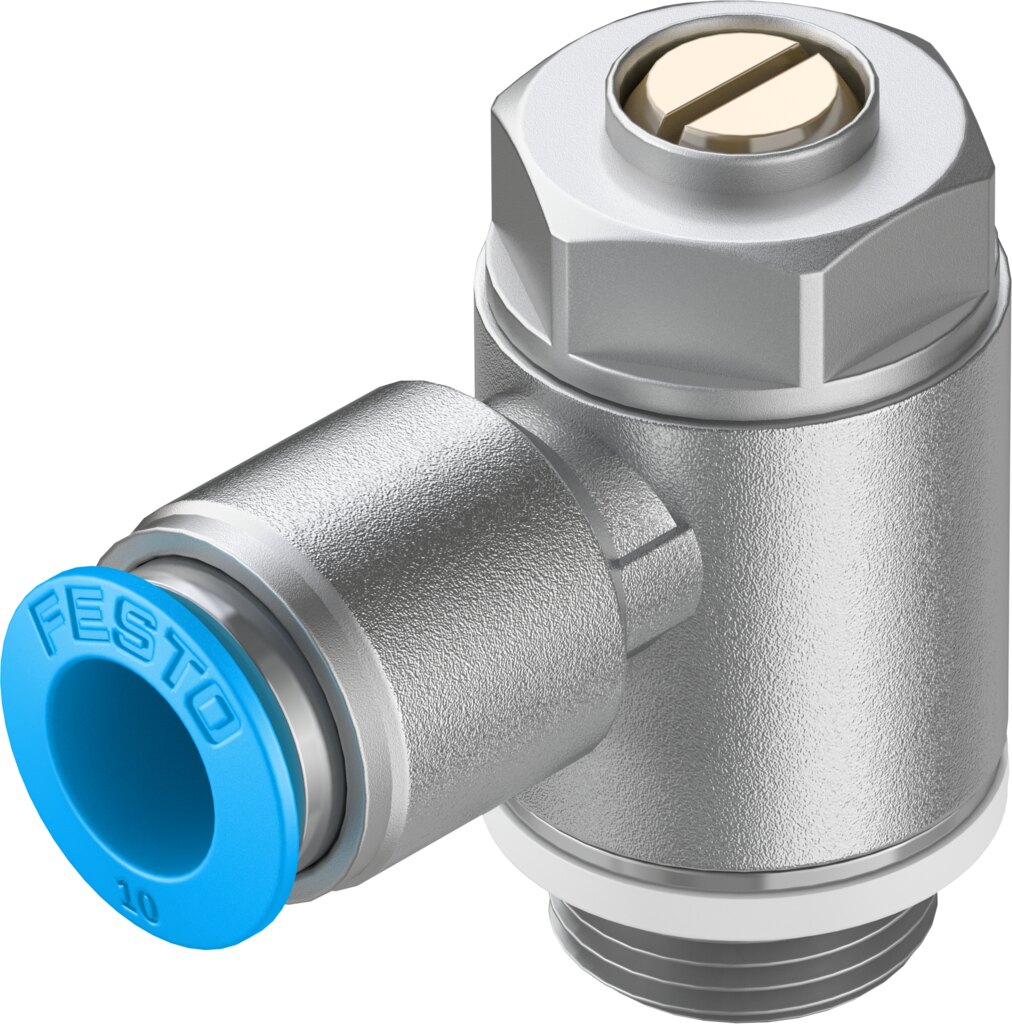

Festo GRLA Throttle check valve - 3/8", 10mm, GRLA-3/8-QS-10-D
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo GRLA Throttle check valve. Pneumatic flow valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread 3/8", outer hose diameter 10 mm, supplier type designation GRLA-3/8-QS-10-D. Supplied under manufacturer part number 193151, EAN 4052568015107, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- Exhaust air one-way flow control function
- Pneumatic connection, port 1
- QS-10
- Pneumatic connection, port 2
- G3/8
- Adjustment component
- Slotted head screw
- Type of mounting
- Screw-in; With male thread
- Standard nominal flow rate in flow control direction
- 900 l/min
- Standard nominal flow rate in blocked direction
- 540 ... 975 l/min
- Operating pressure
- 0.02 ... 1 MPa (0.2 ... 10 bar) (2.9 ... 145 psi)
- Ambient temperature
- -10 ... 60 °C
- Maritime classification
- See certificate
- Mounting position
- Any
- Symbol
- 00991452
- Operating pressure complete temperature range
- 0.2 ... 10 bar
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Media temperature
- -10 ... 60 °C
- Nominal torque
- 13 Nm
- Tolerance for nominal tightening torque
- ±20%
- Product weight
- 60 g
- Material seals
- NBR
- Material hollow bolt
- Wrought aluminium alloy; anodised
- Material release ring
- POM
- Material adjusting screw
- Brass
- Material swivel fitting
- Die-cast zinc
- EAN / GTIN
- 4052568015107
- Festo type code
- GRLA-3/8-QS-10-D
- Festo order number
- 193151
- Product type
- Pneumatic flow valves
- Product group
- Pneumatics
- Thread
- 3/8"
- Outer hose diameter
- 10 mm
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 0.6267 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 193151
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568015107
- MPN 193151
Product Documentation
More from Festo
Festo
Festo DGSL Mini Slide - G1/8, DGSL-25-80-EA
570209
Festo
Festo NPQR-H Bulkhead Connection stainless steel - 10mm, 10mm, NPQR-H-Q10-E
8085732
Festo
Festo ADVU Compact cylinder - 125mm, G1/4, 40mm, ADVU-125-40-A-P-A
175767
Festo
Festo ADVU Compact cylinder - 16mm, M5, 40mm, ADVU-16-40-P-A
156513
Festo
Festo AEVUZ Compact cylinder - 25mm, M5, 15mm, AEVUZ-25-15-P-A
157223
Festo
Festo DFM Guide Cylinder - 20mm, M5, 30mm, DFM-20-30-B-PPV-A-KF
609348
Festo
Festo ADN Compact cylinder double-acting - 32mm, 8mm, 1/8, 5mm, ADN-32-5-I-P-A
536278
Festo
Festo VUVG-S10 Solenoid Valve - El, Spring, VUVG-S10-T32H-AZT-M5-1T1L
573388
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 193151?
- 193151 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 193151.
- What is the HS code for 193151?
- The customs tariff (HS) code for 193151 is 8481.20.
- Who manufactures 193151?
- 193151 is a Festo product in the Pneumatics range.
- Is a datasheet available for 193151?
- Yes — the 193151 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 193151?
- The minimum order quantity is 1.
- Is 193151 available?
- Yes — 193151 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
