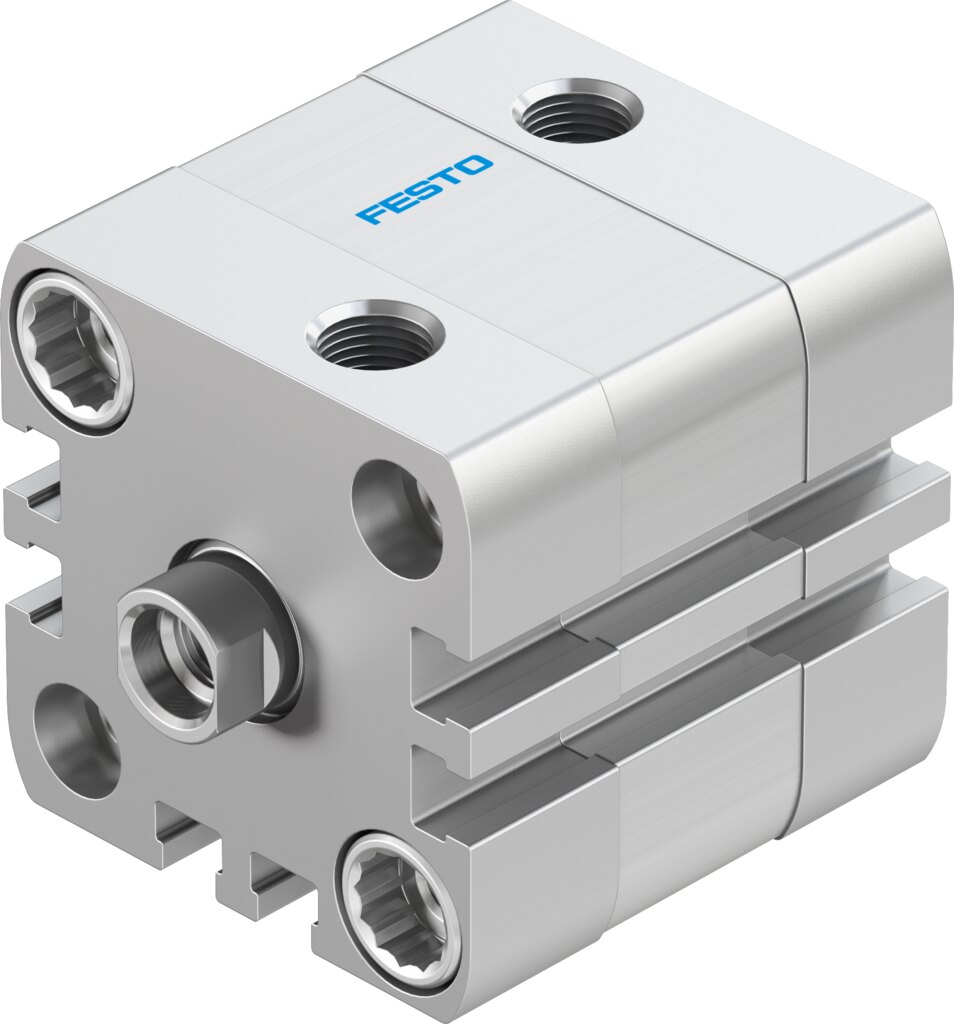

Festo ADN Compact cylinder double-acting - 32mm, 8mm, 1/8, 5mm, ADN-32-5-I-P-A

Festo ADN Compact cylinder double-acting. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 32 mm, piston diameter 8 mm, port size 1/8, stroke rate 5 mm. Supplied under manufacturer part number 536278, EAN 4052568087791, HS code 8412.31, country of origin Germany.

Stroke

5 mm

Piston diameter

32 mm

Piston rod thread

M8

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Conforms to standard

ISO 21287

Piston-rod end

Female thread

Position detection

Via proximity switch

Symbol

00991217

Variants

Piston rod at one end

Operating pressure

0.06 ... 1 MPa (0.6 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.4 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke

415 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

483 N

Moving mass

55 g

Product weight

254 g

Type of mounting

With through-hole; With female thread; With accessories

Pneumatic connection

G1/8

Material collar screws

Steel

Material cover

Anodised wrought aluminium alloy

Material seals

TPE-U(PUR)

Material piston rod

High-alloy steel

Material cylinder barrel

Smooth-anodised wrought aluminium alloy

EAN / GTIN

4052568087791

Festo type code

ADN-32-5-I-P-A

Festo order number

536278

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

1/8

Temperature max

80 °C

Temperature min

-20 °C

Working pressure min

0.6 bar

Working pressure max

10 bar

Carbon footprint (EPD)

4.3389 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

Manufacturer part number

536278

HS Code

8412.31

• EAN 4052568087791
• MPN 536278
