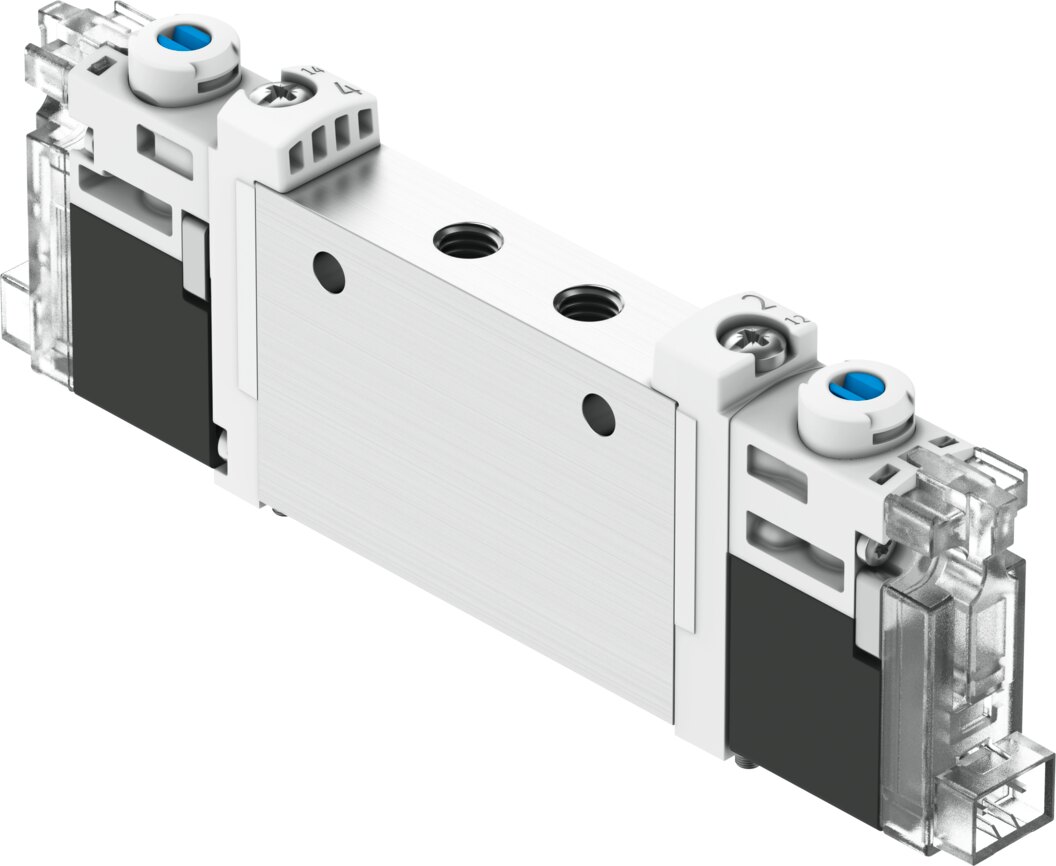

Festo VUVG-L10 Solenoid Valve Vented midterstilling 5/3 24V DC - M5", El, Mechanical spring, VUVG-L10-P53E-T-M5-1H2L-F1A

Festo VUVG-L10 Solenoid Valve Vented midterstilling 5/3 24V DC. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread M5", activation El, return Mechanical spring, supplier type designation VUVG-L10-P53E-T-M5-1H2L-F1A. Supplied under manufacturer part number 8164329, EAN 4052568611897, HS code 8481.20, country of origin China.

Valve function

5/3 exhausted Type of actuation: Electrical Valve size: 10 mm Standard nominal flow rate (standardised to DIN 1343): 210 l/min pneumatic working port: M5 Operating voltage: 24 V DC Operating pressure: 0.3 ... 0.8 MPa (3 ... 8 bar) Design: Piston gate valve Type of reset: Mechanical spring Approval: RCM; c UL us - Recognised (Oil) Certificate issuing authority: UL MH19482 Degree of protection: IP40 Nominal size: 3.2 mm Exhaust-air function: Can be throttled Sealing principle: Soft Mounting position: Any Manual override: Detenting; Non-detenting; Concealed Type of piloting: Piloted Pilot air supply: Internal Symbol: 00992894 lap: Indeterminate overlap Pilot pressure: 0.3 ... 0.8 MPa (3 ... 8 bar) Suitability for vacuum: No Switching time off: 36 ms Switching time on: 14 ms Switching time reversal: 19 ms Duty cycle: 100% Max. positive test pulse with 0 signal: 700 µs Max. negative test pulse with 1 signal: 900 µs Characteristic coil data: 24 V DC: 0.8 W Permissible voltage fluctuations: +/-10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Restrictions for environmental and media temperature: -5 - 50 °C; Without holding current reduction Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 LABS (PWIS) conformity: VDMA24364 zone III Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a) Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1 Storage temperature: -20 ... 60 °C Media temperature: -5 ... 50 °C Ambient temperature: -5 ... 50 °C Product weight: 55 g Electrical connection: Plug Type of mounting: On manifold rail; With through-hole Pneumatic connection, port 1: M5 Pneumatic connection, port 2: M5 Pneumatic connection, port 3: M5 Pneumatic connection, port 4: M5 Pneumatic connection, port 5: M5 material seals: HNBR; NBR material housing: Wrought aluminium alloy material screws: Coated steel EAN / GTIN: 4052568611897 Festo type code: VUVG-L10-P53E-T-M5-1H2L-F1A Festo order number: 8164329 Product type: Pneumatic solenoid valves Product group: Pneumatics Thread: M5" Activation: El Return: mechanical spring Carbon footprint (EPD): 1.1109 kg CO2e per pcs Country of origin: China Customs tariff code (EU CN): 84812090 HS code: 8481.20 Manufacturer part number: 8164329

HS Code

8481.20

• EAN 4052568611897
• MPN 8164329
