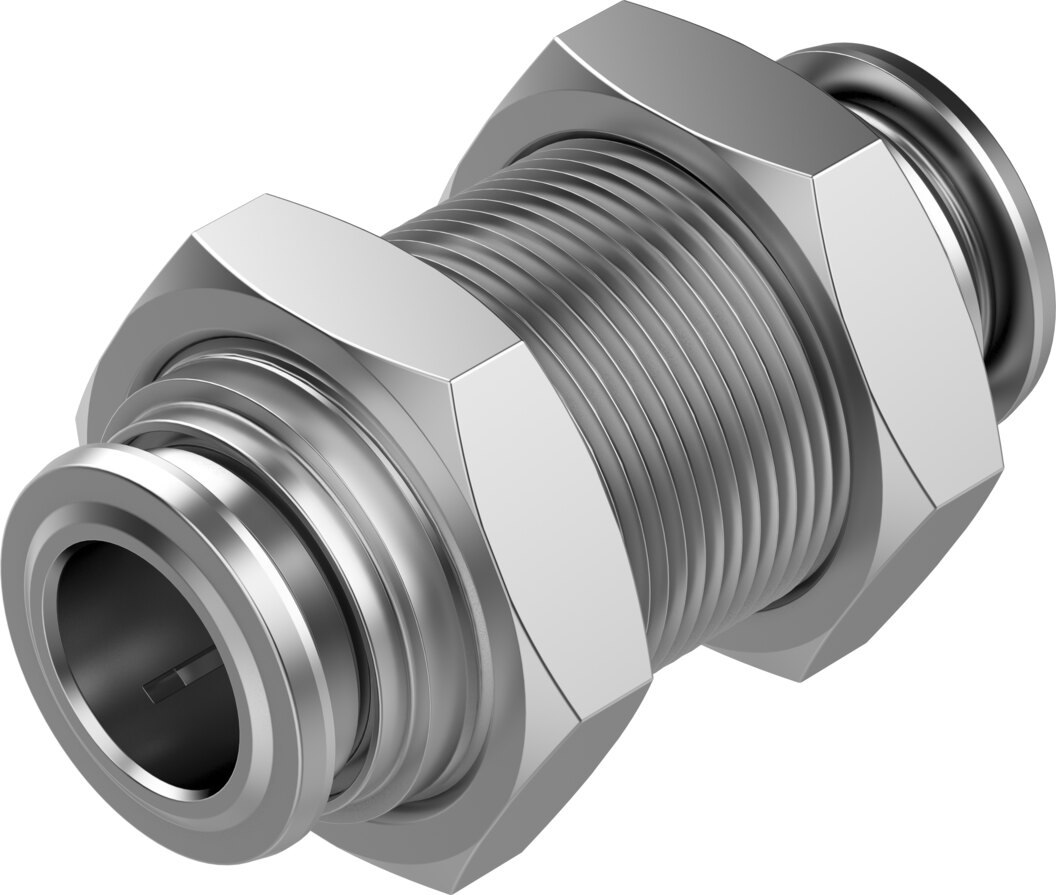

Festo NPQR-H Bulkhead Connection stainless steel - 10mm, 10mm, NPQR-H-Q10-E
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo NPQR-H Bulkhead Connection stainless steel. Collectors Push-in (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 10 mm, outer hose diameter 2 10 mm, supplier type designation NPQR-H-Q10-E. Supplied under manufacturer part number 8085732, EAN 4052568455101, HS code 7307.29, country of origin Italy.
Technical Specifications
- Size
- Standard
- Nominal size
- 9 mm
- Tubing insertion depth
- 19.55 mm
- Mounting position
- Any
- Design
- Bulkhead (Push-pull principle)
- Size of pack
- 1
- Symbol
- 00997424
- Operating pressure complete temperature range
- -0.095 ... 1.6 MPa (-0.95 ... 16 bar) (-13.775 ... 232 psi)
- Note on operating pressure
- Water: max. 0.7 MPa at 0 - 80 °C
- Certificate issuing authority
- NSF C0556009
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)
- Note on operating and pilot medium
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Class 4 according to ISO 14644-1
- Suitable for use with food
- See declaration of conformity; NSF/ANSI 169
- Ambient temperature
- -20 ... 150 °C
- Min. tightening torque
- 15 Nm
- Max. tightening torque
- 20 Nm
- Product weight
- 66.8 g
- Pneumatic connection, port 1
- For tubing outer diameter of 10 mm
- Pneumatic connection, port 2
- For tubing outside diameter of 10 mm
- Colour of release ring
- Silver
- Material housing
- High-alloy stainless steel
- Guard ring material
- High-alloy stainless steel
- Material release ring
- High-alloy stainless steel
- Material nut
- High-alloy stainless steel
- Material tubing seal
- Fluoro rubber
- Material tubing clamp component
- High-alloy stainless steel
- Thrust ring material
- PPSU
- EAN / GTIN
- 4052568455101
- Festo type code
- NPQR-H-Q10-E
- Festo order number
- 8085732
- Product type
- Collectors Push-in
- Product group
- Pneumatics
- Outer hose diameter
- 10 mm
- Carbon footprint (EPD)
- 1.1881 kg CO2e per pcs
- Country of origin
- Italy
- Customs tariff code (EU CN)
- 73072980
- HS code
- 7307.29
- Manufacturer part number
- 8085732
