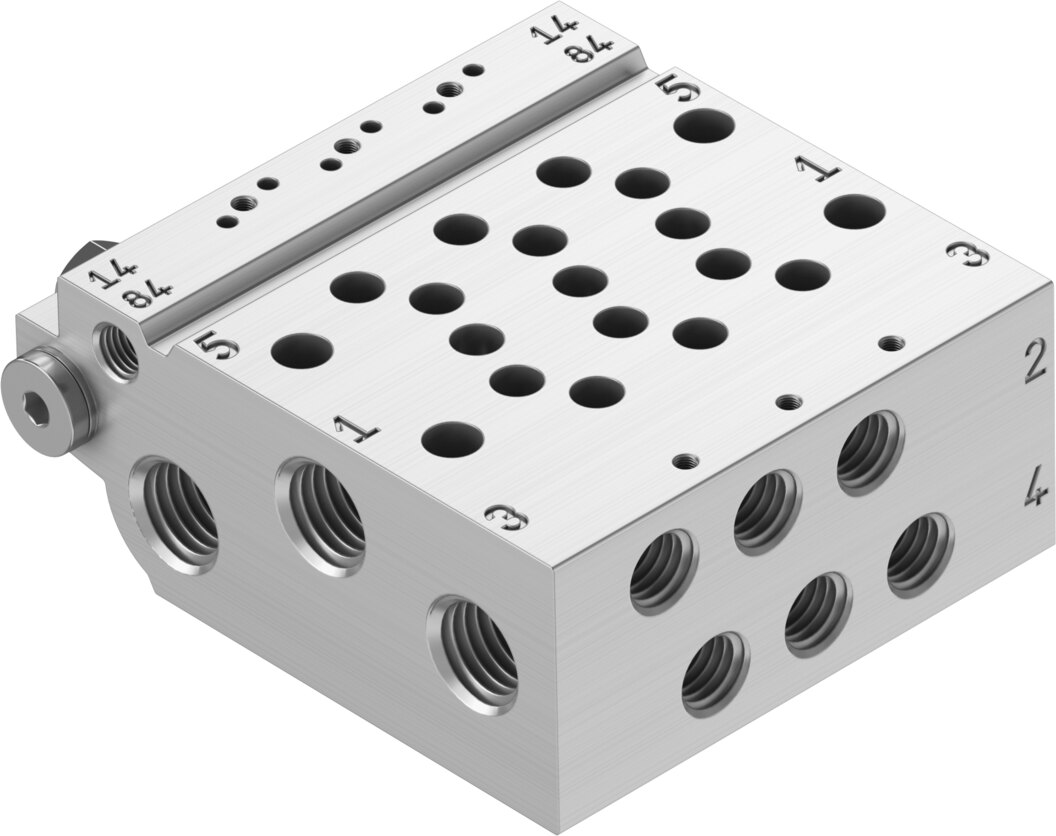

Festo VABM-L1 Connection strip - 1/8", B10/M7, VABM-L1-10HW-G18-3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VABM-L1 Connection strip. Pneumatic ISO accessories (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread 1/8", size B10/M7, supplier type designation VABM-L1-10HW-G18-3. Supplied under manufacturer part number 566607, EAN 4052568100483, HS code 8481.90, country of origin Germany.
Technical Specifications
- Grid dimension
- 10.5 mm
- Max. number of valve positions
- 16
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Approval
- RCM; c UL us - Recognised (Oil)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Max. tightening torque H-rail mounting
- 1.5 Nm
- Max. tightening torque for valve mounting
- 0.45 Nm
- Max. tightening torque wall mounting
- 3 Nm
- Product weight
- 135 g
- Pilot air port 12/14
- M5
- Pilot exhaust port 82/84
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- M7
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- M7
- Pneumatic connection, port 5
- G1/8
- Material manifold rail
- Wrought aluminium alloy
- EAN / GTIN
- 4052568100483
- Festo type code
- VABM-L1-10HW-G18-3
- Festo order number
- 566607
- Product type
- Pneumatic ISO accessories
- Product group
- Pneumatics
- Thread
- 1/8"
- Size
- B10/M7
- Working pressure
- 10 bar
- Carbon footprint (EPD)
- 4.7849 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
- Manufacturer part number
- 566607
Standards & Compliance
- HS Code
- 8481.90
Cross References
- EAN 4052568100483
- MPN 566607
