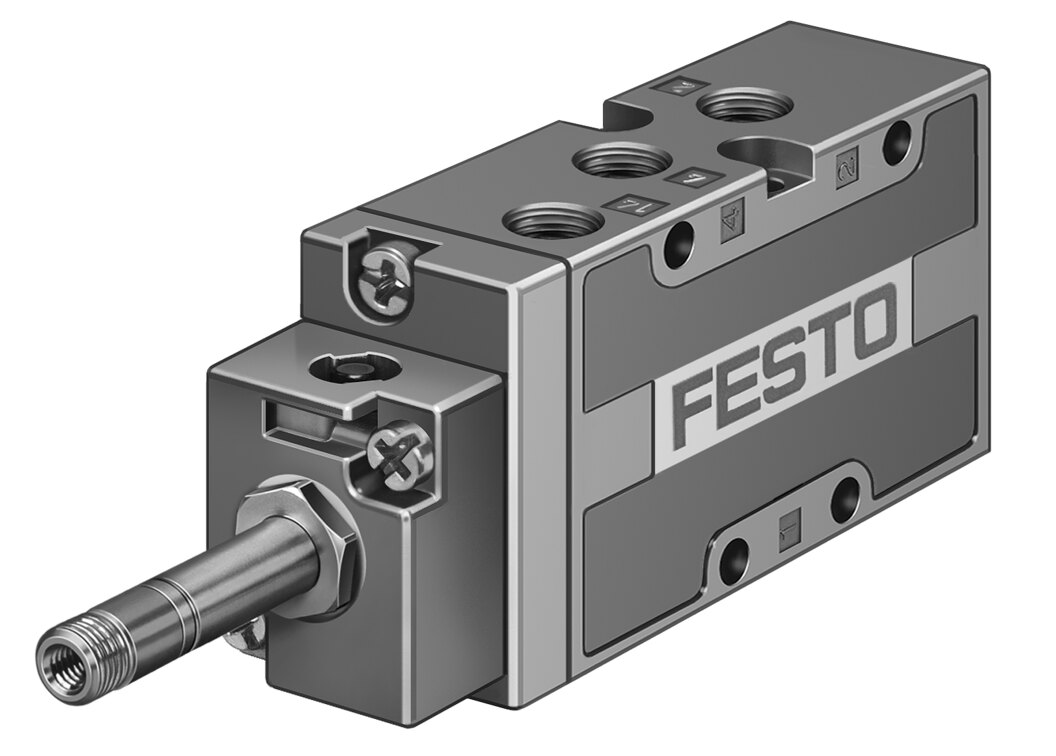

Festo MFH-5-1/8-B Solenoid valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MFH-5-1/8-B — Solenoid valve, valves and valve terminals. valve function 5/2-way, single solenoid; operating pressure 0.2. 1 MPa (2. 10 bar); nominal size 5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 19758
- Type code
- MFH-5-1/8-B
- EAN / GTIN
- 4052568003630
- Product category
- Valves and valve terminals
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 750 l/min
- pneumatic working port
- G1/8
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Design
- Poppet seat
- Type of reset
- Mechanical spring
- Nominal size
- 5 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Flow direction
- Non-reversible
- Symbol
- 00991035
- lap
- Underlap
- b value
- 0.34
- C value
- 3 l/sbar
- Max. switching frequency
- 3 Hz
- Switching time off
- 30 ms
- Switching time on
- 10 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 220 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On PR rail, with through-hole
- Pilot exhaust port 84
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 3.0713 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568003630
- MPN 19758
Product Documentation
More from Festo
Festo

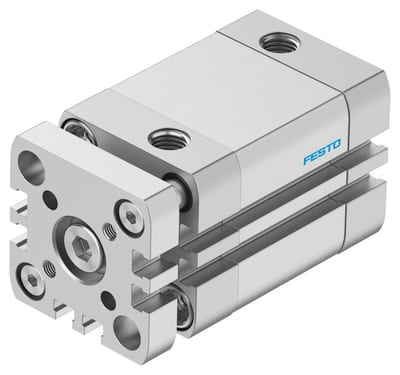

Festo ADNGF-32-25-P-A Compact cylinder
554242
Festo
Festo YSRF-S-12-C Mounting flange
4052568115494
Festo
Festo FRC-1/2-D-5M-MIDI-A Service unit
162782
Festo

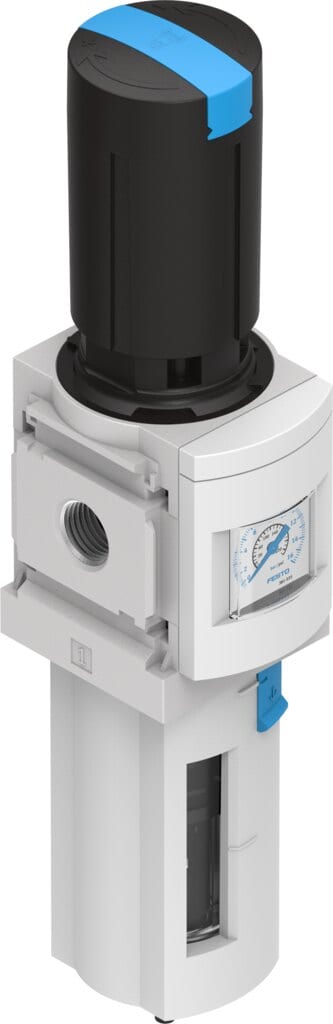

Festo MS6-LFR-1/2-D7-CRV-AS Filter regulator
529186
Festo

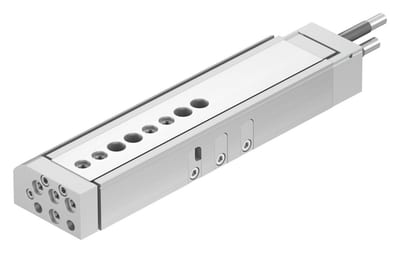

Festo DGSL-8-80-Y3A Mini slide
543941
Festo

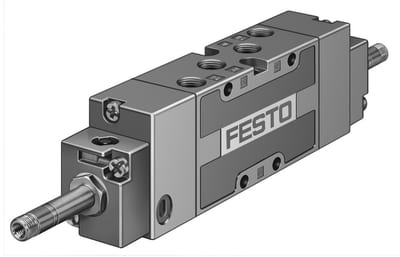

Festo MFH-5/3G-1/8-S-B-EX Solenoid valve
535939
Festo
Festo LFR-1/4-D-MIDI-A Filter regulator
186484
Festo

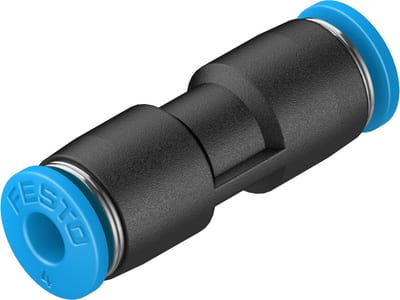

Festo QS-4-100 Push-in connector
