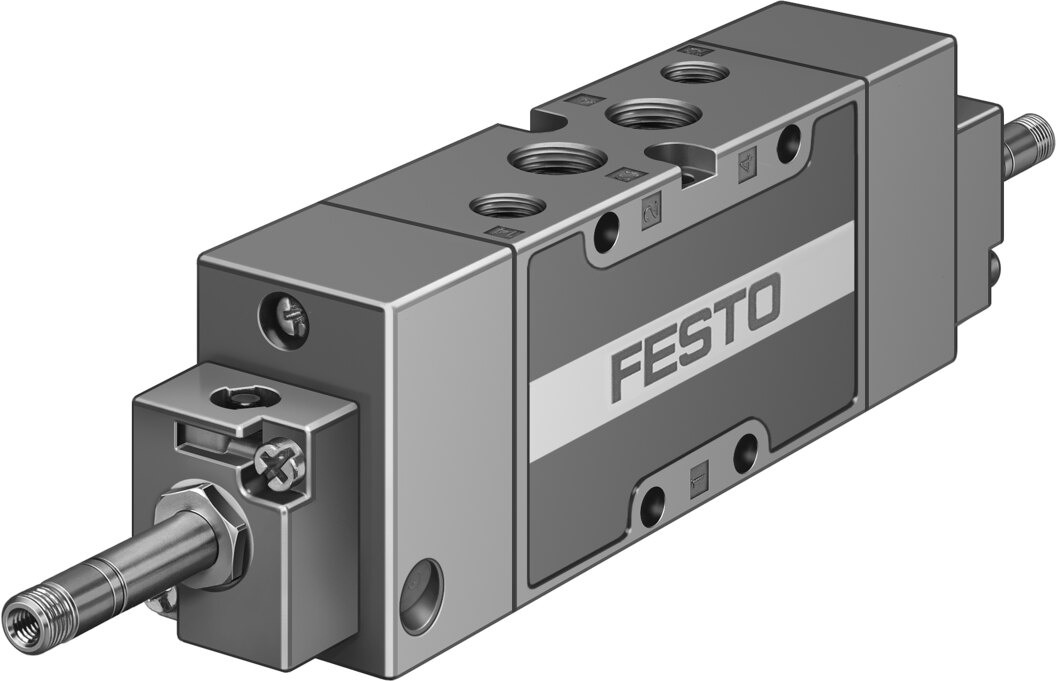

Festo MFH Solenoid Valve - G1/4", El, Spring, MFH-5/3E-1/4-S-B
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo MFH Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/4", activation El, return Spring, supplier type designation MFH-5/3E-1/4-S-B. Supplied under manufacturer part number 31002, EAN 4052568114374, HS code 8481.20, country of origin China.
Technical Specifications
- Valve function
- 5/3 exhausted
- Type of actuation
- Electrical
- Construction width
- 32 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1600 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Nominal size
- 10 mm
- Grid dimension
- 33 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Reversible
- Symbol
- 00991032
- lap
- Overlap
- Pilot pressure
- 0.3 ... 1 MPa (3 ... 10 bar)
- b value
- 0.38
- C value
- 6.35 l/sbar
- Max. switching frequency
- 3 Hz
- Switching time off
- 32 ms
- Switching time on
- 23 ms
- Switching time reversal
- 35 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -40 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 500 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On PR rail; With through-hole
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- G1/8
- Pilot air port 14
- G1/8
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Pneumatic connection, port 4
- G1/4
- Pneumatic connection, port 5
- G1/4
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- EAN / GTIN
- 4052568114374
- Festo type code
- MFH-5/3E-1/4-S-B
- Festo order number
- 31002
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 9.8348 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 31002
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568114374
- MPN 31002
Product Documentation
More from Festo
Festo
Festo VUVS-L25 Solenoid Valve 3/2 24V DC - G1/4", El, Spring, VUVS-L25-M32U-AZD-G14-F8-1C1
575491
Festo
Festo AEVC Short stroke cylinder - 80mm, G1/8, 25mm, AEVC-80-25-A-P
188307
Festo
Festo VSCS-B Solenoid Valve closed monostable 3/2 - El, Mechanical spring, VSCS-B-M32-MH-WA-1R3-8
8040569
Festo
Festo FRC Service Unit Maxi automatic - 1", 0,5 - 12bar, 5MY, FRC-1-D-5M-MAXI-A
162785
Festo
Festo J Pneumatic valve - G1/8", Air, Air, J-5-1/8-B-EX
536043
Festo
Festo PUN-H Compressed Air Hose polyurethane natural - 10mm, 7mm, 300M, PUN-H-10X1,5-NT-300
558267
Festo
Festo AEVU Compact cylinder - 16mm, M5, 20mm, AEVU-16-20-A-P-A
156984
Festo

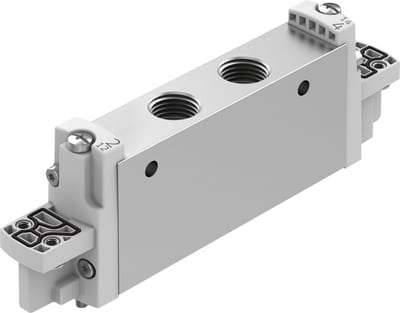

Festo VUVG-L18 Solenoid Valve tryksat midterstilling 5/3 - G1/4", El, Mechanical spring, VUVG-L18-P53U-G14-P1
