Festo LFR-1/2-D-MAXI-KF Service unit combination
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFR-1/2-D-MAXI-KF — Service unit combination, compressed air preparation. operating pressure 0.1. 1.6 MPa (1. 16 bar; 14.5. 232 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 186049
- Type code
- LFR-1/2-D-MAXI-KF
- EAN / GTIN
- 4052568146474
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 40 µm
- Condensate drain
- Manual, rotating
- Design
- Branching module, Pressure switch, On/off valve, Filter regulator with pressure gauge
- Max. condensate volume
- 80 ml
- Bowl guard
- Metal bowl guard
- Symbol
- 00991757
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.1 ... 1.6 MPa (1 ... 16 bar; 14.5 ... 232 psi)
- Pressure regulation range
- 0.05 ... 1.2 MPa (0.5 ... 12 bar; 7.25 ... 174 psi)
- Max. pressure hysteresis
- 0.02 MPa (0.2 bar; 2.9 psi)
- Standard nominal flow rate (standardised to DIN 1343)
- 8000 l/min
- Operating medium
- Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [7:8:4], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 3300 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Press Area
- 0.5 to 12 bar
- Filter element
- 40 My
- Carbon footprint (EPD)
- 24.5053 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568146474
- MPN 186049
Product Documentation
More from Festo
Festo
Festo AEVC Short stroke cylinder - 32mm, G1/8, 5mm, AEVC-32-5-I-P-A
188192
Festo
Festo VUVG-L10-M52-MZT-M7-1P3 Solenoid valve
574363
Festo
Festo CPE24-M3H-5/3G-QS-12 Solenoid valve
4052568138851
Festo
Festo VABM-B10-20-G38-2-P53 Common supply manifold
576363
Festo

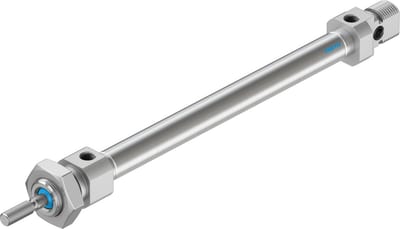

Festo DSNU-8-80-P-A ISO cylinder
19181
Festo

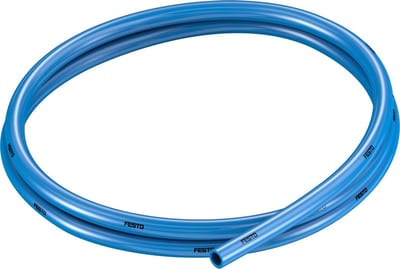

Festo PUN-8X1,25-Bl Plastic tubing
159666
Festo
Festo CPV10-M1H-3OLS-3GLS-M7-B-EX Solenoid valve
550699
Festo

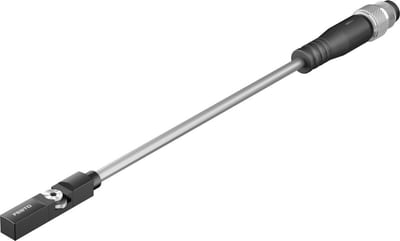

Festo CRSMT-8M-PS-24V-K-0,3-M8D-EX2 Proximity sensor
