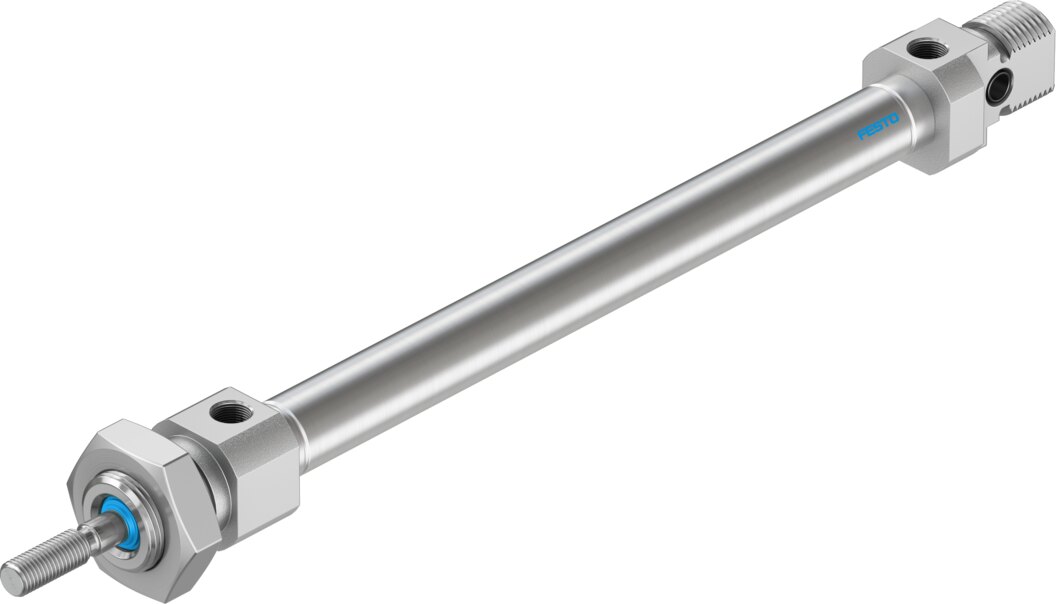

Festo DSNU-8-80-P-A ISO cylinder

Festo DSNU-8-80-P-A — ISO cylinder, round cylinders. stroke 80 mm; piston diameter 8 mm; operating pressure 0.15. 1 MPa (1.5. 10 bar).

Manufacturer part number (MPN)

19181

Type code

DSNU-8-80-P-A

EAN / GTIN

4052568066932

Product category

Round cylinders

Stroke

80 mm

Piston diameter

8 mm

Piston rod thread

M4

Cushioning

Elastic cushioning rings/plates at both ends

Mounting position

Any

Conforms to standard

ISO 6432

Piston-rod end

Male thread

Design

Piston, Piston rod, Cylinder barrel

Position detection

Via proximity switch

Symbol

00991217

Variants

Piston rod at one end

Operating pressure

0.15 ... 1 MPa (1.5 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 6 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

0.03 J

Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok

22.6 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro

30.2 N

Moving mass for 0 mm stroke

7.5 g

Additional moving mass per 10 mm stroke

1 g

Basic weight for 0 mm stroke

34.6 g

Additional weight per 10 mm stroke

2.4 g

Type of mounting

With accessories

Pneumatic connection

M5

Material cover

Wrought aluminium alloy, Colourless anodised

Material seals

NBR, TPE-U(PU)

Material piston rod

High-alloy stainless steel

Material cylinder barrel

High-alloy stainless steel

Product type

Pneumatic ISO Air Cylinder

Product group

Pneumatics

Port Size

M5"

Carbon footprint (EPD)

0.7020 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

HS Code

8412.31

• EAN 4052568066932
• MPN 19181
