Festo CPE18-M1H-3OLS-1/4 Solenoid valve
Part number163144EAN / GTIN4052568133092HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE18-M1H-3OLS-1/4 — Solenoid valve, valves and valve terminals. valve function 3/2-way, single solenoid, open; operating pressure -0.09. 1 MPa (-0.9. 10 bar); nominal size 8 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 163144
- Type code
- CPE18-M1H-3OLS-1/4
- EAN / GTIN
- 4052568133092
- Product category
- Valves and valve terminals
- Valve function
- 3/2-way, single solenoid, open
- Type of actuation
- Electrical
- Construction width
- 18 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 1700 l/min
- pneumatic working port
- G1/4
- Operating voltage
- 24 V DC
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Pneumatic spring
- Approval
- c UL us - Recognised (Oil)
- Maritime classification
- See certificate
- Certificate issuing authority
- UL MH19482
- Degree of protection
- IP65, with plug socket, To IEC 60529
- Nominal size
- 8 mm
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting via accessory, Non-detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Non-reversible
- Symbol
- 00991402
- Valve position code
- Label holder
- lap
- Overlap
- Pilot pressure
- 0.25 ... 1 MPa (2.5 ... 10 bar)
- Switching time off
- 18 ms
- Switching time on
- 28 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 3300 µs
- Max. negative test pulse with 1 signal
- 3100 µs
- Characteristic coil data
- 24 V DC: 1.5 W
- Permissible voltage fluctuations
- -15% / +10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 50 °C
- Product weight
- 150 g
- Electrical connection
- Type C
- Type of mounting
- With through-hole
- Pilot exhaust port 82
- M5
- Pilot air port 12
- M5
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Material seals
- NBR
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/4"
- Activation
- El
- Return
- Spring
- Carbon footprint (EPD)
- 3.1145 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568133092
- MPN 163144
Product Documentation
Document preview: CPE18-M1H-3OLS-1/4 — Festo product documentation
More from Festo
Festo

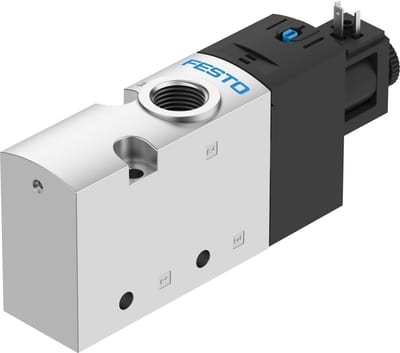

Festo VUVS-L30-M32U-MZD-G38-F8-1C1 Solenoid valve
575586
Festo

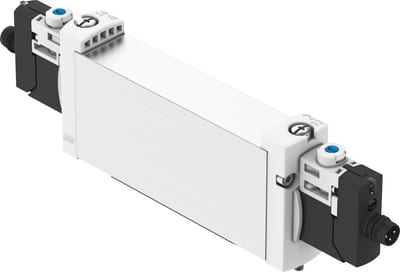

Festo VUVG-B18-P53U-ZT-F-1R8L Solenoid valve
8031548
Festo
Festo ADVUL-12-5-P-A Compact cylinder
156844
Festo

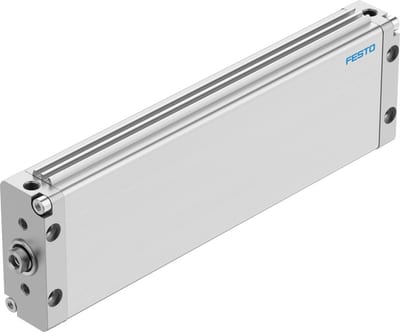

Festo DZF-63-320-P-A Flat cylinder
164091
Festo

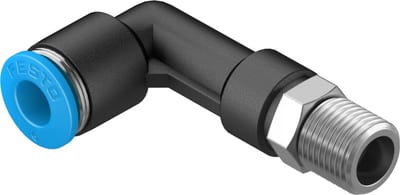

Festo QSLL-1/8-6 Push-in L-fitting, long
153077
Festo

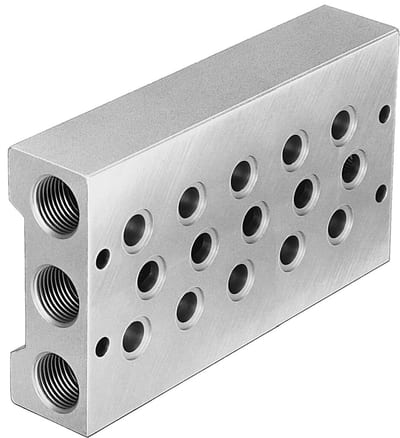

Festo PRS-1/4-5 Manifold block
10188
Festo

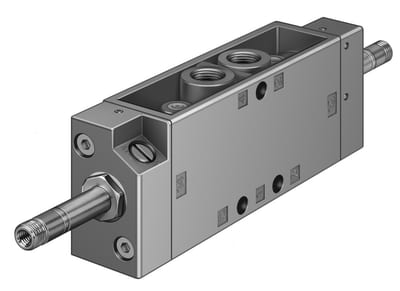

Festo JMFH-5-1/8-S-EX Solenoid valve
535915
Festo

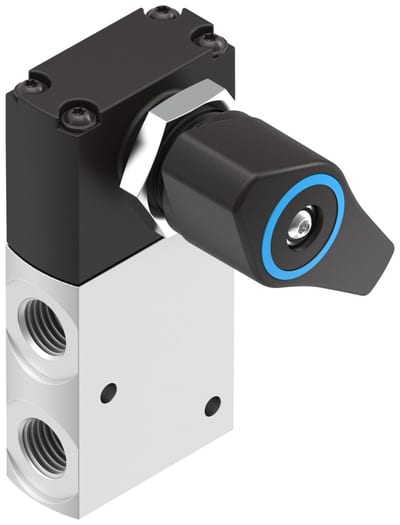

Festo VHEF-EST-B32-G14 Selector valve
