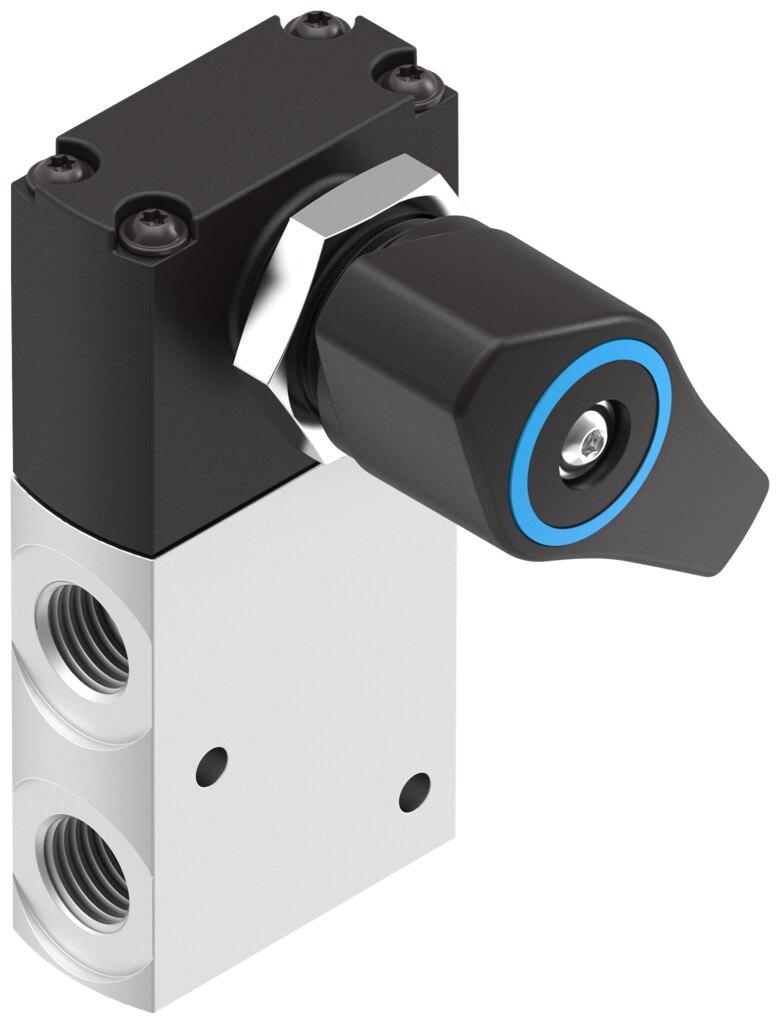

Festo VHEF-EST-B32-G14 Selector valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VHEF-EST-B32-G14 — Selector valve, mechanically & hand operated pneumatic valves. valve function 3/2-way, double solenoid; operating pressure -0.095. 1 MPa (-0.95. 10 bar); nominal size 6 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 4106815
- Type code
- VHEF-EST-B32-G14
- EAN / GTIN
- 4052568291303
- Product category
- Mechanically & hand operated pneumatic valves
- Valve function
- 3/2-way, double solenoid
- Type of actuation
- Manual
- Construction width
- 20 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 870 l/min
- pneumatic working port
- G1/4
- Operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar)
- Design
- Poppet seat
- Nominal size
- 6 mm
- Exhaust-air function
- Can be throttled
- Instructions on use
- Actuate manually only
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Direct
- Flow direction
- Reversible
- Symbol
- 00995892
- lap
- Zero lap
- Max. switching frequency
- 0.5 Hz
- Explosion protection
- Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Actuating torque
- 0.4 Nm
- Max. force on actuation
- 200 N
- Max. lateral force on actuation
- 200 N
- Product weight
- 200 g
- Type of mounting
- With through-hole
- Pneumatic connection, port 1
- G1/4
- Pneumatic connection, port 2
- G1/4
- Pneumatic connection, port 3
- G1/4
- Material cover
- Reinforced PA
- Material seals
- NBR
- Material housing
- Anodised wrought aluminium alloy
- Material lever
- Reinforced PA
- Product type
- Pneumatic Valve Manual
- Product group
- Pneumatics
- Return
- Rotary knob
- Activation
- Rotary knob
- Thread
- 1/4"
- Working pressure
- 10 bar
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 1.7402 kg CO2e per pcs
- Country of origin
- Brazil
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568291303
- MPN 4106815
Product Documentation
More from Festo
Festo
Festo NPFC-T-3R38-M T-fitting
8030253
Festo
Festo DGSL-20-10-PA Mini slide
544005
Festo
Festo FRC-1/8-D-5M-MINI-A Service unit
162778
Festo
Festo LR-3/8-D-I-MINI Pressure regulator
192302
Festo
Festo ADVC Short stroke cylinder - 25mm, M5, 5mm, ADVC-25-5-I-P-A
188172
Festo
Festo JH-5-1/2 Pneumatic valve
10165
Festo
Festo DGSL-25-10-PA Mini slide
544030
Festo

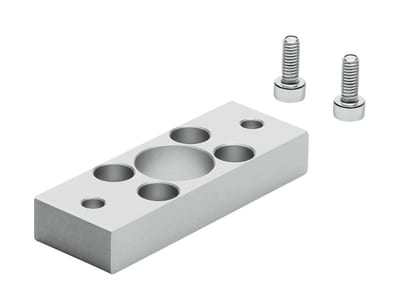

Festo FZS-25 Flange mounting
