Festo

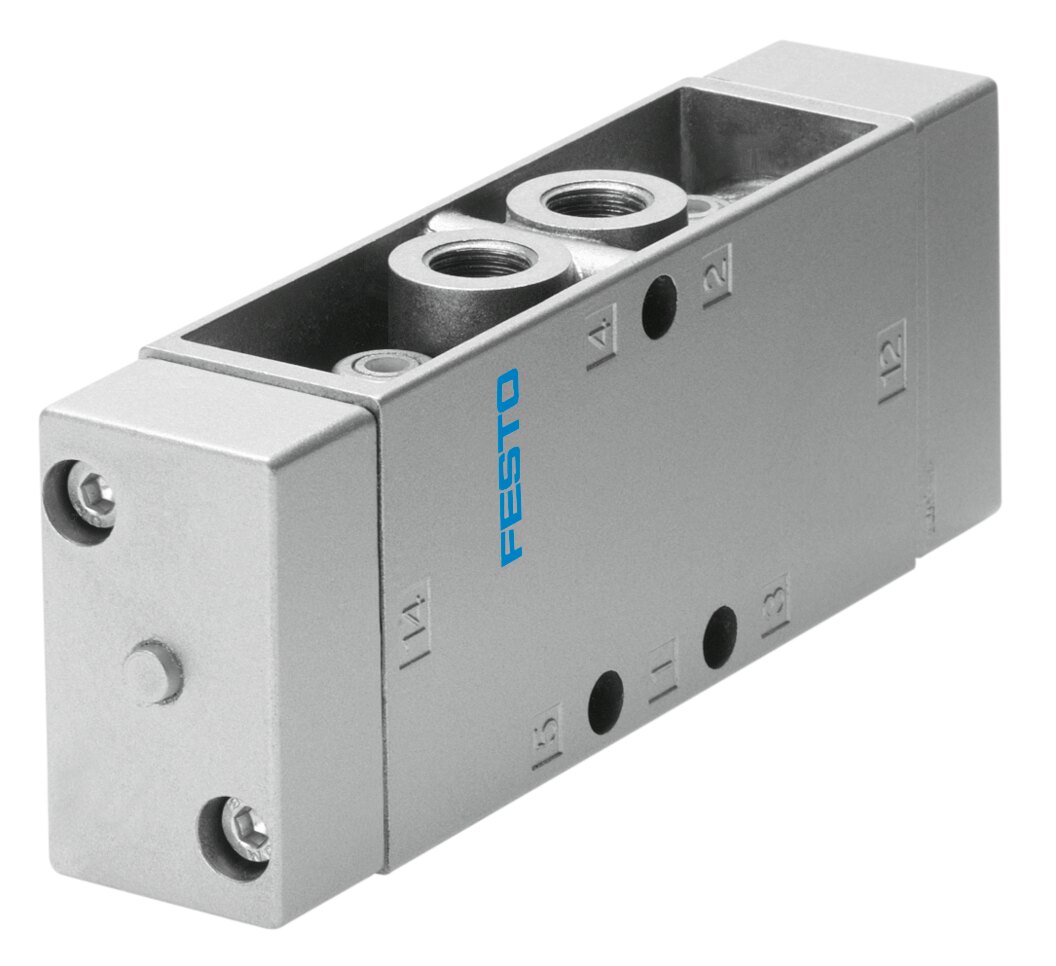

Festo JH-5-1/2 Pneumatic valve
Part number10165EAN / GTIN4052568111663HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JH-5-1/2 — Pneumatic valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure 0. 1 MPa (0. 10 bar); nominal size 14 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 10165
- Type code
- JH-5-1/2
- EAN / GTIN
- 4052568111663
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Pneumatic
- Construction width
- 52 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 4500 l/min
- pneumatic working port
- G1/2
- Operating pressure
- 0 ... 1 MPa (0 ... 10 bar)
- Design
- Poppet seat
- Nominal size
- 14 mm
- Grid dimension
- 69 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Direct
- Pilot air supply
- External
- Flow direction
- Non-reversible
- Symbol
- 00995757
- lap
- Underlap
- Pilot pressure
- 0.12 ... 1 MPa (1.2 ... 10 bar)
- b value
- 0.3
- Max. switching frequency
- 12 Hz
- Switching time reversal
- 3 ms
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -10 ... 60 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 1130 g
- Type of mounting
- On manifold rail, with through-hole
- Auxiliary pilot air port 12
- G1/4
- Auxiliary pilot air port 14
- G1/4
- Pilot air port 12
- G1/4
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Pneumatic connection, port 3
- G1/2
- Pneumatic connection, port 4
- G1/2
- Pneumatic connection, port 5
- G1/2
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic Valves Air-Controlled
- Product group
- Pneumatics
- Thread
- G1/2"
- Activation
- Air
- Return
- Air
- Carbon footprint (EPD)
- 26.2539 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568111663
- MPN 10165
Product Documentation
Document preview: JH-5-1/2 — Festo product documentation
More from Festo
Festo
Festo DGSL-25-10-PA Mini slide
544030
Festo
Festo FZS-25 Flange mounting
151928
Festo

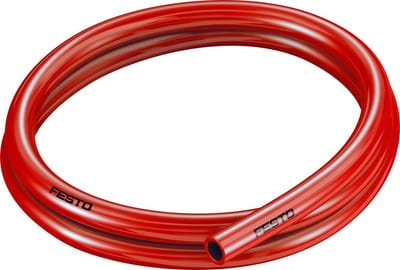

Festo PUN-H-16X2,5-Rt Plastic tubing
558290
Festo
Festo ADN-50-15-I-PPS-A Compact cylinder
572683
Festo

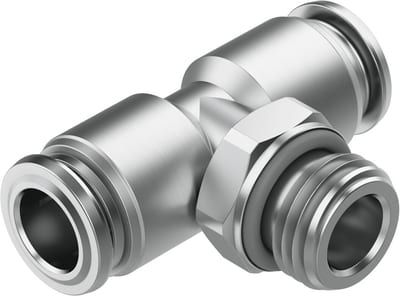

Festo NPQR-T-G14-Q8 Push-in fitting
8085694
Festo

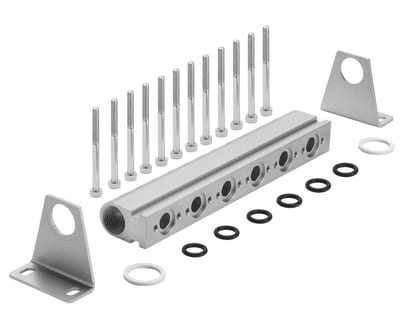

Festo PAL-1/4-6-B Common supply manifold
