Festo
Festo JMFH-5-1/8-S-EX Solenoid valve
Part number535915EAN / GTIN4052568169657HS code8481.20
Pneumatics
Pneumatic Valves
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo JMFH-5-1/8-S-EX — Solenoid valve, universal directional control valves. valve function 5/2-way, double solenoid; operating pressure 0. 1 MPa (0. 10 bar); nominal size 5 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 535915
- Type code
- JMFH-5-1/8-S-EX
- EAN / GTIN
- 4052568169657
- Product category
- Universal directional control valves
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Construction width
- 26 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 600 l/min
- pneumatic working port
- G1/8
- Operating voltage
- Via solenoid coil, must be ordered separately
- Operating pressure
- 0 ... 1 MPa (0 ... 10 bar)
- Design
- Poppet seat
- CE mark (see declaration of conformity)
- To EU Explosion Protection Directive (ATEX)
- Explosion protection certification outside the EU
- EPL Db (GB), EPL Gb (GB)
- UKCA marking (see declaration of conformity)
- To UK EX instructions
- ATEX category gas
- II 2G
- ATEX category dust
- II 2D
- Explosion ignition protection type for gas
- Ex h IIC T4 Gb
- Explosion ignition protection type for dust
- Ex h IIIC T130°C Db
- Explosion ambient temperature
- -5°C <= Ta <= +40°C
- Degree of protection
- IP65
- Nominal size
- 5 mm
- Grid dimension
- 27 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting
- Type of piloting
- Piloted
- Pilot air supply
- External
- Flow direction
- Non-reversible
- Symbol
- 00995755
- lap
- Underlap
- Pilot pressure
- 0.12 ... 0.8 MPa (1.2 ... 8 bar)
- Max. switching frequency
- 25 Hz
- Switching time reversal
- 10 ms
- Max. positive test pulse with 0 signal
- 2200 µs
- Max. negative test pulse with 1 signal
- 3700 µs
- Characteristic coil data
- See solenoid coil, to be ordered separately
- Explosion protection
- Zone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 ... 60 °C
- Media temperature
- -5 ... 40 °C
- Pilot medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Ambient temperature
- -5 ... 40 °C
- Product weight
- 260 g
- Electrical connection
- Via F coil, to be ordered separately
- Type of mounting
- On PR rail, with through-hole
- Breather connection
- M3
- Pilot exhaust port 82
- M5
- Pilot exhaust port 84
- M5
- Pilot air port 12
- M5
- Pilot air port 14
- M5
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- NBR, TPE-U(PU)
- Material housing
- Die-cast aluminium
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Return
- Air
- Carbon footprint (EPD)
- 5.8332 kg CO2e per pcs
- Country of origin
- China
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568169657
- MPN 535915
Product Documentation
Document preview: JMFH-5-1/8-S-EX — Festo product documentation
More from Festo
Festo
Festo VHEF-EST-B32-G14 Selector valve
4106815
Festo

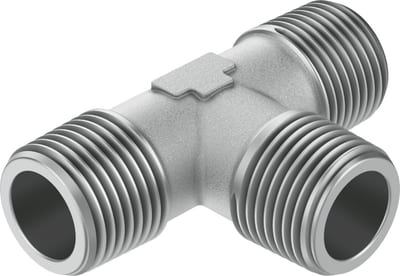

Festo NPFC-T-3R38-M T-fitting
8030253
Festo

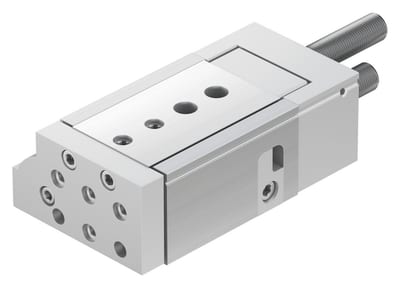

Festo DGSL-20-10-PA Mini slide
544005
Festo
Festo FRC-1/8-D-5M-MINI-A Service unit
162778
Festo
Festo LR-3/8-D-I-MINI Pressure regulator
192302
Festo

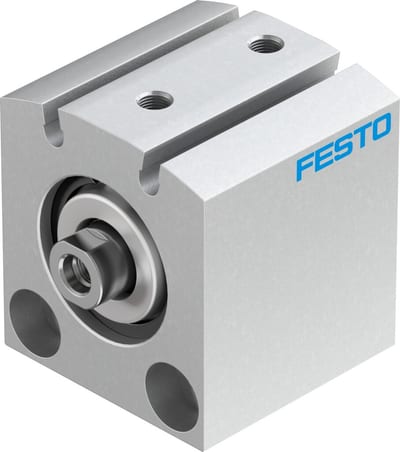

Festo ADVC Short stroke cylinder - 25mm, M5, 5mm, ADVC-25-5-I-P-A
188172
Festo

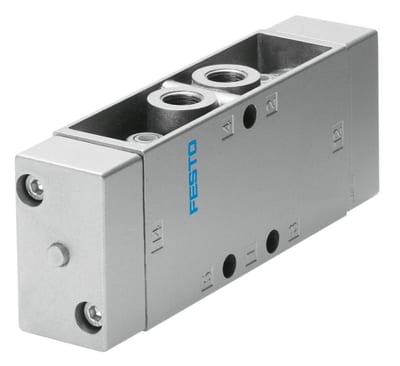

Festo JH-5-1/2 Pneumatic valve
