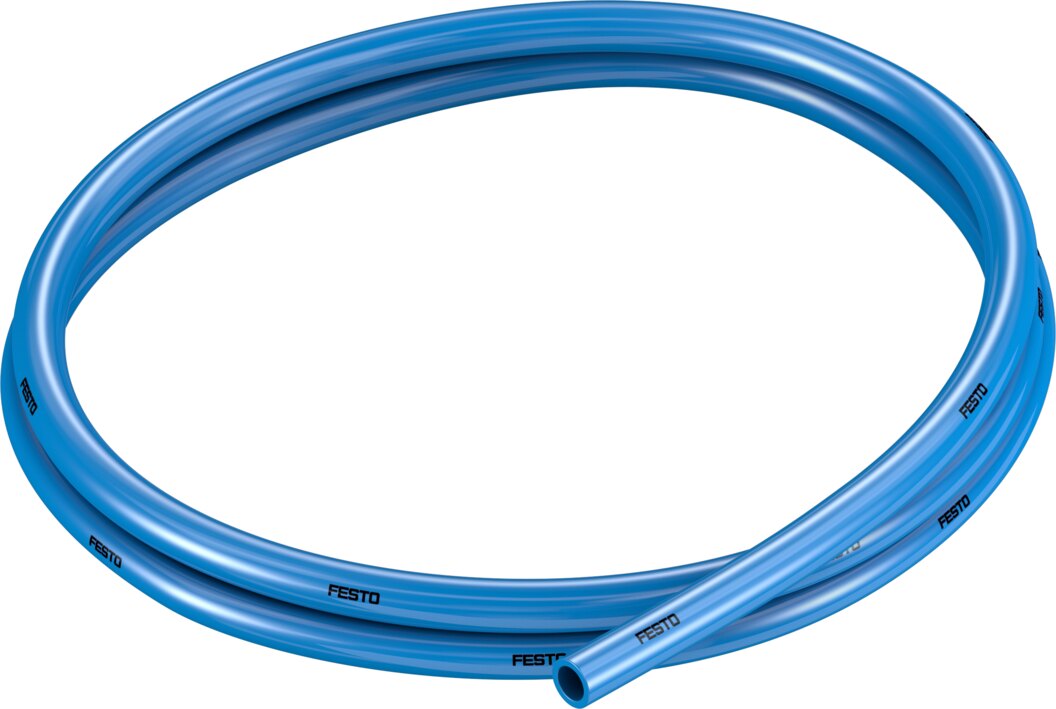

Festo PUN-8X1,25-Bl Plastic tubing

Festo PUN-8X1,25-BL — Plastic tubing, standard pneumatic tubing.

Manufacturer part number (MPN)

159666

Type code

PUN-8X1,25-BL

EAN / GTIN

4052568011963

Product category

Standard pneumatic tubing

Outside diameter

8 mm

Flow-relevant bending radius

37 mm

Inside diameter

5.7 mm

Min. bending radius

24 mm

Instructions on use

TPE-U, ester-based, The plastic tubing can only be installed in contact with cables if the sheathing is free from phosphoric acid esters. Otherwise the plastic tubing can get damaged.

Tubing characteristics

Suitable for energy chains

Operating pressure complete temperature range

-0.095 ... 0.7 MPa (-0.95 ... 7 bar; -13.775 ... 101.5 psi)

Temperature-dependent operating pressure

-0.095 ... 1 MPa (-0.95 ... 10 bar; -13.775 ... 145 psi)

Approval

German Technical Control Board (TÜV)

Certificate issuing authority

B 013277 0527 00

Operating medium

Compressed air to ISO 8573-1:2010 [7:-:-]

Fire test material

UL94 HB

LABS (PWIS) conformity

VDMA24364-B2-L

Ambient temperature

-35 ... 60 °C

Product weight according to length

0.0302 kg/m

Pneumatic connection

For push-in connector O.D. 8 mm, For barbed fitting inside diameter of 6 mm with union nut, For barbed fitting inside diameter of 6 mm

Colour

Blue

Shore hardness

D 52 +/-3

Material tubing

TPE-U(PU)

Product type

Pneumatic hoses

Product group

Pneumatics

Roll size

50 m

Sales unit

Roll

Carbon footprint (EPD)

0.2118 kg CO2e per M

Country of origin

Czechia

Customs tariff code (EU CN)

39173200

HS code

3917.32

HS Code

3917.32
