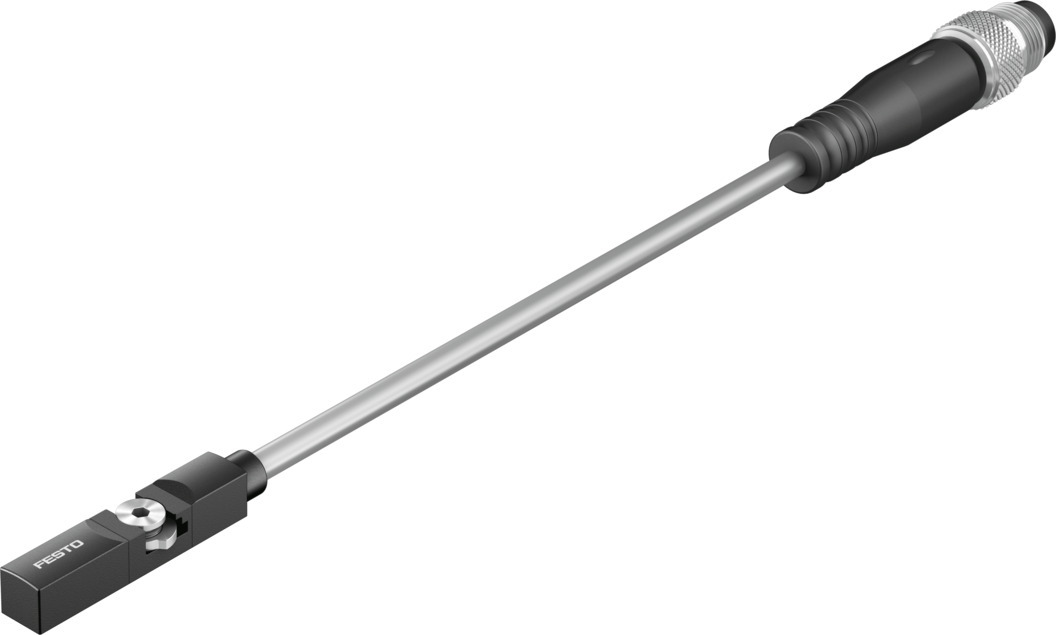

Festo CRSMT-8M-PS-24V-K-0,3-M8D-EX2 Proximity sensor

Festo CRSMT-8M-PS-24V-K-0,3-M8D-EX2 Proximity sensor (part number 574383) is listed under Pneumatics / Pneumatic Components. Type code: CRSMT-8M-PS-24V-K-0,3-M8D-EX2; Product category: T-slot cylinder sensors; Design: For T-slot; Based on standard: EN 60947-5-2; Symbol: 00991153; Approval: RCM.

Manufacturer part number (MPN)

574383

Type code

CRSMT-8M-PS-24V-K-0,3-M8D-EX2

EAN / GTIN

4052568103347

Product category

T-slot cylinder sensors

Design

For T-slot

Based on standard

EN 60947-5-2

Symbol

00991153

Approval

RCM

CE mark (see declaration of conformity)

To EU EMC Directive, To EU Explosion Protection Directive (ATEX), In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)

To UK RoHS instructions

Explosion protection

Zone 2 (ATEX), Zone 2 (UKEX), Zone 22 (ATEX), Zone 22 (UKEX)

ATEX category gas

II 3G

Explosion ignition protection type for gas

Ex ec IIC T4 Gc X

ATEX category dust

II 3D

Explosion ignition protection type for dust

Ex tc IIIC T120°C Dc X

Explosion protection certification outside the EU

EPL Dc (GB), EPL Gc (GB)

Explosion ambient temperature

-40°C <= Ta <= +85°C

Special characteristics

Resistant to cooling lubricants, Alkali-resistant, Acid-resistant

Instructions on use

Support / actuator-sensor overview "The right sensor for the actuator"

Measured variable

Position

Measuring principle

Magneto-resistive

Ambient temperature

-40 ... 85 °C

Repetition accuracy

0.2 mm

Switching output

PNP

Switching element function

N/O contact

Switch-on time

1 ms

Switch-off time

1 ms

Max. switching frequency

180 Hz

Max. output current

100 mA

Max. output current using mounting kits

100 mA

Max. switching capacity DC

2.8 W

Max. switching capacity DC using mounting kits

2.8 W

Voltage drop

1.5 V

Inductive protective circuit

Adapted to MZ, MY, ME coils

Min. load current

0 mA

Off-state current

0.05 mA

Short circuit current rating

Yes

Overload protection

Yes

Rated operational voltage DC

24 V

Operational voltage range DC

5 ... 30 V

Residual ripple

10%

Reverse polarity protection

For all electrical connections

Electrical connection 1, connection type

Cable with plug

Electrical connection 1, connector system

M8x1, A-coded, to EN 61076-2-104

Electrical connection 1, number of connections/cores

3

Electrical connection 1, type of mounting

Rotatable

Electrical connection 1, compatible type of mounting

Compatible with rotatable/non-rotatable screw-type lock

Electrical connection 1, connection pattern

00991155

Connection outlet orientation

In-line

Material electrical contact

Brass, nickel-plated and gold-plated

Material connector housing

PP

Material screw-type lock

Brass, nickel-plated

Test conditions cable

Bending strength: to Festo standard

Torsional strength

> 300,000 cycles, ±270°/0.1 m

Energy chain

> 5 million cycles, bending radius 75 mm

Cable length

0.3 m

Cable characteristic

Standard/suitable for energy chains

Cable sheath colour

Grey

Material cable sheath

TPE-O

Material insulating sheath

PP

Type of mounting

Screw-clamped, Insertable in the slot from above

Tightening torque

0.1 ... 0.6 Nm

Max. tightening torque

0.6 Nm

Mounting position

Any

Product weight

16.1 g

Housing colour

Black

Material housing

PP, High-alloy stainless steel

Switching status indication

Yellow LED

Function reserve indication

Orange LED

Ambient temperature with moving cable

-20 ... 85 °C

Degree of protection

IP65, IP68, IP69K

Immunity to magnetic fields

Design insensitive to permanent magnetic fields < Bon

LABS (PWIS) conformity

VDMA24364-B2-L

Suitable for use with food

See supplementary material information

Product type

Pneumatic reed contacts/cables/brackets

Product group

Pneumatics

Carbon footprint (EPD)

0.2015 kg CO2e per pcs

Country of origin

Bulgaria

Customs tariff code (EU CN)

85365019

HS code

8536.50

HS Code

8536.50
