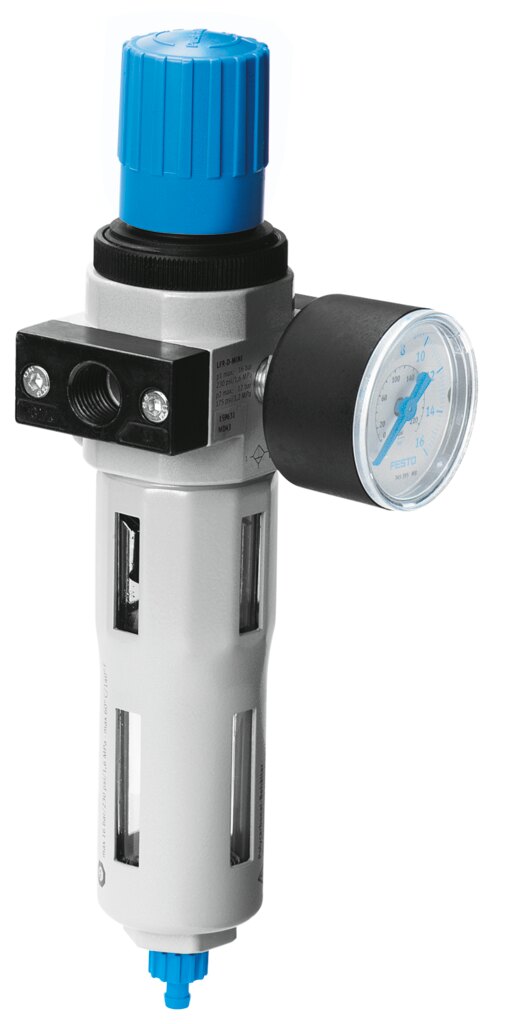

Festo LFR Filter controller Maxi automatic - 1", 0,5 - 12bar, 40MY, LFR-1-D-DI-MAXI-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFR Filter controller Maxi automatic. Air treatment (Technique / Pneumatics / Pneumatic Air Treatment). Principal data: thread 1", press area 0.5 to 12 bar, filter element 40 My, supplier type designation LFR-1-D-DI-MAXI-A. Supplied under manufacturer part number 192398, EAN 4052568151348, HS code 8481.10, country of origin Hungary.
Technical Specifications
- Size
- Maxi Series: D Actuator lock: Rotary knob with detent Mounting position: Vertical +/-5° Grade of filtration: 40 µm Condensate drain: Fully automatic Design: Filter controller with pressure gauge Max. condensate volume: 43 ml Bowl guard: Metal bowl guard Symbol: 00991587 Pressure gauge (analogue) or Pressure display (digital): With pressure gauge Operating pressure: 0.2 ... 1.2 MPa (2 ... 12 bar) Pressure regulation range: 0.5 ... 12 bar Max. pressure hysteresis: 0.04 MPa (0.4 bar) (5.8 psi) Standard nominal flow rate (standardised to DIN 1343): 7000 l/min Operating medium: Compressed air to ISO 8573-1:2010 [7:9:-]; Inert gas LABS (PWIS) conformity: VDMA24364-B1/B2-L Storage temperature: -10 ... 60 °C Air purity class at output: Compressed air to ISO 8573-1:2010 [7:8:4]; Inert gas Media temperature: 5 ... 60 °C Ambient temperature: 5 ... 60 °C Product weight: 1670 g Type of mounting: Inline installation Pneumatic connection, port 1: G1 Pneumatic connection, port 2: G1 material housing: Die-cast zinc material bowl: Makrolon® EAN / GTIN: 4052568151348 Festo type code: LFR-1-D-DI-MAXI-A Festo order number: 192398 Product type: Air treatment Product group: Pneumatics Thread: 1" Press Area: 0.5 to 12 bar Filter element: 40 My Carbon footprint (EPD): 36.3126 kg CO2e per pcs Country of origin: Hungary Customs tariff code (EU CN): 84811005 HS code: 8481.10 Manufacturer part number: 192398
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568151348
- MPN 192398
Product Documentation
