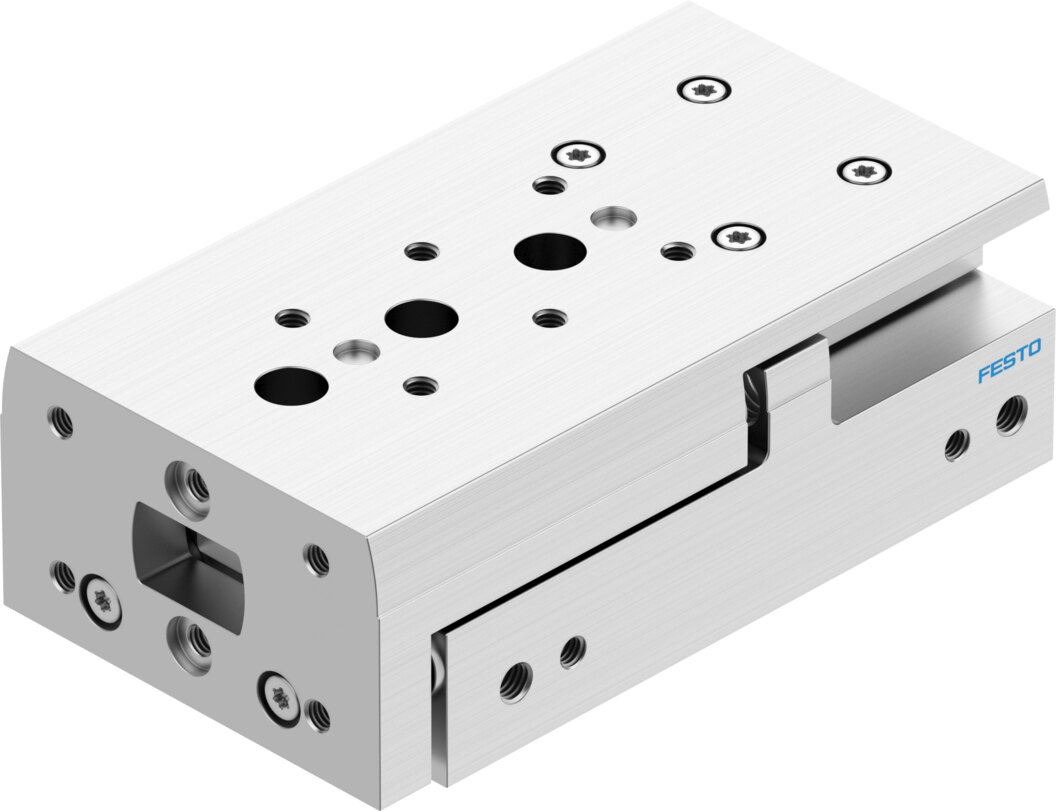

Festo DGST Mini Slide - M5, DGST-12-50-E1A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGST Mini Slide. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: port size M5, supplier type designation DGST-12-50-E1A. Supplied under manufacturer part number 8078850, EAN 4052568446819, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 50 mm
- Piston diameter
- 12 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastomer cushioning, double-sided, stroke not adjustable
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Yoke; Piston rod; Slide
- Position detection
- Via proximity switch
- Symbol
- 00991249
- Operating pressure
- 0.1 ... 0.8 MPa (1 ... 8 bar) (14.5 ... 116 psi)
- Max. speed
- 0.5 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 ... 60 °C
- Impact energy in end positions
- 0.07 J
- Cushioning length
- 1.1 mm
- Max. force Fy
- 580 N
- Max. force Fz
- 580 N
- Max. moment Mx
- 7 Nm
- Max. moment My
- 5.8 Nm
- Max. moment Mz
- 5.8 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 102 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 136 N
- Moving mass
- 290 g
- Product weight
- 611 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material guide
- POM; TPE-E; High-alloy steel
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- EAN / GTIN
- 4052568446819
- Festo type code
- DGST-12-50-E1A
- Festo order number
- 8078850
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 11.1990 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 8078850
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568446819
- MPN 8078850
Product Documentation
More from Festo
Festo

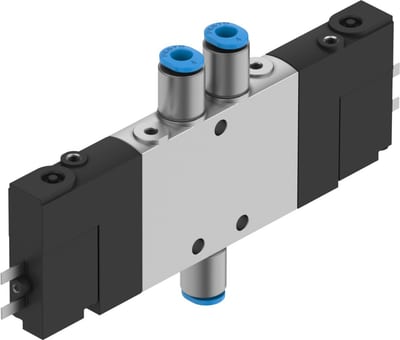

Festo CPE10 Solenoid Valve - QS-4", El, Spring, CPE10-M1BH-5/3B-QS4-B
533151
Festo

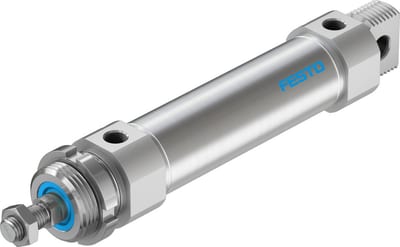

Festo DSNU Round cylinder double-acting - 40mm, G1/4", 100mm, DSNU-40-100-PPV-A
196034
Festo

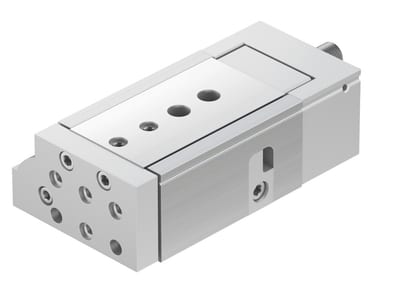

Festo DGSL Mini Slide - G1/8, DGSL-25-20-EA
570205
Festo

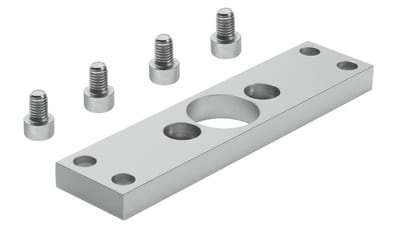

Festo FZF Flange bracket - 63, FZF-63
161817
Festo

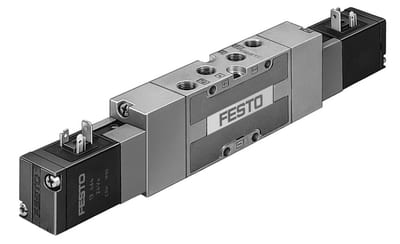

Festo MVH Solenoid Valve - G1/8", El, Spring, MVH-5/3E-1/8-S-B
30998
Festo

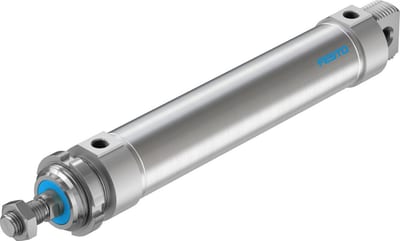

Festo DSNU Round cylinder double-acting - 50mm, G1/4", 200mm, DSNU-50-200-P-A
196007
Festo

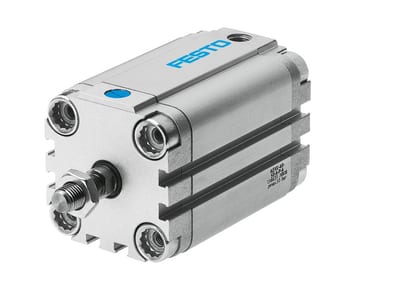

Festo AEVU Compact cylinder - 32mm, G1/8, 25mm, AEVU-32-25-A-P-A
157000
Festo

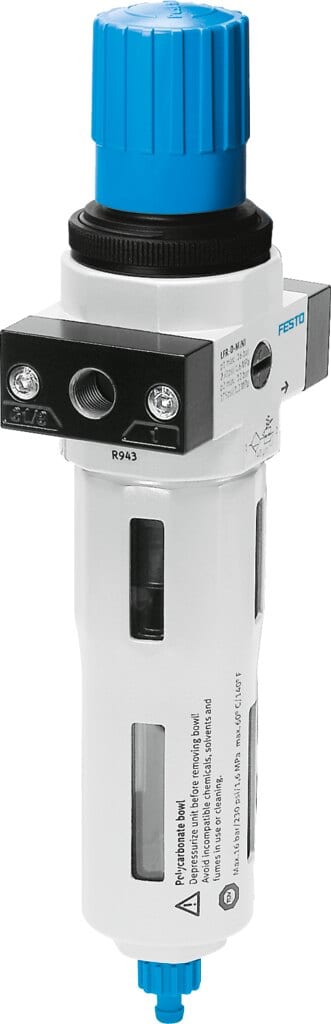

Festo LFR Filter regulator Midi manual - 3/8", 0,5 - 12bar, 40MY, LFR-3/8-D-O-MIDI
