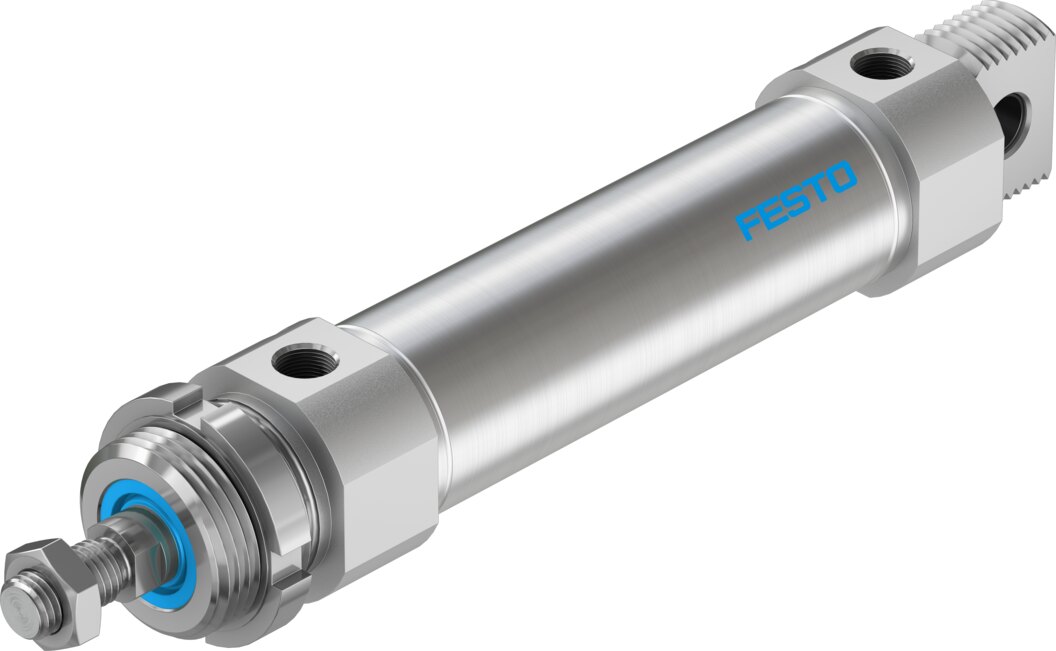

Festo DSNU Round cylinder double-acting - 40mm, G1/4", 100mm, DSNU-40-100-PPV-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSNU Round cylinder double-acting. Pneumatic ISO Air Cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 40 mm, port size G1/4", stroke rate 100 mm, supplier type designation DSNU-40-100-PPV-A. Supplied under manufacturer part number 196034, EAN 4052568158828, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 100 mm
- Piston diameter
- 40 mm
- Piston rod thread
- M12x1.25
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod; Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.7 J
- Cushioning length
- 18 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 633.3 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 752.9 N
- Moving mass
- 390 g
- Product weight
- 901 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/4
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR; TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- High-alloy stainless steel
- EAN / GTIN
- 4052568158828
- Festo type code
- DSNU-40-100-PPV-A
- Festo order number
- 196034
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/4"
- Carbon footprint (EPD)
- 11.9885 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 196034
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568158828
- MPN 196034
