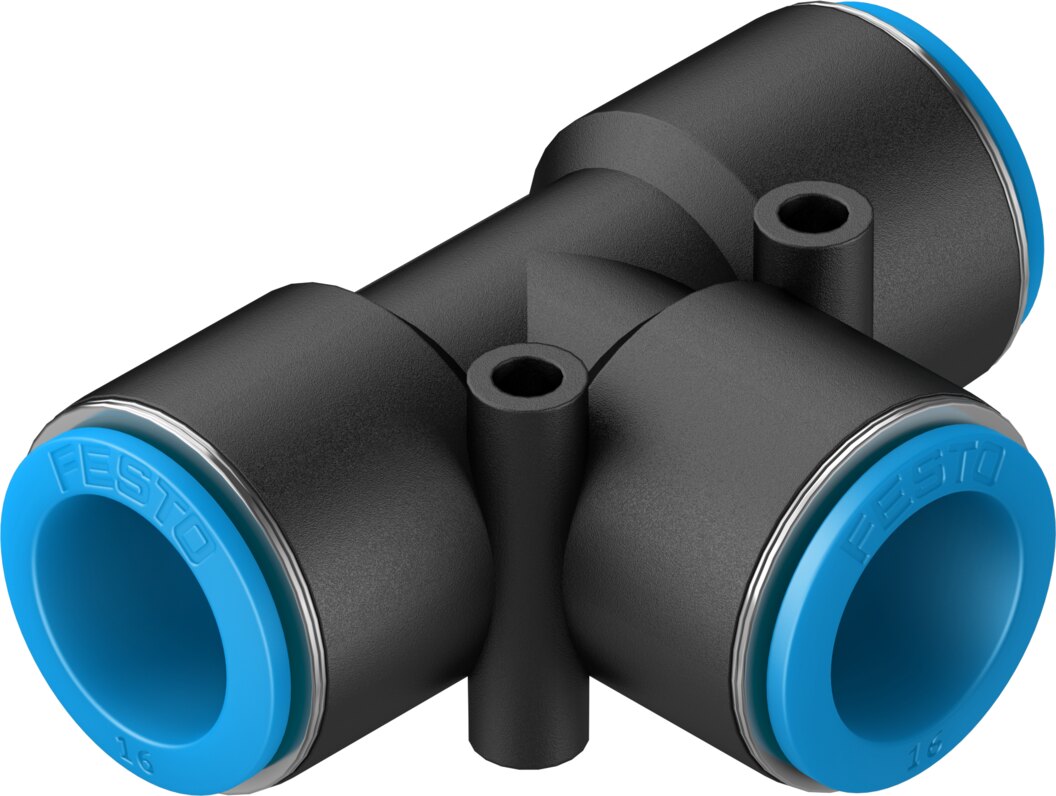

Festo QST T-connection push-in composite - 16mm, 16mm, QST-16

Festo QST T-connection push-in composite. Collectors C (Technique / Pneumatics / Pneumatic Fittings). Principal data: outer hose diameter 16 mm, outer hose diameter 2 16 mm, supplier type designation QST-16. Supplied under manufacturer part number 153133, EAN 4052568011116, HS code 3917.40, country of origin Taiwan.

Size

Standard

Nominal size

13 mm

Tubing insertion depth

24.1 mm

Mounting position

Any

Design

T-shape (Push-pull principle)

Size of pack

1

Operating pressure complete temperature range

-0.095 ... 0.6 MPa (-0.95 ... 6 bar) (-13.775 ... 87 psi)

Temperature-dependent operating pressure

-0.095 ... 1.4 MPa (-0.95 ... 14 bar) (-13.775 ... 203 psi)

Note on operating pressure

Water: max. 0.6 MPa at max. 50°C

Operating medium

Compressed air to ISO 8573-1:2010 [7:-:-]; Water (liquid, ice-free)

Note on operating and pilot medium

Lubricated operation possible

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 4 according to ISO 14644-1

Ambient temperature

-10 ... 80 °C

Product weight

44 g

Number of outputs

2

Number of supply lines

1

Pneumatic connection, port 1

For tubing outer diameter of 16 mm

Pneumatic connection, port 2

For tubing outside diameter of 16 mm

Colour of release ring

Blue

Material housing

PBT

Material release ring

POM

Material tubing seal

NBR

Material tubing clamp component

High-alloy stainless steel

EAN / GTIN

4052568011116

Festo type code

QST-16

Festo order number

153133

Product type

Collectors C

Product group

Pneumatics

Outer hose diameter

16 mm

Temperature min

-10 °C

Temperature max

80 °C

Carbon footprint (EPD)

0.3334 kg CO2e per pcs

Country of origin

Taiwan

Customs tariff code (EU CN)

39174000

HS code

3917.40

Manufacturer part number

153133

HS Code

3917.40

• EAN 4052568011116
• MPN 153133
