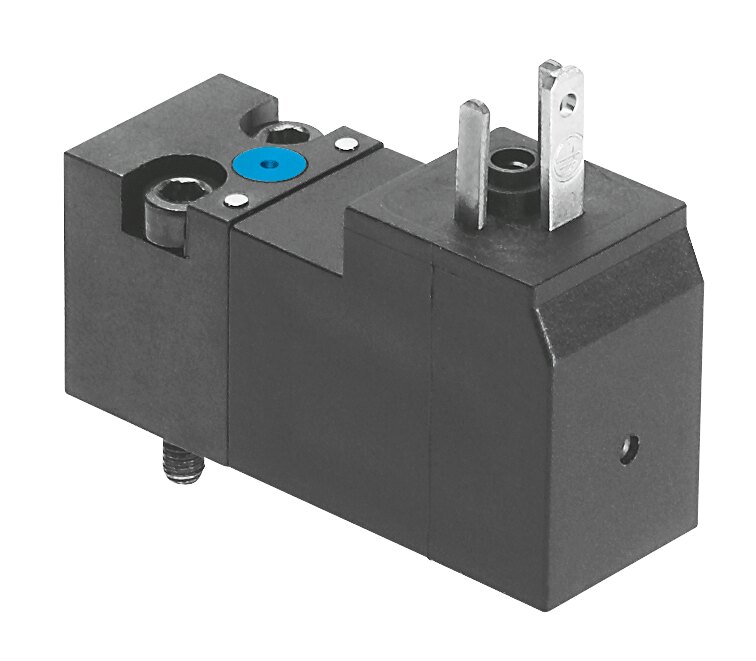

Festo VSCS-B Solenoid Valve closed monostable 3/2 24V DC - El, Mechanical spring, VSCS-B-M32-MD-WA-1AC1-8
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VSCS-B Solenoid Valve closed monostable 3/2 24V DC. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: activation El, return Mechanical spring, supplier type designation VSCS-B-M32-MD-WA-1AC1-8. Supplied under manufacturer part number 8040572, EAN 4052568434618, HS code 8481.20, country of origin Italy.
Technical Specifications
- Valve function
- 3/2-way, single solenoid, closed Type of actuation: Electrical Construction width: 15 mm Standard nominal flow rate (standardised to DIN 1343): 13.5 l/min pneumatic working port: Sub-base size 15 mm to ISO 15218 Operating voltage: 24V AC Operating pressure: 0.15 ... 0.8 MPa (1.5 ... 8 bar) (21.75 ... 116 psi) Type of reset: Mechanical spring Degree of protection: IP65 Sealing principle: Soft Mounting position: Any Conforms to standard: ISO 15218 Manual override: Detenting; Non-detenting Type of piloting: Direct Flow direction: Non-reversible Symbol: 00991308 lap: Underlap Note on forced dynamization: Switching frequency min. 1/week Switching time off: 30 ms Switching time on: 9 ms Duty cycle: 100% Characteristic coil data: 24 V AC: 50/60 Hz, pick-up power 2.1 VA, holding power 1.6 VA Permissible voltage fluctuations: +/-10% Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) Vibration resistance: Transport application test with severity level 1 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 1 to FN 942017-5 and EN 60068-2-27 LABS (PWIS) conformity: VDMA24364-C1-L Media temperature: -5 ... 50 °C Ambient temperature: -5 ... 50 °C Electrical connection: Type C; To DIN EN 175301-803 Pneumatic connection, port 1: Sub-base Pneumatic connection, port 2: Sub-base Pneumatic connection, port 3: Sub-base material seals: NBR EAN / GTIN: 4052568434618 Festo type code: VSCS-B-M32-MD-WA-1AC1-8 Festo order number: 8040572 Product type: Pneumatic solenoid valves Product group: Pneumatics Activation: El Return: mechanical spring Carbon footprint (EPD): 0.6426 kg CO2e per pcs Country of origin: Italy Customs tariff code (EU CN): 84812090 HS code: 8481.20 Manufacturer part number: 8040572
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568434618
- MPN 8040572
Product Documentation
More from Festo
Festo
Festo LR Pressure regulator Mini - 3/8", 0,5 - 7bar, LR-3/8-D-7-O-MINI
162600
Festo
Festo ADVC Short stroke cylinder - 16mm, M5, 15mm, ADVC-16-15-A-P
188125
Festo
Festo NPFC-T T-fitting brass, nickel-plated BSPT nipple/nipple/socket - 1/4", NPFC-T-2R14-G14-MMF
8030260
Festo
Festo DNC Standard cylinder - 100mm, G1/2", 100mm, DNC-100-100-PPV-A
163469
Festo
Festo ADNGF Compact cylinder - 50mm, G1/8, 50mm, ADNGF-50-50-P-A
554265
Festo
Festo FLSR Freewheel clutch - 25, FLSR-25-L
13778
Festo
Festo DFM Guide Cylinder - 16mm, M5, 50mm, DFM-16-50-B-PPV-A-KF
559462
Festo
Festo DSBC Standard cylinder double-acting aluminium - 50mm, 50mm, DSBC-50-50-PPVA-N3
1366950
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 8040572?
- 8040572 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 8040572.
- What is the HS code for 8040572?
- The customs tariff (HS) code for 8040572 is 8481.20.
- Who manufactures 8040572?
- 8040572 is a Festo product in the Pneumatics range.
- Is a datasheet available for 8040572?
- Yes — the 8040572 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 8040572?
- The minimum order quantity is 1.
- Is 8040572 available?
- Yes — 8040572 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
