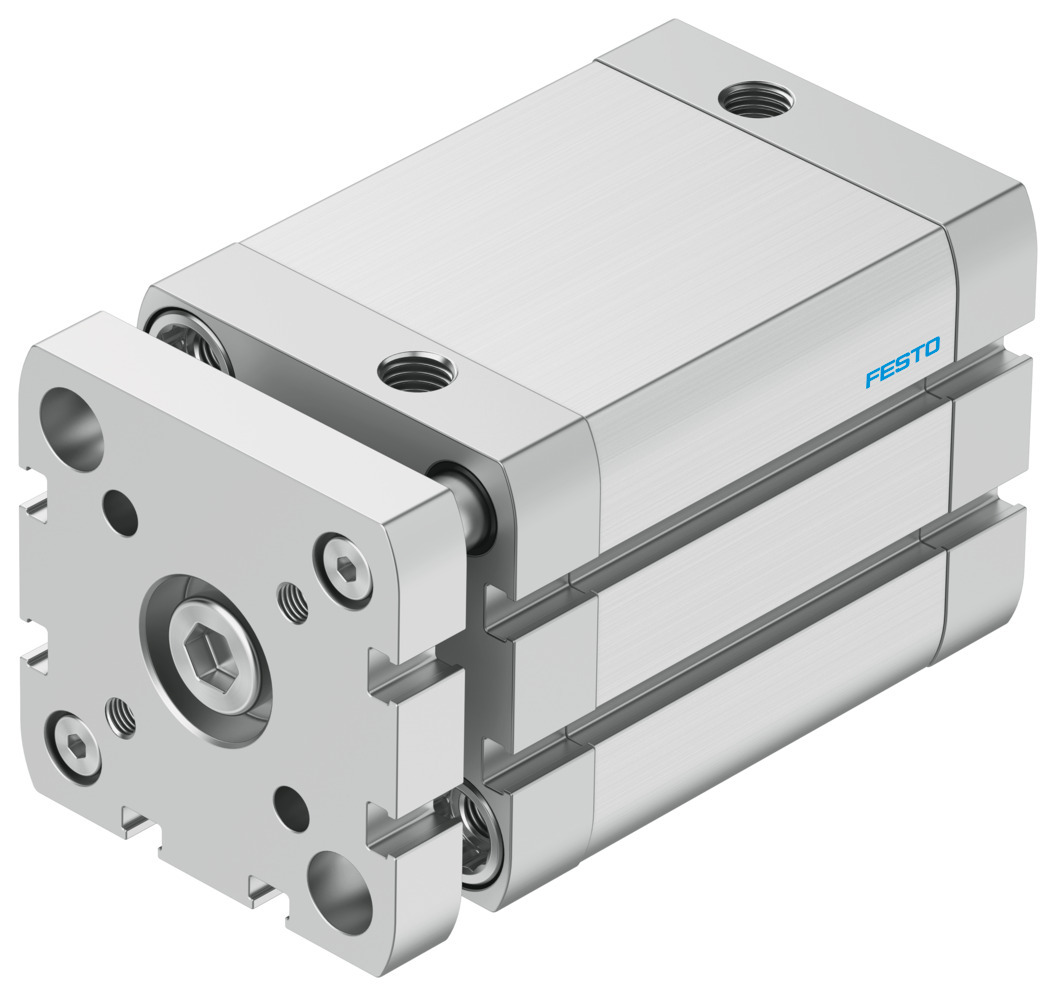

Festo ADNGF Compact cylinder - 50mm, G1/8, 50mm, ADNGF-50-50-P-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADNGF Compact cylinder. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 50 mm, port size G1/8, stroke rate 50 mm, supplier type designation ADNGF-50-50-P-A. Supplied under manufacturer part number 554265, EAN 4052568198909, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 50 mm
- Piston diameter
- 50 mm
- Based on standard
- ISO 21287
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Protection against torque/guide
- Guide rod with yoke
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 1057 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 1178 N
- Moving mass
- 432 g
- Product weight
- 972 g
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material end plate
- Anodised wrought aluminium alloy
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- EAN / GTIN
- 4052568198909
- Festo type code
- ADNGF-50-50-P-A
- Festo order number
- 554265
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 19.1810 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 554265
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568198909
- MPN 554265
Product Documentation
