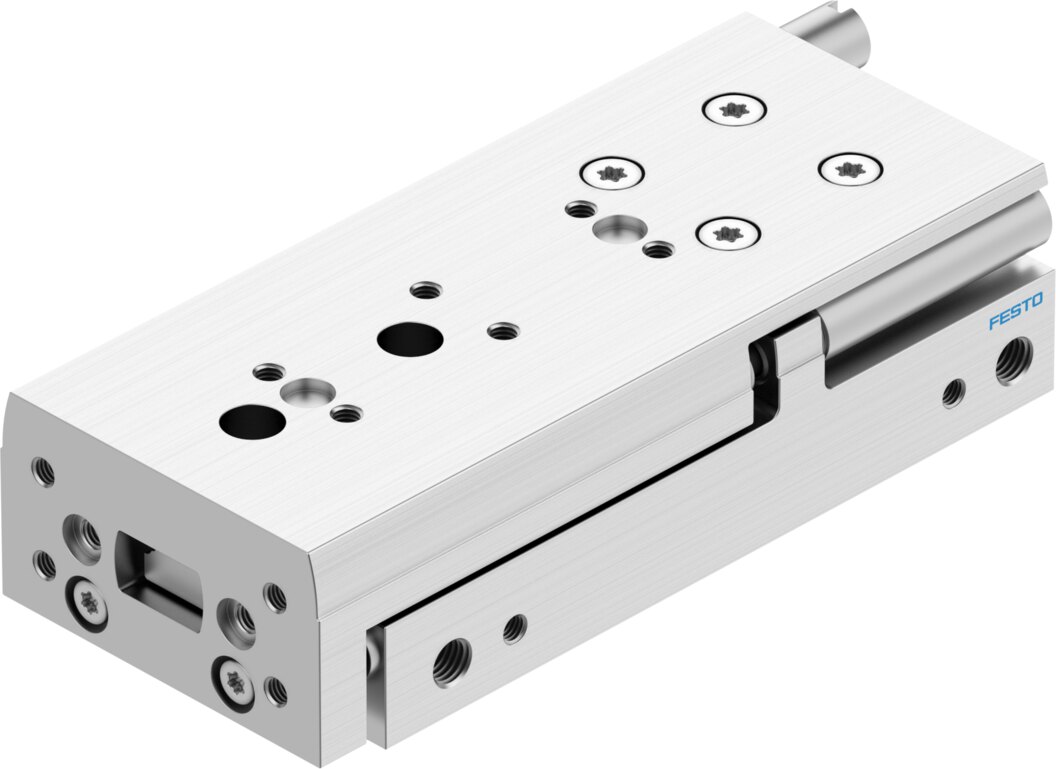

Festo DGST Mini Slide - M5, DGST-8-50-PA
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGST Mini Slide. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: port size M5, supplier type designation DGST-8-50-PA. Supplied under manufacturer part number 8085114, EAN 4052568450021, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 50 mm
- Adjustable end position range/length front
- 16.3 mm
- Adjustable end position range/length rear
- 14.4 mm
- Piston diameter
- 8 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Yoke; Piston rod; Slide
- Position detection
- Via proximity switch
- Symbol
- 00991249
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar) (21.75 ... 116 psi)
- Max. speed
- 0.8 m/s
- Repetition accuracy
- <= 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -10 ... 60 °C
- Impact energy in end positions
- 0.05 J
- Cushioning length
- 1.5 mm
- Max. force Fy
- 350 N
- Max. force Fz
- 350 N
- Max. moment Mx
- 3.2 Nm
- Max. moment My
- 3 Nm
- Max. moment Mz
- 3 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 45 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 60 N
- Moving mass
- 130.4 g
- Product weight
- 252.8 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material guide
- POM; TPE-E; High-alloy steel
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- EAN / GTIN
- 4052568450021
- Festo type code
- DGST-8-50-PA
- Festo order number
- 8085114
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 4.5372 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 8085114
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568450021
- MPN 8085114
Product Documentation
More from Festo
Festo
Festo LFRS Filter regulator Mini manual - 1/4", 0,5 - 12bar, 5MY, LFRS-1/4-D-5M-MINI
194716
Festo

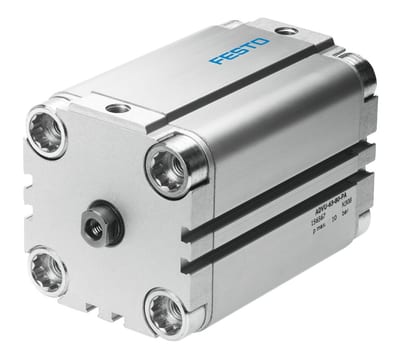

Festo ADVU Compact cylinder - 32mm, G1/8, 20mm, ADVU-32-20-P-A
156533
Festo

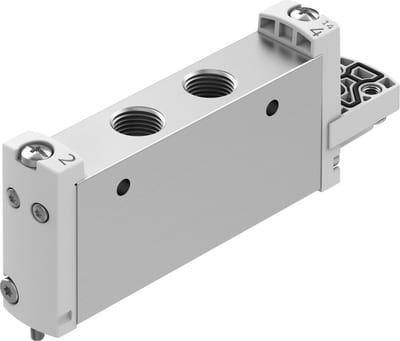

Festo VUVG-L14 Solenoid Valve monostable 5/2 - G1/8", El, Pneumatic spring, VUVG-L14-M52-A-G18-P1
8033529
Festo

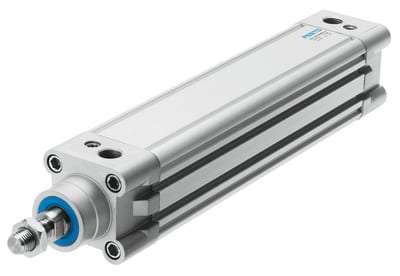

Festo DNC Standard cylinder - 32mm, G1/8", 400mm, DNC-32-400-PPV
163329
Festo

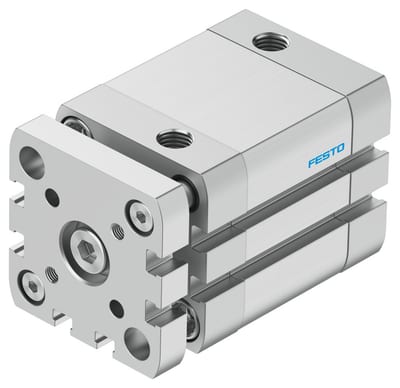

Festo ADNGF Compact cylinder - 40mm, G1/8, 25mm, ADNGF-40-25-P-A
554252
Festo

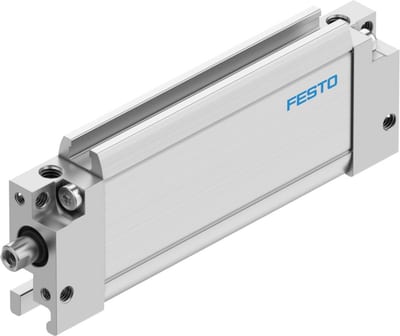

Festo DZF Flat cylinder - 12mm, 40mm, DZF-12-40-P-A
164005
Festo

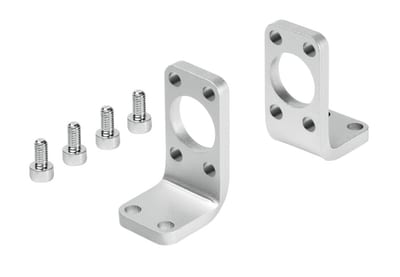

Festo HZS Foot bracket - 20, HZS-20
151932
Festo

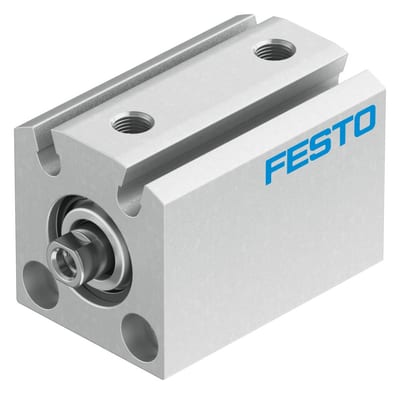

Festo ADVC Short stroke cylinder - 12mm, M5, 5mm, ADVC-12-5-I-P-A
