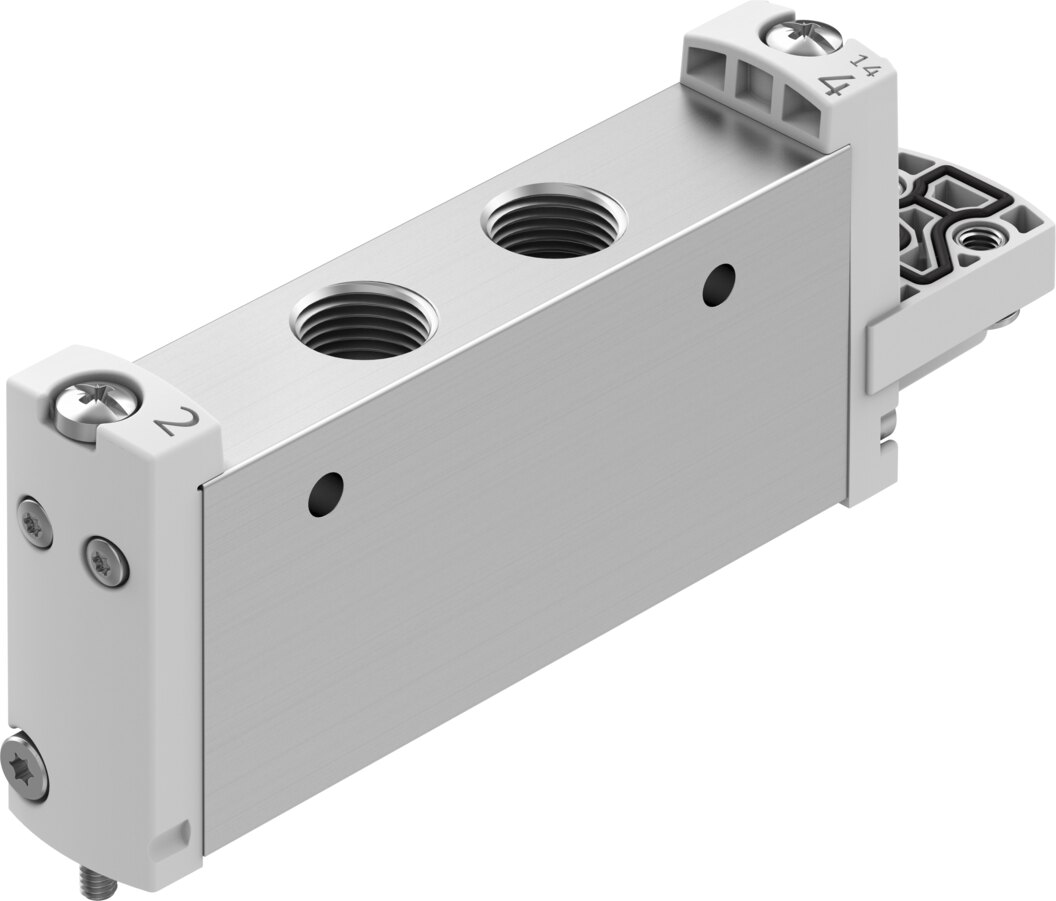

Festo VUVG-L14 Solenoid Valve monostable 5/2 - G1/8", El, Pneumatic spring, VUVG-L14-M52-A-G18-P1

Festo VUVG-L14 Solenoid Valve monostable 5/2. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/8", activation El, return Pneumatic spring, supplier type designation VUVG-L14-M52-A-G18-P1. Supplied under manufacturer part number 8033529, EAN 4052568428921, HS code 8481.20, country of origin Germany.

Valve function

5/2-way, single solenoid Type of actuation: Electrical Valve size: 14 mm Standard nominal flow rate (standardised to DIN 1343): 700 ... 780 l/min pneumatic working port: G1/8 Operating pressure: 0.25 ... 0.8 MPa (2.5 ... 8 bar) Design: Piston gate valve Type of reset: Pneumatic spring Approval: c UL us - Recognised (Oil) CE mark (see declaration of conformity): To EU EMC Directive; To EU Low Voltage Directive; In accordance with EU RoHS Directive UKCA marking (see declaration of conformity): To UK RoHS instructions; To UK regulations for electrical equipment Certificate issuing authority: UL MH19482 Degree of protection: IP65; With electric pilot valve and plug socket Nominal size: 5.6 mm Exhaust-air function: Can be throttled Sealing principle: Soft Mounting position: Any Type of piloting: Piloted Pilot air supply: Internal Symbol: 00992908 lap: Overlap Pilot pressure: 0.25 ... 0.8 MPa (2.5 ... 8 bar) Suitability for vacuum: No Switching time off: 16 ms Switching time on: 16 ms Duty cycle: 100% Max. positive test pulse with 0 signal: 700 µs Max. negative test pulse with 1 signal: 900 µs Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] Note on operating and pilot medium: Lubricated operation possible (in which case lubricated operation will always be required) Vibration resistance: Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 Shock resistance: Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 LABS (PWIS) conformity: VDMA24364-B1/B2-L Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1 Media temperature: -5 ... 60 °C Ambient temperature: -5 ... 60 °C Product weight: 66 g Electrical connection: Via electric pilot valve Type of mounting: On manifold rail; With through-hole Pneumatic connection, port 1: G1/8 Pneumatic connection, port 2: G1/8 Pneumatic connection, port 3: G1/8 Pneumatic connection, port 4: G1/8 Pneumatic connection, port 5: G1/8 Pilot control interface: To ISO 15218 material seals: HNBR; NBR material housing: Wrought aluminium alloy EAN / GTIN: 4052568428921 Festo type code: VUVG-L14-M52-A-G18-P1 Festo order number: 8033529 Product type: Pneumatic solenoid valves Product group: Pneumatics Thread: G1/8" Activation: El Return: pneumatic spring Carbon footprint (EPD): 1.5473 kg CO2e per pcs Country of origin: Germany Customs tariff code (EU CN): 84812090 HS code: 8481.20 Manufacturer part number: 8033529

HS Code

8481.20

• EAN 4052568428921
• MPN 8033529
