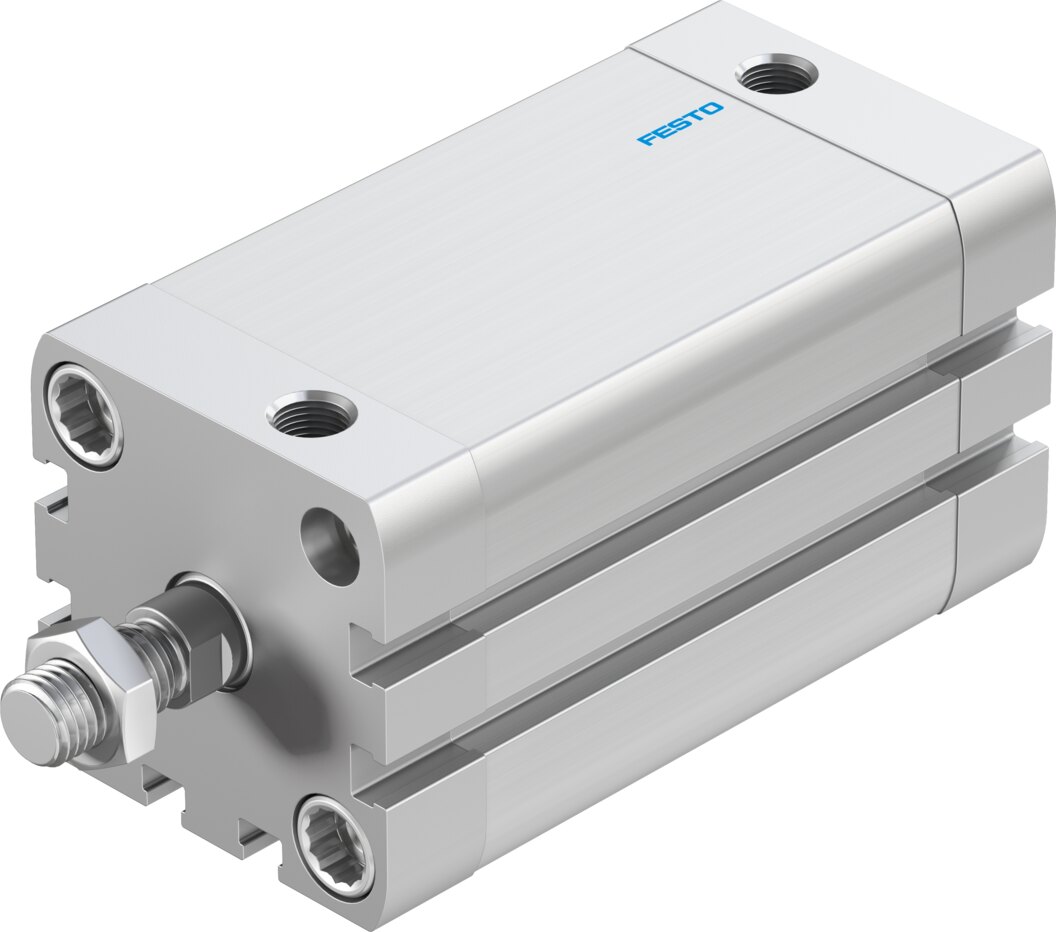

Festo ADN Compact cylinder double-acting - 40mm, 1/8, 60mm, ADN-40-60-A-PPS-A

Festo ADN Compact cylinder double-acting. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 40 mm, port size 1/8, stroke rate 60 mm, supplier type designation ADN-40-60-A-PPS-A. Supplied under manufacturer part number 572680, EAN 4052568219017, HS code 8412.31, country of origin Germany.

Stroke

60 mm

Piston diameter

40 mm

Piston rod thread

M10x1.25

Cushioning

Self-adjusting pneumatic end-position cushioning

Mounting position

Any

Conforms to standard

ISO 21287

Piston-rod end

Male thread

Position detection

Via proximity switch

Symbol

00992970

Variants

Piston rod at one end

Operating pressure

0.1 ... 1 MPa (1 ... 10 bar)

Mode of operation

Double-acting

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium

Lubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Ambient temperature

-20 ... 80 °C

Impact energy in end positions

1.7 J

Cushioning length

5 mm

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke

686 N

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke

754 N

Moving mass

168 g

Product weight

602 g

Type of mounting

With through-hole; With female thread; With accessories

Pneumatic connection

G1/8

Material collar screws

Steel

Material cover

Anodised wrought aluminium alloy

Material seals

TPE-U(PUR)

Material piston rod

High-alloy steel

Material cylinder barrel

Smooth-anodised wrought aluminium alloy

EAN / GTIN

4052568219017

Festo type code

ADN-40-60-A-PPS-A

Festo order number

572680

Product type

Pneumatic ISO compact air cylinders

Product group

Pneumatics

Port Size

1/8

Carbon footprint (EPD)

10.3117 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84123100

HS code

8412.31

Manufacturer part number

572680

HS Code

8412.31

• EAN 4052568219017
• MPN 572680
