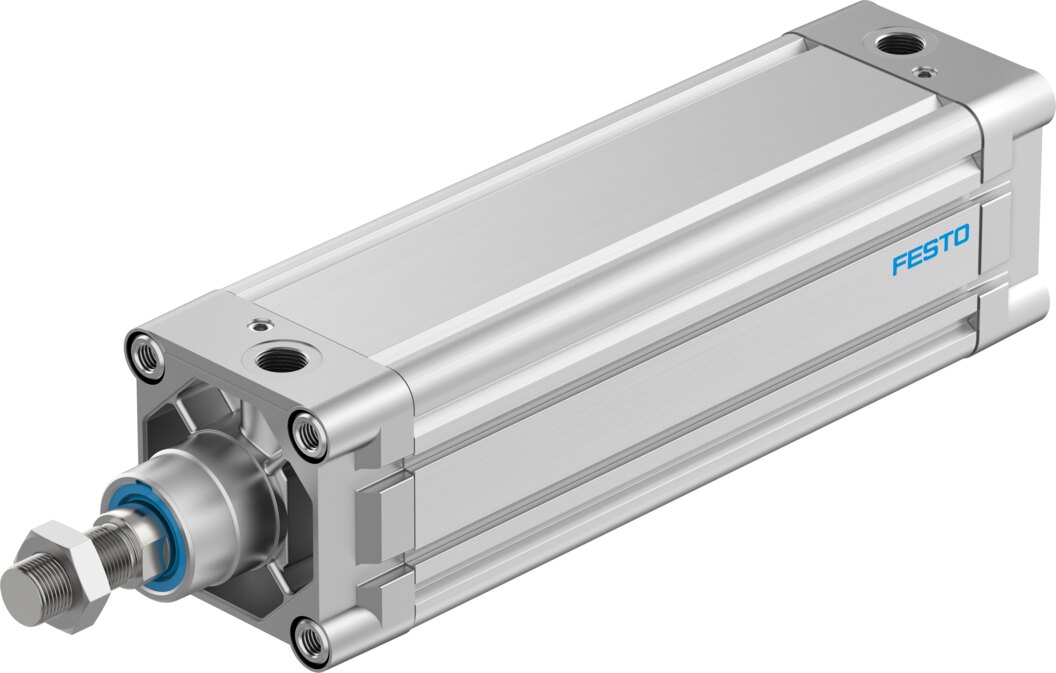

Festo DNC Standard cylinder - 100mm, G1/2", 100mm, DNC-100-100-PPV-A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DNC Standard cylinder. Pneumatic ISO Air Cylinder (Technique / Pneumatics / Pneumatic Cylinders). Principal data: piston diameter 100 mm, port size G1/2", stroke rate 100 mm, supplier type designation DNC-100-100-PPV-A. Supplied under manufacturer part number 163469, EAN 4052568134716, HS code 8412.31, country of origin Hungary.
Technical Specifications
- Stroke
- 100 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Conforms to standard
- ISO 15552
- Piston-rod end
- Male thread
- Design
- Piston; Piston rod; Profile barrel
- Position detection
- Via proximity switch
- Symbol
- 00991235
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 ... 1.2 MPa (0.6 ... 12 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 1.2 J
- Cushioning length
- 32 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 4418 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 4712 N
- Moving mass for 0 mm stroke
- 1544 g
- Additional moving mass per 10 mm stroke
- 38 g
- Basic weight for 0 mm stroke
- 4653 g
- Additional weight per 10 mm stroke
- 115 g
- Type of mounting
- With female thread; With accessories
- Pneumatic connection
- G1/2
- Material cover
- Die-cast aluminium; coated
- Material seals
- TPE-U(PU)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Wrought aluminium alloy; Smooth-anodised
- EAN / GTIN
- 4052568134716
- Festo type code
- DNC-100-100-PPV-A
- Festo order number
- 163469
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/2"
- Carbon footprint (EPD)
- 104.1426 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 163469
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568134716
- MPN 163469
Product Documentation
More from Festo
Festo
Festo ADNGF Compact cylinder - 50mm, G1/8, 50mm, ADNGF-50-50-P-A
554265
Festo
Festo FLSR Freewheel clutch - 25, FLSR-25-L
13778
Festo
Festo DFM Guide Cylinder - 16mm, M5, 50mm, DFM-16-50-B-PPV-A-KF
559462
Festo

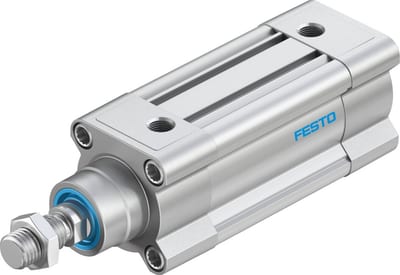

Festo DSBC Standard cylinder double-acting aluminium - 50mm, 50mm, DSBC-50-50-PPVA-N3
1366950
Festo

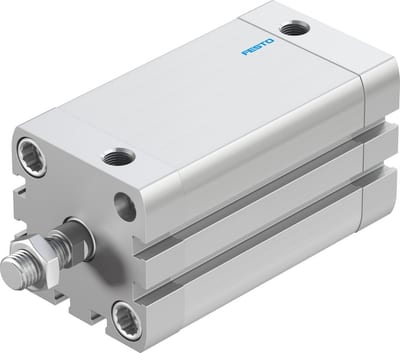

Festo ADN Compact cylinder double-acting - 40mm, 1/8, 60mm, ADN-40-60-A-PPS-A
572680
Festo

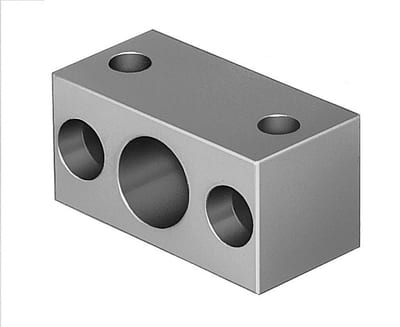

Festo YSRF Mounting flange - 16, YSRF-16
11683
Festo

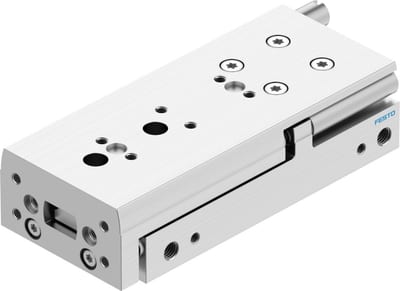

Festo DGST Mini Slide - M5, DGST-8-50-PA
8085114
Festo

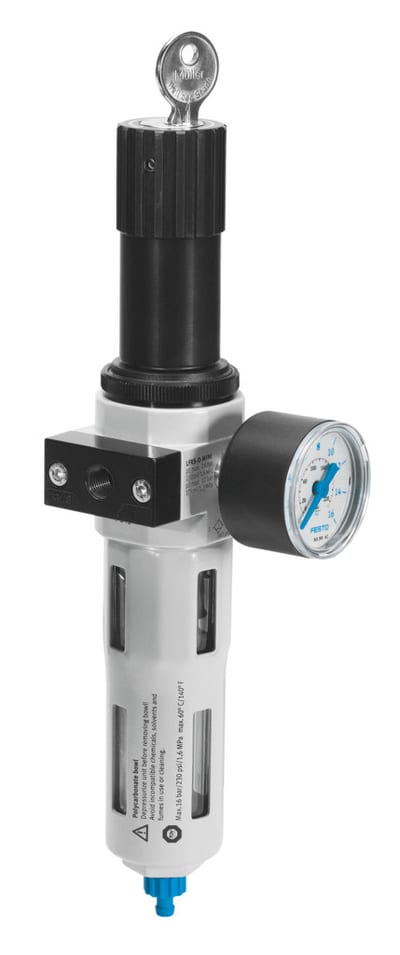

Festo LFRS Filter regulator Mini manual - 1/4", 0,5 - 12bar, 5MY, LFRS-1/4-D-5M-MINI
