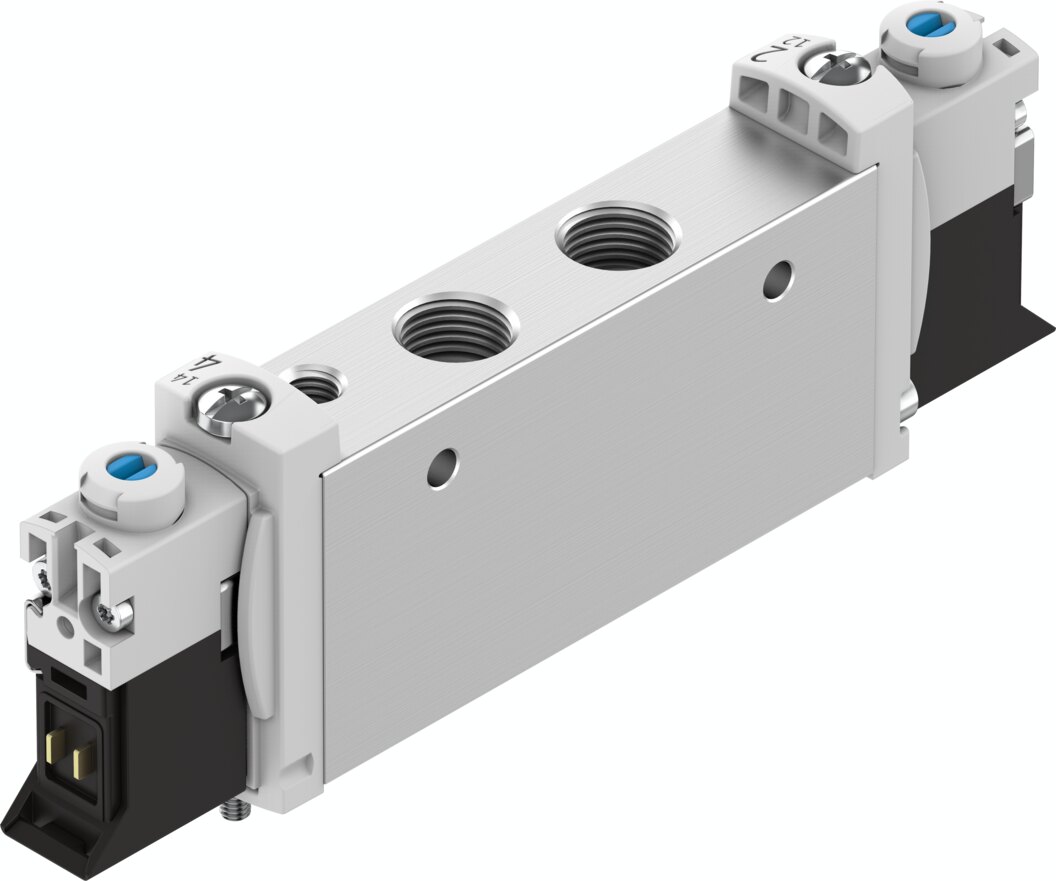

Festo VUVG-L14 Solenoid Valve - G1/8", El, VUVG-L14-B52-T-G18-1P3
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VUVG-L14 Solenoid Valve. Pneumatic solenoid valves (Technique / Pneumatics / Pneumatics - Valves). Principal data: thread G1/8", activation El, supplier type designation VUVG-L14-B52-T-G18-1P3. Supplied under manufacturer part number 566500, EAN 4052568214029, HS code 8481.20, country of origin Germany.
Technical Specifications
- Valve function
- 5/2-way, double solenoid
- Type of actuation
- Electrical
- Valve size
- 14 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 700 ... 780 l/min
- pneumatic working port
- G1/8
- Operating voltage
- 24 V DC
- Operating pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Design
- Piston gate valve
- Approval
- RCM; c UL us - Recognised (Oil)
- CE mark (see declaration of conformity)
- To EU EMC Directive; To EU Low Voltage Directive; In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions; To UK regulations for electrical equipment
- Degree of protection
- IP40; IP65; With plug socket
- Nominal size
- 5.6 mm
- Exhaust-air function
- Can be throttled
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting; Non-detenting; Concealed
- Type of piloting
- Piloted
- Pilot air supply
- Internal
- Symbol
- 00992897
- lap
- Overlap
- Pilot pressure
- 0.15 ... 0.8 MPa (1.5 ... 8 bar)
- Suitability for vacuum
- No
- Switching time reversal
- 8 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 700 µs
- Max. negative test pulse with 1 signal
- 900 µs
- Characteristic coil data
- 24 V DC: 1.0 W; 24 V DC: low-current phase 0.3 W, high-current phase 1.0 W
- Permissible voltage fluctuations
- +/-10%
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- Vibration resistance
- Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6
- Restrictions for environmental and media temperature
- -5 - 50 °C; Without holding current reduction
- Shock resistance
- Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Media temperature
- -5 ... 60 °C
- Ambient temperature
- -5 ... 60 °C
- Product weight
- 89 g
- Electrical connection
- Via electrical sub-base
- Type of mounting
- On manifold rail; With through-hole
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material seals
- HNBR; NBR
- Material housing
- Wrought aluminium alloy
- EAN / GTIN
- 4052568214029
- Festo type code
- VUVG-L14-B52-T-G18-1P3
- Festo order number
- 566500
- Product type
- Pneumatic solenoid valves
- Product group
- Pneumatics
- Thread
- G1/8"
- Activation
- El
- Carbon footprint (EPD)
- 1.8449 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
- Manufacturer part number
- 566500
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568214029
- MPN 566500
Product Documentation
More from Festo
Festo

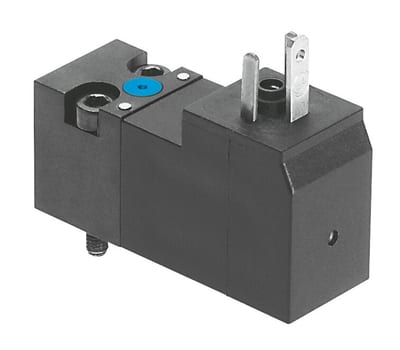

Festo VSCS-B Solenoid Valve closed monostable 3/2 24V DC - El, Mechanical spring, VSCS-B-M32-MD-WA-1AC1-8
8040572
Festo

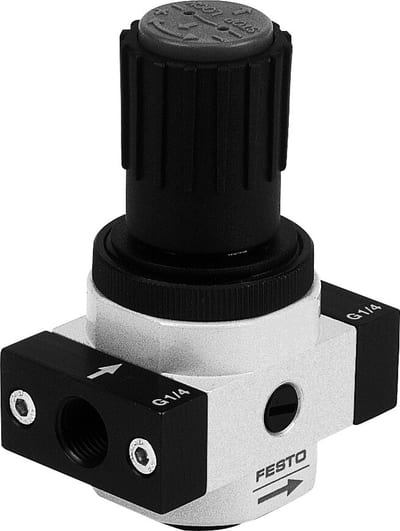

Festo LR Pressure regulator Mini - 3/8", 0,5 - 7bar, LR-3/8-D-7-O-MINI
162600
Festo

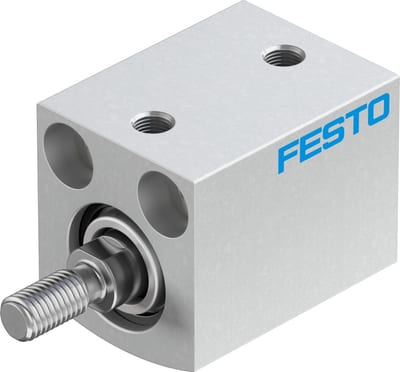

Festo ADVC Short stroke cylinder - 16mm, M5, 15mm, ADVC-16-15-A-P
188125
Festo

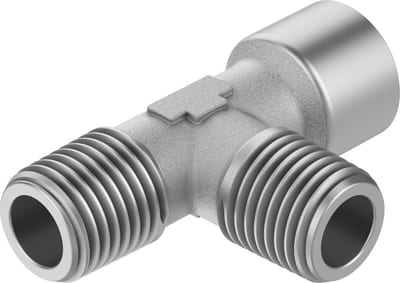

Festo NPFC-T T-fitting brass, nickel-plated BSPT nipple/nipple/socket - 1/4", NPFC-T-2R14-G14-MMF
8030260
Festo

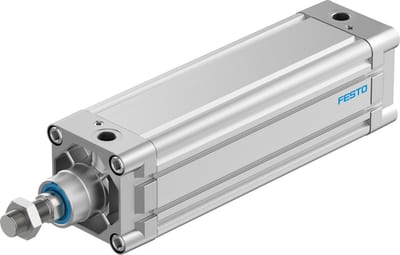

Festo DNC Standard cylinder - 100mm, G1/2", 100mm, DNC-100-100-PPV-A
163469
Festo

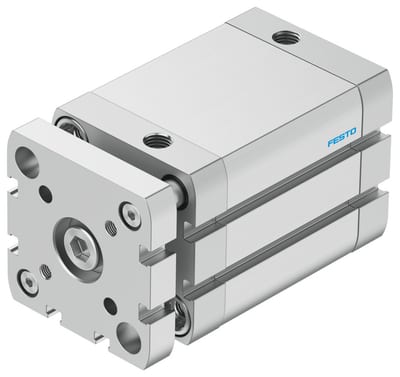

Festo ADNGF Compact cylinder - 50mm, G1/8, 50mm, ADNGF-50-50-P-A
554265
Festo

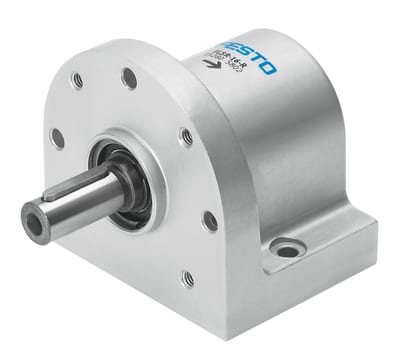

Festo FLSR Freewheel clutch - 25, FLSR-25-L
13778
Festo

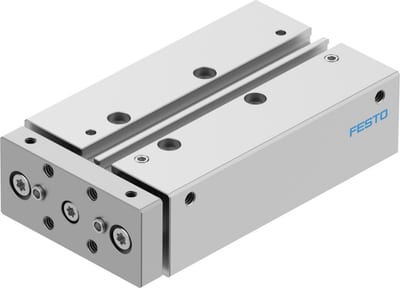

Festo DFM Guide Cylinder - 16mm, M5, 50mm, DFM-16-50-B-PPV-A-KF
