Festo DGSL Mini Slide - G1/8, DGSL-25-20-EA
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL Mini Slide. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: port size G1/8, supplier type designation DGSL-25-20-EA. Supplied under manufacturer part number 570205, EAN 4052568217006, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 20 mm
- Adjustable end position range/length front
- 11.5 mm
- Adjustable end position range/length rear
- 5.5 mm
- Piston diameter
- 32 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Short elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke; Piston; Piston rod; Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.1 ... 0.8 MPa (1 ... 8 bar)
- Max. speed
- 0.8 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.55 J
- Cushioning length
- 1.3 mm
- Max. force Fy
- 3744 N
- Max. force Fz
- 3744 N
- Max. moment Mx
- 100 Nm
- Max. moment My
- 60 Nm
- Max. moment Mz
- 60 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 415 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 483 N
- Moving mass
- 1052 g
- Product weight
- 2750 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/8
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- EAN / GTIN
- 4052568217006
- Festo type code
- DGSL-25-20-EA
- Festo order number
- 570205
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 56.2111 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 570205
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568217006
- MPN 570205
Product Documentation
More from Festo
Festo
Festo FZF Flange bracket - 63, FZF-63
161817
Festo
Festo MVH Solenoid Valve - G1/8", El, Spring, MVH-5/3E-1/8-S-B
30998
Festo
Festo DSNU Round cylinder double-acting - 50mm, G1/4", 200mm, DSNU-50-200-P-A
196007
Festo
Festo AEVU Compact cylinder - 32mm, G1/8, 25mm, AEVU-32-25-A-P-A
157000
Festo
Festo LFR Filter regulator Midi manual - 3/8", 0,5 - 12bar, 40MY, LFR-3/8-D-O-MIDI
162689
Festo

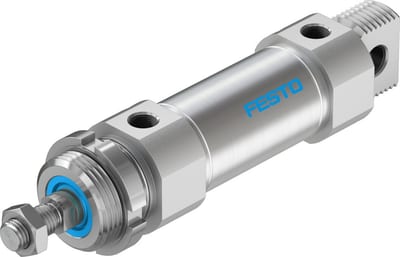

Festo DSNU Round cylinder double-acting - 40mm, G1/4", 30mm, DSNU-40-30-PPV-A
5262705
Festo

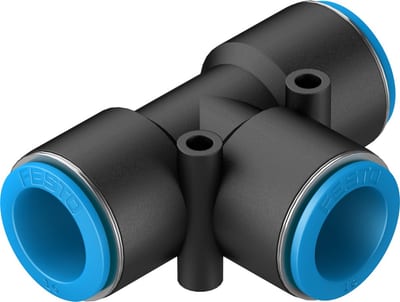

Festo QST T-connection push-in composite - 16mm, 16mm, QST-16
153133
Festo

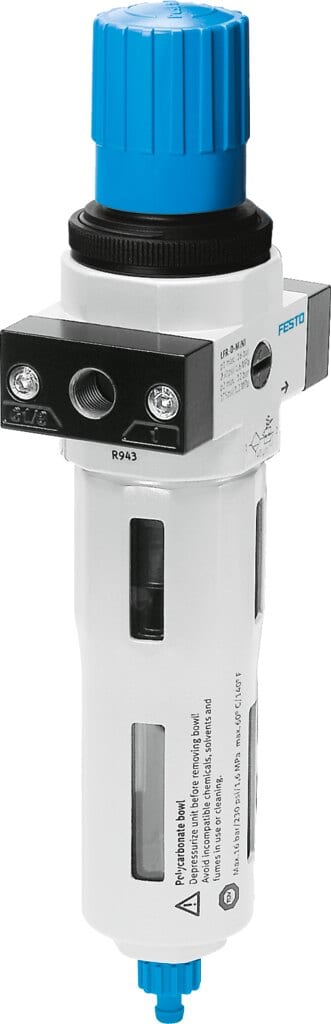

Festo LFR Filter controller Maxi automatic - 1/2", 0,5 - 12bar, 40MY, LFR-1/2-D-O-DI-MAXI-A
