Festo

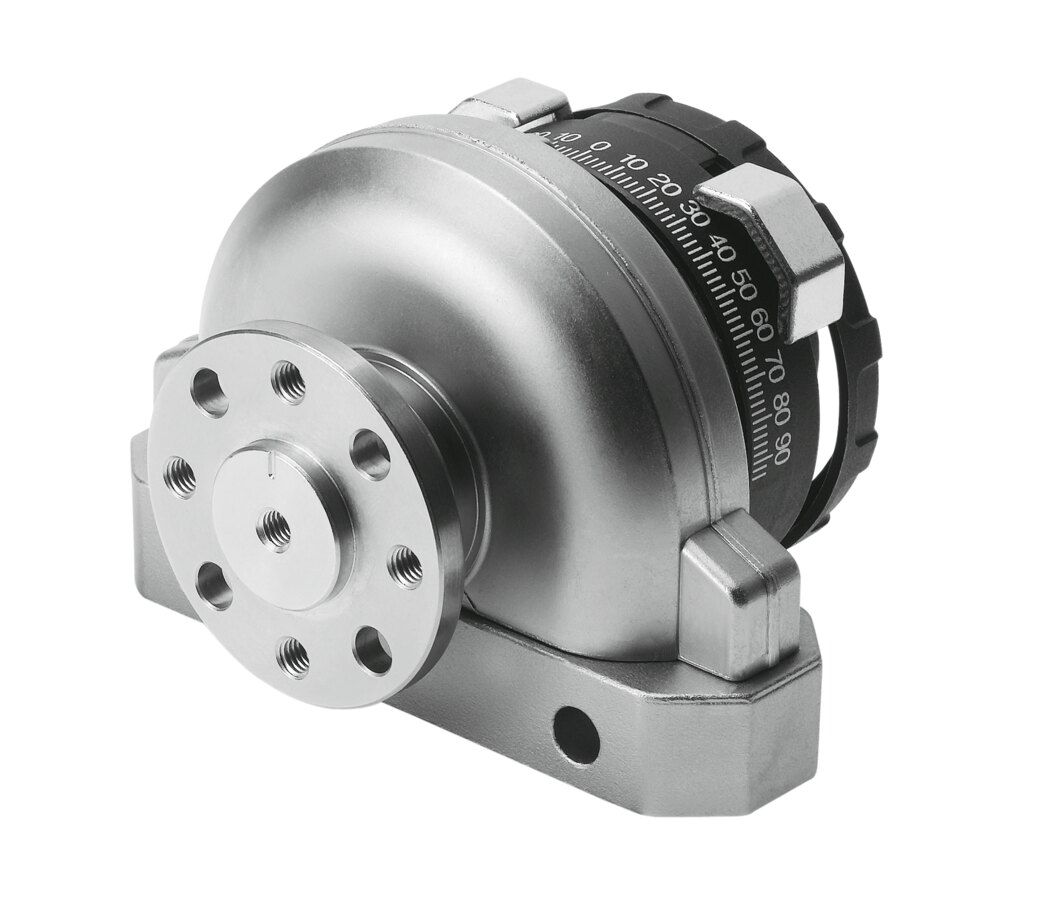

Festo DSRL-16-180-P-FW Semi-rotary drive
Part number30655EAN / GTIN4052568114077HS code8412.39
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DSRL-16-180-P-FW — Semi-rotary drive, pneumatic cylinders. operating pressure 0.2. 0.8 MPa (2. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 30655
- Type code
- DSRL-16-180-P-FW
- EAN / GTIN
- 4052568114077
- Product category
- Pneumatic cylinders
- Size
- 16
- Cushioning angle
- 2.1 deg
- Rotation angle adjustment range
- 0 ... 180 deg
- Swivel angle
- 0 ... 180 deg
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Design
- Vane
- Position detection
- None
- Symbol
- 00991265
- Operating pressure
- 0.2 ... 0.8 MPa (2 ... 8 bar)
- Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)
- 3 Hz
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -10 ... 60 °C
- Max. axial force
- 30 N
- Max. radial force
- 75 N
- Theoretical torque at 0.6 MPa (6 bar, 87 psi)
- 2 Nm
- Product weight
- 300 g
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Material covering
- Reinforced PA
- Material drive shaft
- Steel, nickel-plated
- Material seals
- NBR
- Material housing
- Die-cast zinc
- Product type
- Pneumatic rodless cylinders
- Product group
- Pneumatics
- Diameter
- 16 mm
- Stroke rate
- 180 mm
- Carbon footprint (EPD)
- 6.6656 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123900
- HS code
- 8412.39
Standards & Compliance
- HS Code
- 8412.39
Cross References
- EAN 4052568114077
- MPN 30655
Product Documentation
Document preview: DSRL-16-180-P-FW — Festo product documentation
