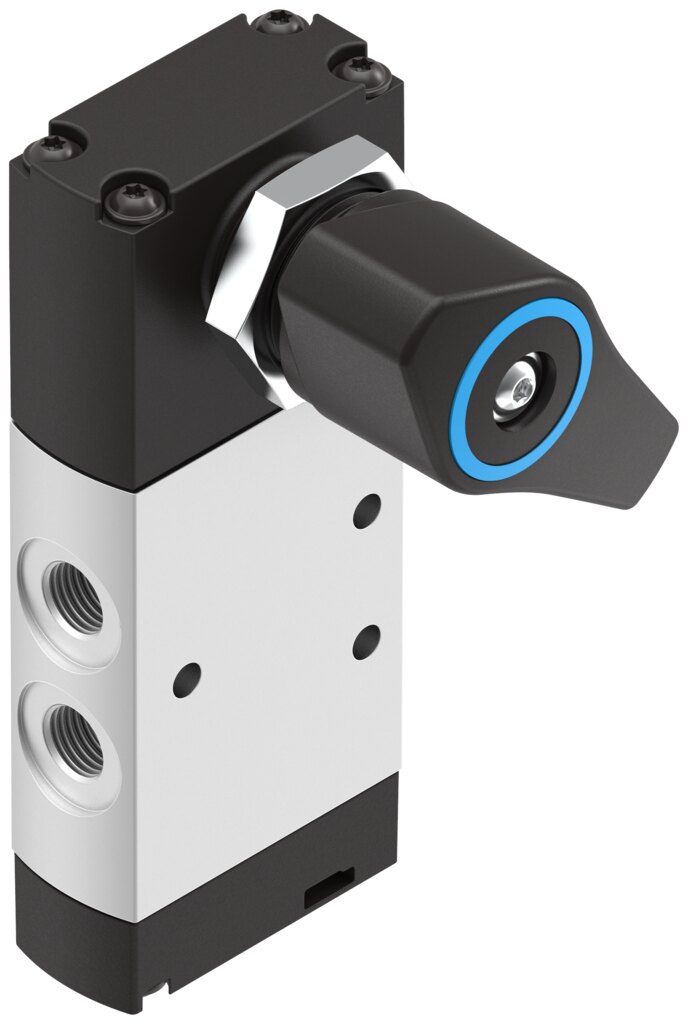

Festo VHEF-ES-M52-M-G18 Selector valve
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo VHEF-ES-M52-M-G18 — Selector valve, mechanically & hand operated pneumatic valves. valve function 5/2-way, single solenoid; operating pressure -0.095. 1 MPa (-0.95. 10 bar); nominal size 5.2 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 4106808
- Type code
- VHEF-ES-M52-M-G18
- EAN / GTIN
- 4052568291235
- Product category
- Mechanically & hand operated pneumatic valves
- Valve function
- 5/2-way, single solenoid
- Type of actuation
- Manual
- Construction width
- 20 mm
- Standard nominal flow rate (standardised to DIN 1343)
- 750 l/min
- pneumatic working port
- G1/8
- Operating pressure
- -0.095 ... 1 MPa (-0.95 ... 10 bar)
- Design
- Piston gate valve
- Type of reset
- Mechanical spring
- Nominal size
- 5.2 mm
- Exhaust-air function
- Can be throttled
- Instructions on use
- Actuate manually only
- Sealing principle
- Soft
- Mounting position
- Any
- Type of piloting
- Direct
- Flow direction
- Reversible
- Symbol
- 00995882
- lap
- Overlap
- Max. switching frequency
- 0.5 Hz
- Explosion protection
- Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Corrosion resistance class CRC
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Actuating torque
- 0.3 Nm
- Max. force on actuation
- 200 N
- Max. lateral force on actuation
- 200 N
- Product weight
- 235 g
- Type of mounting
- With through-hole
- Pneumatic connection, port 1
- G1/8
- Pneumatic connection, port 2
- G1/8
- Pneumatic connection, port 3
- G1/8
- Pneumatic connection, port 4
- G1/8
- Pneumatic connection, port 5
- G1/8
- Material cover
- Reinforced PA
- Material seals
- NBR
- Material housing
- Anodised wrought aluminium alloy
- Material lever
- Reinforced PA
- Product type
- Pneumatic Valve Manual
- Product group
- Pneumatics
- Return
- Spring
- Activation
- Rotary knob
- Thread
- 1/8"
- Working pressure
- 10 bar
- Temperature min
- -10 °C
- Temperature max
- 60 °C
- Carbon footprint (EPD)
- 2.0380 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84812090
- HS code
- 8481.20
Standards & Compliance
- HS Code
- 8481.20
Cross References
- EAN 4052568291235
- MPN 4106808
Product Documentation
More from Festo
Festo
Festo FRM-Y-D-MINI Branching module
542184
Festo
Festo CPE18-M2H-5/3E-QS-8 Solenoid valve
4052568138271
Festo
Festo DGSL-16-50-Y3A Mini slide
544001
Festo
Festo PUN-H-12X2-SW Plastic tubing
197394
Festo
Festo ADN-32-20-I-P-A Compact cylinder
4052568005504
Festo
Festo VABM-L1-18S-G38-3 Manifold rail
574456
Festo
Festo FRC-1/2-D-7-O-MIDI Service unit
192635
Festo
Festo VACF-B-C1-1A Solenoid coil
8030813
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 4106808?
- 4106808 can be ordered from cballast.com as a Festo catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Festo product?
- The manufacturer part number is 4106808.
- What is the HS code for 4106808?
- The customs tariff (HS) code for 4106808 is 8481.20.
- Who manufactures 4106808?
- 4106808 is a Festo product in the Pneumatics range.
- Is a datasheet available for 4106808?
- Yes — the 4106808 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 4106808?
- The minimum order quantity is 1.
- Is 4106808 available?
- Yes — 4106808 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
