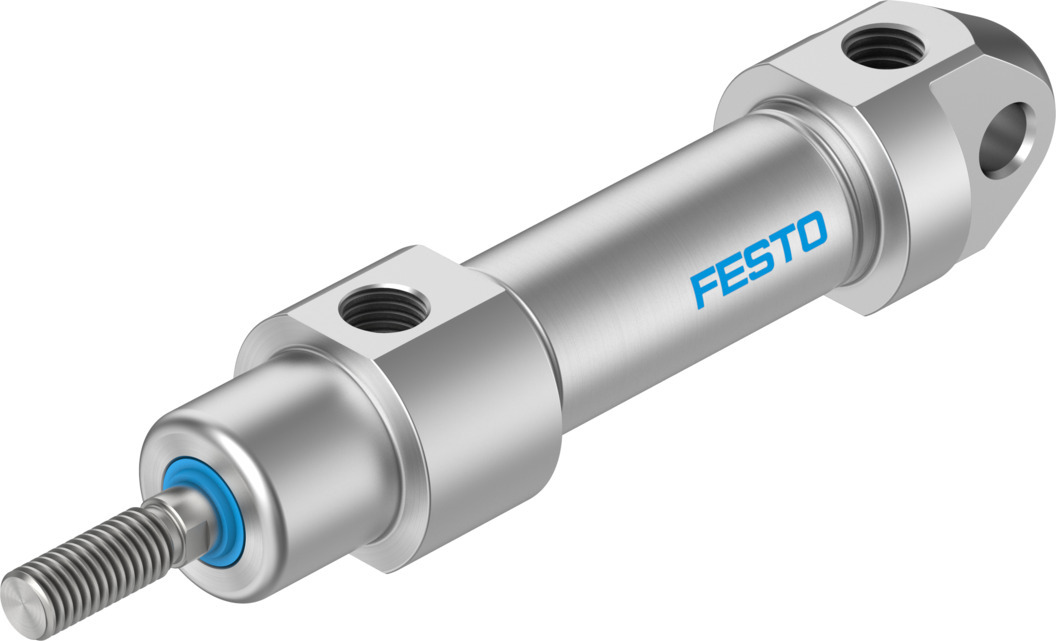

Festo CRDSNU-B-20-160-PPS-A-MG-A1 ISO cylinder
Part number8073973EAN / GTIN4052568298098HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CRDSNU-B-20-160-PPS-A-MG-A1 — ISO cylinder, stainless steel pneumatic cylinders. stroke 160 mm; piston diameter 20 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 8073973
- Type code
- CRDSNU-B-20-160-PPS-A-MG-A1
- EAN / GTIN
- 4052568298098
- Product category
- Stainless steel pneumatic cylinders
- Stroke
- 160 mm
- Piston diameter
- 20 mm
- Based on standard
- ISO 6432
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Design
- Piston, Piston rod, Cylinder barrel
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 4 - Very high corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitable for use with food
- See supplementary material information
- Ambient temperature
- 0 ... 80 °C
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 158 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 188 N
- Moving mass for 0 mm stroke
- 42.1 g
- Additional moving mass per 10 mm stroke
- 3.9 g
- Basic weight for 0 mm stroke
- 310 g
- Additional weight per 10 mm stroke
- 7.2 g
- Type of mounting
- With accessories
- Pneumatic connection
- G1/8
- Material cover
- High-alloy stainless steel
- Material piston rod
- High-alloy stainless steel
- Material cylinder barrel
- High-alloy stainless steel
- Product type
- Pneumatic ISO Air Cylinder
- Product group
- Pneumatics
- Port Size
- G1/8"
- Carbon footprint (EPD)
- 5.6570 kg CO2e per pcs
- Country of origin
- India
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568298098
- MPN 8073973
Product Documentation
Document preview: CRDSNU-B-20-160-PPS-A-MG-A1 — Festo product documentation
