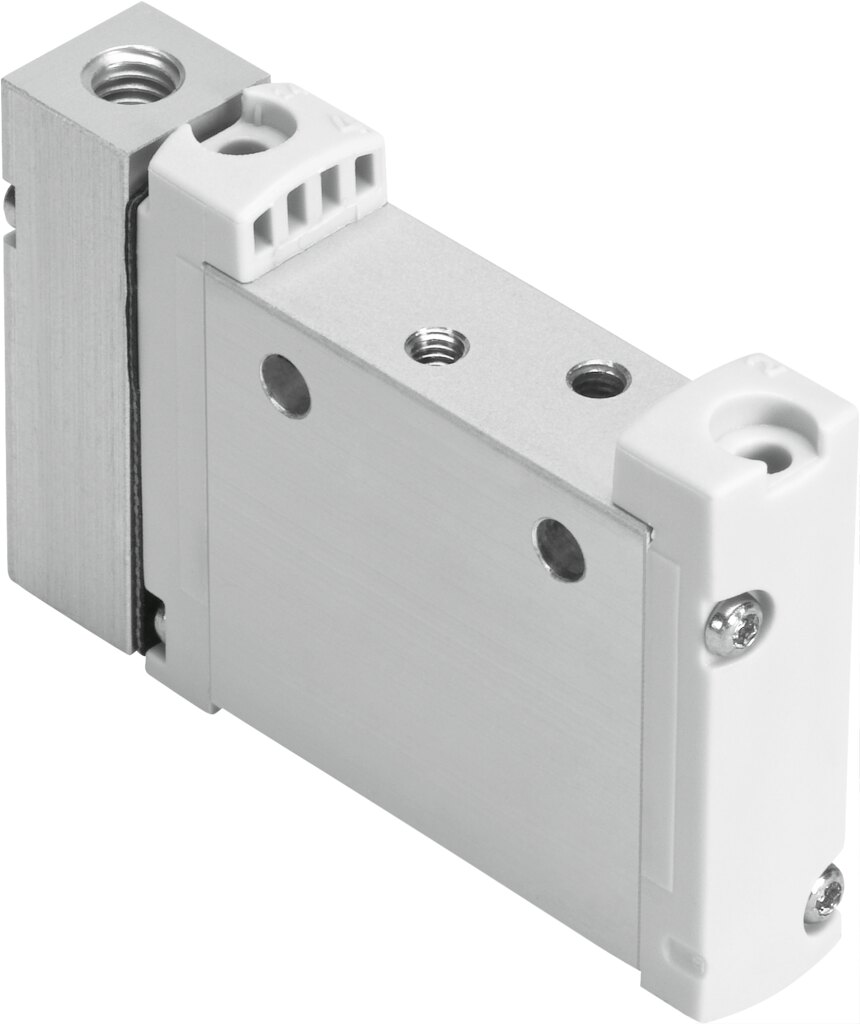

Festo VUWG-L10A-M52-R-M3 Pneumatic valve

Festo VUWG-L10A-M52-R-M3 — Pneumatic valve, universal directional control valves. valve function 5/2-way, single solenoid; operating pressure 2.5. 10 bar.

Manufacturer part number (MPN)

573795

Type code

VUWG-L10A-M52-R-M3

EAN / GTIN

4052568102852

Product category

Universal directional control valves

Valve function

5/2-way, single solenoid

Type of actuation

Pneumatic

Valve size

10 mm

Standard nominal flow rate (standardised to DIN 1343)

100 l/min

pneumatic working port

M3

Operating pressure

2.5 ... 10 bar

Design

Piston gate valve

Type of reset

Mechanical spring, Pneumatic spring

Grid dimension

10.5 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

None

Type of piloting

Direct

Flow direction

Reversible with restrictions

Symbol

00992907

lap

Overlap

Pilot pressure

2.5 ... 10 bar

Suitability for vacuum

No

Switching time off

11 ms

Switching time on

5 ms

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14

Class 5 according to ISO 14644-1

Media temperature

-5 ... 50 °C

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-5 ... 60 °C

Product weight

37 g

Type of mounting

On PR rail, with through-hole

Pilot air port 12

M5

Pilot air port 14

M5

Pneumatic connection, port 1

M3

Pneumatic connection, port 2

M3

Pneumatic connection, port 3

M3

Pneumatic connection, port 4

M3

Pneumatic connection, port 5

M3

Material seals

HNBR, NBR

Material housing

anodised

Product type

Pneumatic Valves Air-Controlled

Product group

Pneumatics

Thread

M3"

Activation

Air

Return

Spring

Carbon footprint (EPD)

0.8176 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568102852
• MPN 573795
