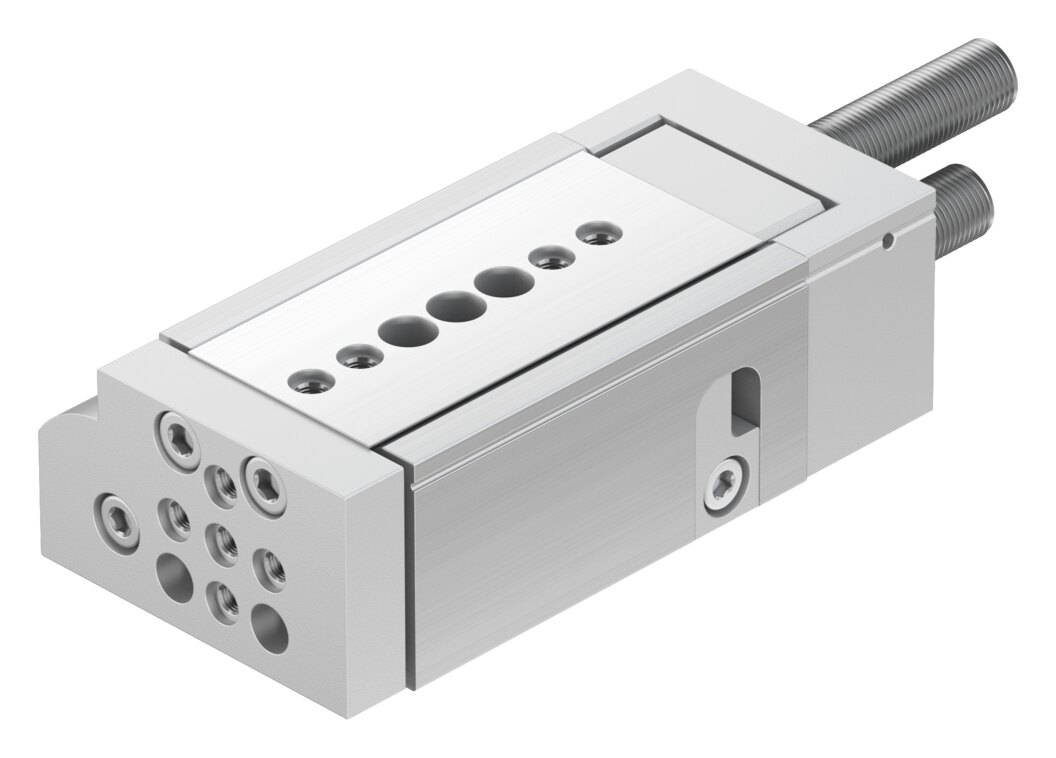

Festo DGSL Mini Slide - M5, DGSL-16-10-P1A
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL Mini Slide. Pneumatic ISO compact air cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: port size M5, supplier type designation DGSL-16-10-P1A. Supplied under manufacturer part number 543991, EAN 4052568183349, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 10 mm
- Adjustable end position range/length front
- 37.5 mm
- Adjustable end position range/length rear
- 39.5 mm
- Piston diameter
- 20 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/pads at both ends with fixed stop
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke; Piston; Piston rod; Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.1 ... 0.8 MPa (1 ... 8 bar)
- Max. speed
- 0.8 m/s
- Repetition accuracy
- ±0.01 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.12 J
- Cushioning length
- 4.2 mm
- Max. force Fy
- 1769 N
- Max. force Fz
- 1769 N
- Max. moment Mx
- 35 Nm
- Max. moment My
- 20 Nm
- Max. moment Mz
- 20 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 158 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 188 N
- Moving mass
- 403 g
- Product weight
- 976 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- EAN / GTIN
- 4052568183349
- Festo type code
- DGSL-16-10-P1A
- Festo order number
- 543991
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 18.9591 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 543991
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568183349
- MPN 543991
Product Documentation
More from Festo
Festo
Festo DGPL Linear cylinder - 25mm, 400mm, DGPL-25-400-PPV-A-B-KF
526650
Festo
Festo CPE18 Solenoid Valve - QS-10", El, Spring, CPE18-M1H-3OL-QS-10
163156
Festo
Festo VABM-B10 Connection block - 1/2", VABM-B10-30S-G12-4-P3
8026415
Festo
Festo DGSL Mini Slide - M3, DGSL-4-30-EA
570160
Festo

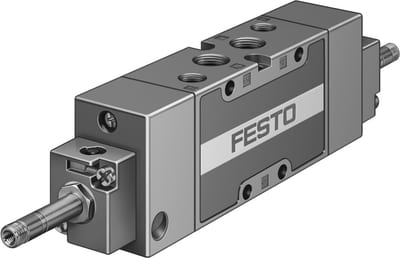

Festo MFH Solenoid Valve - G1/4", El, Spring, MFH-5/3E-1/4-S-B
31002
Festo

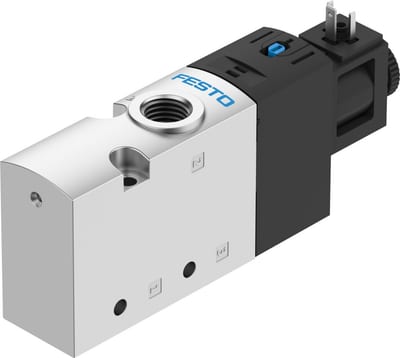

Festo VUVS-L25 Solenoid Valve 3/2 24V DC - G1/4", El, Spring, VUVS-L25-M32U-AZD-G14-F8-1C1
575491
Festo

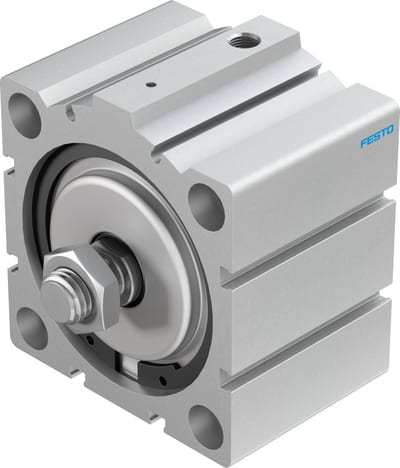

Festo AEVC Short stroke cylinder - 80mm, G1/8, 25mm, AEVC-80-25-A-P
188307
Festo

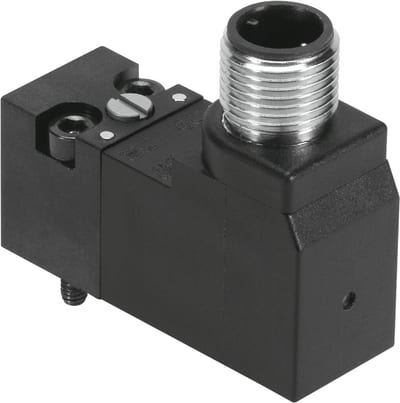

Festo VSCS-B Solenoid Valve closed monostable 3/2 - El, Mechanical spring, VSCS-B-M32-MH-WA-1R3-8
