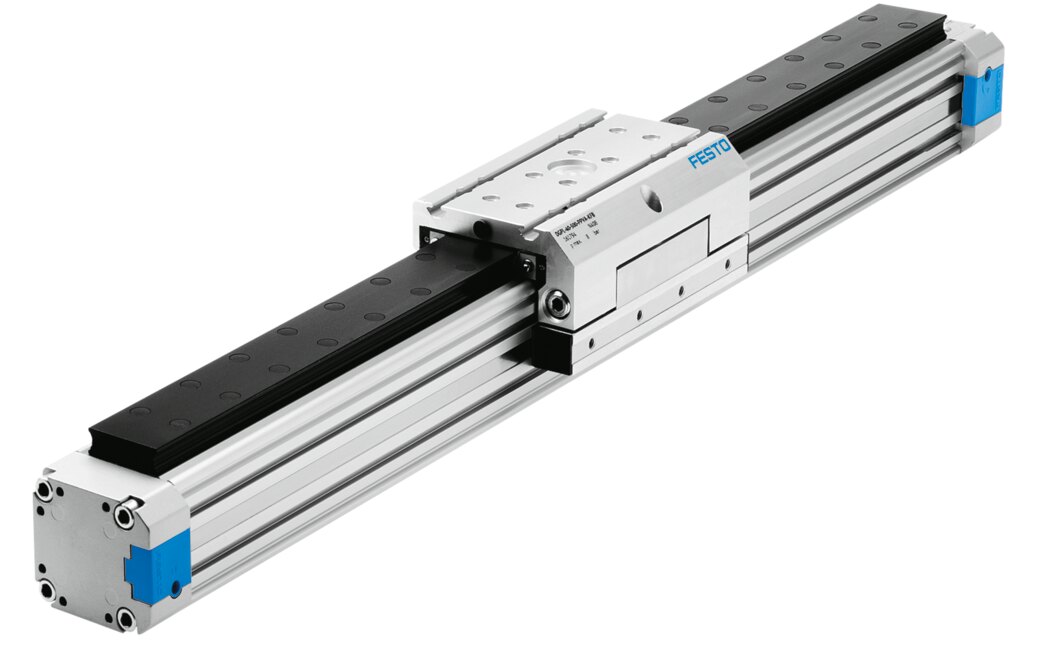

Festo DGPL Linear cylinder - 25mm, 400mm, DGPL-25-400-PPV-A-B-KF
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGPL Linear cylinder. Pneumatic rodless cylinders (Technique / Pneumatics / Pneumatic Cylinders). Principal data: diameter 25 mm, stroke rate 400 mm, supplier type designation DGPL-25-400-PPV-A-B-KF. Supplied under manufacturer part number 526650, EAN 4052568162399, HS code 8412.31, country of origin Germany.
Technical Specifications
- Stroke
- 400 mm
- Piston diameter
- 25 mm
- Cushioning
- Pneumatic cushioning, adjustable at both ends; Shock absorber, hard characteristic curve
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Coupling design
- Positive-locking (slot)
- Position detection
- Via proximity switch
- Symbol
- 00991254
- Operating pressure
- 0.2 ... 0.8 MPa (2 ... 8 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:-:-]
- Note on operating and pilot medium
- Lubricated operation possible (in which case lubricated operation will always be required)
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 ... 60 °C
- Cushioning length
- 18 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke
- 295 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke
- 295 N
- Moving mass
- 600 g
- Moving mass for 0 mm stroke
- 600 g
- Additional moving mass per 10 mm stroke
- 53 g
- Basic weight for 0 mm stroke
- 1520 g
- alternative connections
- See product drawing
- Pneumatic connection
- G1/8
- Material cover
- Die-cast aluminium; coated
- Material seals
- NBR; TPE-U(PU)
- Material housing
- anodised
- EAN / GTIN
- 4052568162399
- Festo type code
- DGPL-25-400-PPV-A-B-KF
- Festo order number
- 526650
- Product type
- Pneumatic rodless cylinders
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 70.9879 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
- Manufacturer part number
- 526650
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568162399
- MPN 526650
