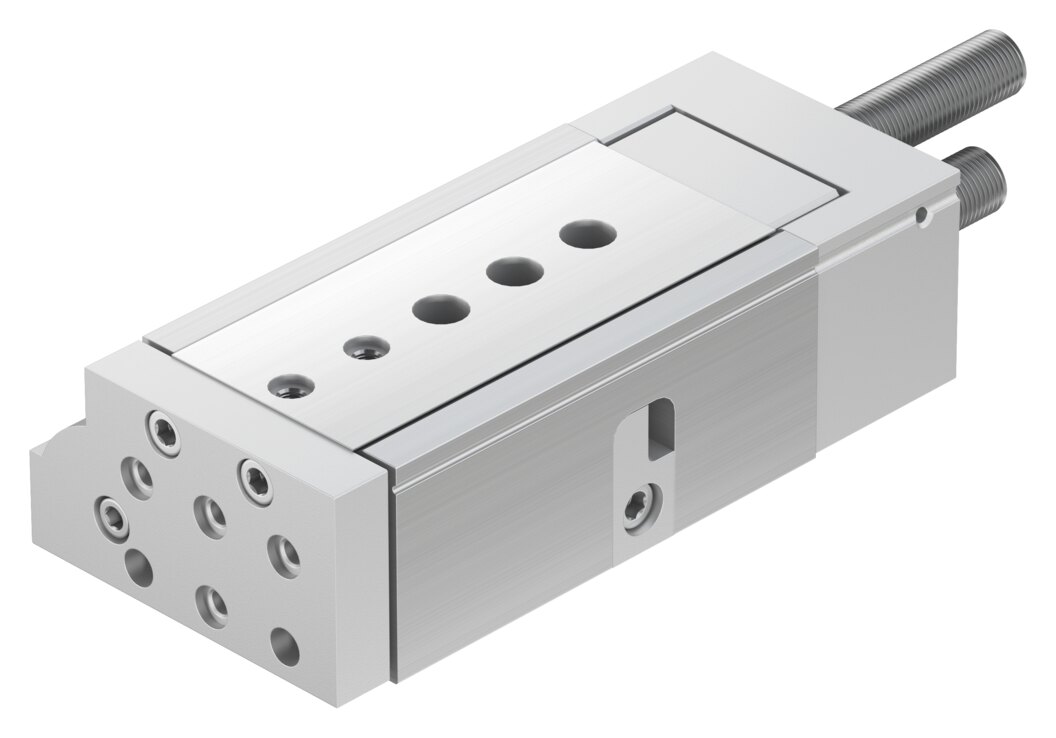

Festo DGSL-20-40-PA Mini slide
Part number544008EAN / GTIN4052568183516HS code8412.31
Pneumatics
Pneumatic Cylinders
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DGSL-20-40-PA — Mini slide, drives with slides. stroke 40 mm; piston diameter 25 mm; operating pressure 0.1. 0.8 MPa (1. 8 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 544008
- Type code
- DGSL-20-40-PA
- EAN / GTIN
- 4052568183516
- Product category
- Drives with slides
- Stroke
- 40 mm
- Adjustable end position range/length front
- 50.5 mm
- Adjustable end position range/length rear
- 49.5 mm
- Piston diameter
- 25 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Elastic cushioning rings/plates at both ends
- Mounting position
- Any
- Guide
- Ball bearing cage guide
- Design
- Yoke, Piston, Piston rod, Slide
- Position detection
- Via proximity switch
- Symbol
- 00991263
- Operating pressure
- 0.1 ... 0.8 MPa (1 ... 8 bar)
- Max. speed
- 0.8 m/s
- Repetition accuracy
- 0.3 mm
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- 0 ... 60 °C
- Impact energy in end positions
- 0.45 J
- Cushioning length
- 1.2 mm
- Max. force Fy
- 3612 N
- Max. force Fz
- 3612 N
- Max. moment Mx
- 60 Nm
- Max. moment My
- 40 Nm
- Max. moment Mz
- 40 Nm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 247 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 295 N
- Moving mass
- 801 g
- Product weight
- 2021 g
- alternative connections
- See product drawing
- Type of mounting
- With through-hole
- Pneumatic connection
- G1/8
- Material cover
- Wrought aluminium alloy
- Material seals
- HNBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 29.2126 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568183516
- MPN 544008
Product Documentation
Document preview: DGSL-20-40-PA — Festo product documentation
More from Festo
Festo
Festo MS6-DL-1/2 Soft-start valve
529817
Festo
Festo QS-G3/8-8-I Push-in fitting
186111
Festo
Festo PRS-1/8-3-B Manifold block
11899
Festo
Festo SME-8-K-LED-24 Proximity sensor
150855
Festo
Festo LFR-3/4-D-7-DI-MAXI Filter regulator
192378
Festo

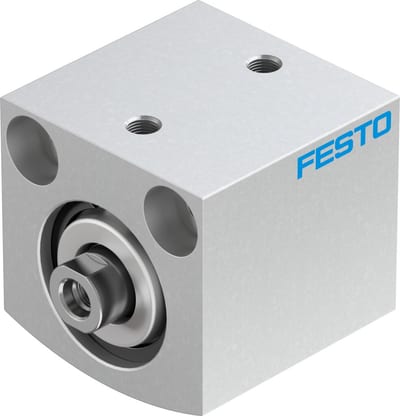

Festo ADVC Short stroke cylinder - 25mm, M5, 15mm, ADVC-25-15-I-P
188179
Festo

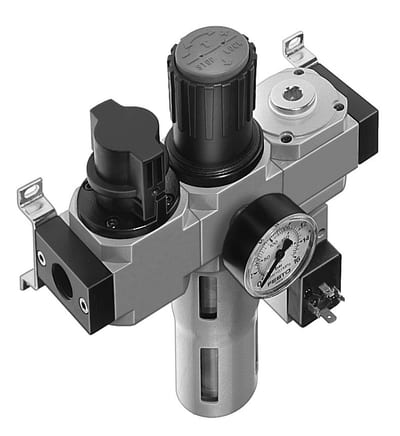

Festo LFR-1/2-D-DI-MAXI-KF-A Service unit combination
