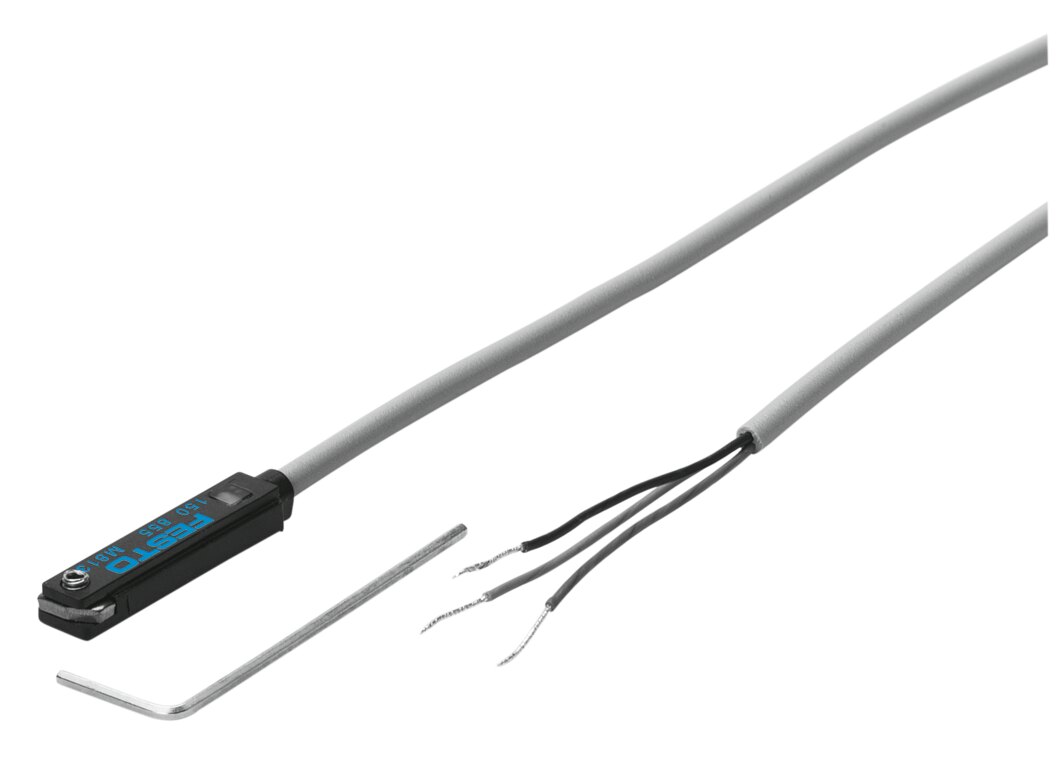

Festo SME-8-K-LED-24 Proximity sensor
Part number150855EAN / GTIN4052568010409HS code8536.50
Pneumatics
Pneumatic Components
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo SME-8-K-LED-24 — Proximity sensor, t-slot cylinder sensors. conforms to standard EN 60947-5-2.
Technical Specifications
- Manufacturer part number (MPN)
- 150855
- Type code
- SME-8-K-LED-24
- EAN / GTIN
- 4052568010409
- Product category
- T-slot cylinder sensors
- Design
- For T-slot
- Conforms to standard
- EN 60947-5-2
- Symbol
- 00991620
- Approval
- RCM
- CE mark (see declaration of conformity)
- To EU EMC Directive, In accordance with EU RoHS Directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC, To UK RoHS instructions
- Instructions on use
- Support / actuator-sensor overview "The right sensor for the actuator"
- Measured variable
- Position
- Measuring principle
- Magnetic reed
- Ambient temperature
- -40 ... 60 °C
- Repetition accuracy
- 0.2 mm
- Switching output
- Contacting, bipolar
- Switching element function
- N/O contact
- Switch-on time
- 0.5 ms
- Switch-off time
- 0.03 ms
- Max. switching frequency
- 800 Hz
- Max. output current
- 500 mA
- Max. switching capacity AC
- 10 VA
- Max. switching capacity DC
- 10 W
- Voltage drop
- 0 V
- Inductive protective circuit
- Adapted to MZ, MY, ME coils
- Short circuit current rating
- No
- Overload protection
- Not provided
- Operational voltage range AC
- 12 ... 30 V
- Operational voltage range DC
- 12 ... 30 V
- Reverse polarity protection
- No
- Electrical connection 1, connection type
- Cable
- Electrical connection 1, connector system
- Open end
- Electrical connection 1, number of connections/cores
- 3
- Connection outlet orientation
- In-line
- Cable length
- 2.5 m
- Cable sheath colour
- Grey
- Material cable sheath
- TPE-U(PUR)
- Type of mounting
- Clamped in T-slot, Inserted into the slot lengthwise
- Tightening torque
- 0.2 Nm
- Mounting position
- Any
- Product weight
- 30 g
- Housing colour
- Black
- Material housing
- Epoxy resin, Makrolon®, PET, High-alloy stainless steel
- Switching status indication
- Yellow LED
- Ambient temperature with moving cable
- -5 ... 60 °C
- Degree of protection
- IP65, IP67
- Insulation voltage
- 50 V
- Immunity to surge
- 0.8 kV
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Pollution degree
- 3
- Product type
- Pneumatic reed contacts/cables/brackets
- Product group
- Pneumatics
- Carbon footprint (EPD)
- 0.3100 kg CO2e per pcs
- Country of origin
- Bulgaria
- Customs tariff code (EU CN)
- 85365019
- HS code
- 8536.50
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 4052568010409
- MPN 150855
Product Documentation
Document preview: SME-8-K-LED-24 — Festo product documentation
More from Festo
Festo
Festo LFR-3/4-D-7-DI-MAXI Filter regulator
192378
Festo
Festo ADVC Short stroke cylinder - 25mm, M5, 15mm, ADVC-25-15-I-P
188179
Festo
Festo LFR-1/2-D-DI-MAXI-KF-A Service unit combination
192459
Festo
Festo DZH-25-500-PPV-A Flat cylinder
151132
Festo
Festo QSLV2-3/8-10 Multiple distributor
153218
Festo
Festo VUVG-B14-T32U-MZT-F-1P3 Solenoid valve
574377
Festo
Festo VMPA2-M1BH-W-PI Solenoid valve
8022040
Festo

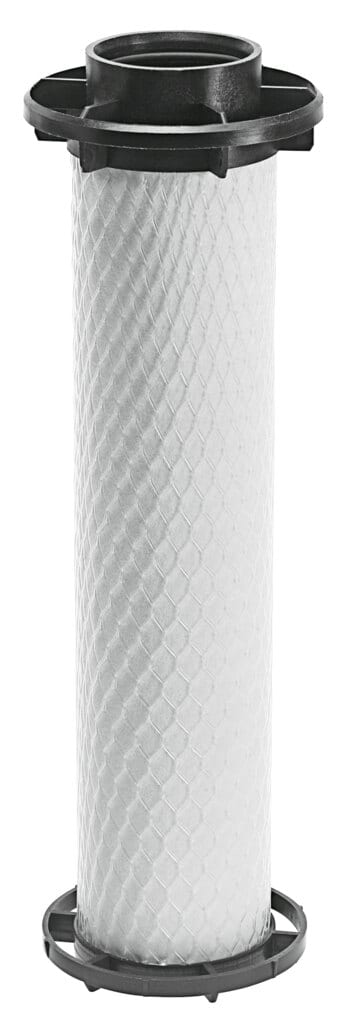

Festo MS9-LFX Activated carbon filter cartridge
