Festo

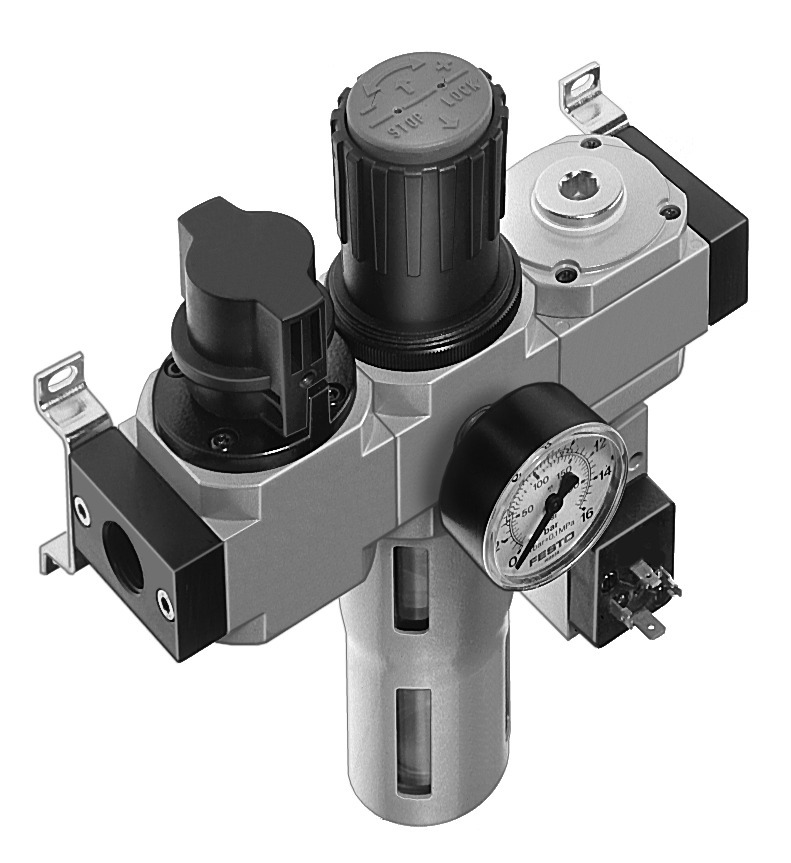

Festo LFR-1/2-D-DI-MAXI-KF-A Service unit combination
Part number192459EAN / GTIN4052568151959HS code8481.10
Pneumatics
Air Preparation
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo LFR-1/2-D-DI-MAXI-KF-A — Service unit combination, compressed air preparation. operating pressure 0.2. 1.2 MPa (2. 12 bar; 29. 174 psi).
Technical Specifications
- Manufacturer part number (MPN)
- 192459
- Type code
- LFR-1/2-D-DI-MAXI-KF-A
- EAN / GTIN
- 4052568151959
- Product category
- Compressed air preparation
- Lifecycle status
- Phase-out
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical +/-5°
- Grade of filtration
- 40 µm
- Condensate drain
- Fully automatic
- Design
- Branching module, Pressure switch, On/off valve, Filter regulator with pressure gauge
- Max. condensate volume
- 43 ml
- Bowl guard
- Metal bowl guard
- Symbol
- 00991758
- Pressure gauge (ANALOG) or Pressure display (DIGITAL)
- With pressure gauge
- Operating pressure
- 0.2 ... 1.2 MPa (2 ... 12 bar; 29 ... 174 psi)
- Pressure regulation range
- 0.05 ... 1.2 MPa (0.5 ... 12 bar; 7.25 ... 174 psi)
- Operating medium
- Inert gas
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air purity class at output
- Compressed air to ISO 8573-1:2010 [6:8:4], Inert gas
- Media temperature
- -10 ... 60 °C
- Ambient temperature
- -10 ... 60 °C
- Product weight
- 3500 g
- Type of mounting
- With accessories
- Pneumatic connection, port 1
- G1/2
- Pneumatic connection, port 2
- G1/2
- Material housing
- Die-cast zinc
- Material bowl
- Makrolon®
- Product type
- Air treatment
- Product group
- Pneumatics
- Thread
- 1/2"
- Press Area
- 0.5 to 12 bar
- Filter element
- 40 My
- Carbon footprint (EPD)
- 54.5581 kg CO2e per pcs
- Country of origin
- Hungary
- Customs tariff code (EU CN)
- 84811005
- HS code
- 8481.10
Standards & Compliance
- HS Code
- 8481.10
Cross References
- EAN 4052568151959
- MPN 192459
Product Documentation
Document preview: LFR-1/2-D-DI-MAXI-KF-A — Festo product documentation
