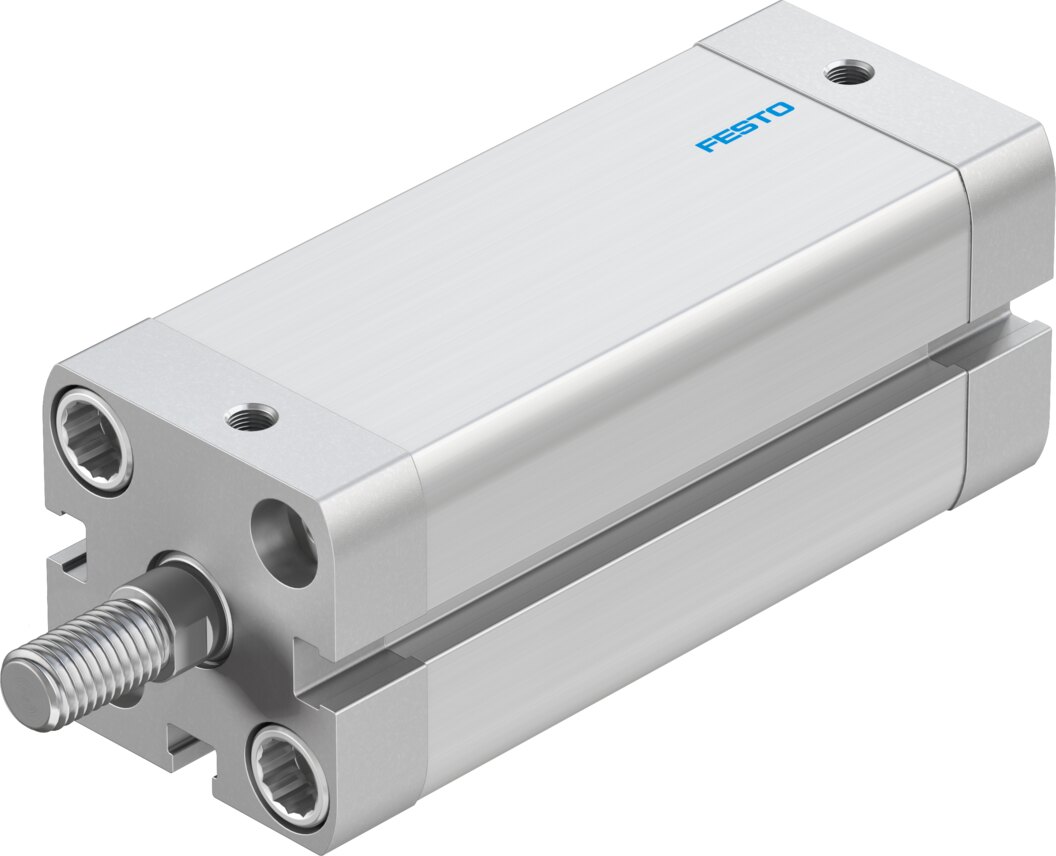

Festo ADN-25-60-A-PPS-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN-25-60-A-PPS-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 60 mm; piston diameter 25 mm; operating pressure 0.15. 1 MPa (1.5. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 577189
- Type code
- ADN-25-60-A-PPS-A
- EAN / GTIN
- 4052568104740
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 60 mm
- Piston diameter
- 25 mm
- Piston rod thread
- M8
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Male thread
- Position detection
- Via proximity switch
- Symbol
- 00991217
- Variants
- Piston rod at one end
- Operating pressure
- 0.15 ... 1 MPa (1.5 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 5 according to ISO 14644-1
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 0.3 J
- Cushioning length
- 3.5 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 247 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 295 N
- Moving mass
- 77 g
- Product weight
- 328 g
- Type of mounting
- With through-hole, with female thread, with accessories
- Pneumatic connection
- M5
- Material collar screws
- Steel
- Material cover
- Anodised wrought aluminium alloy
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 5.3556 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568104740
- MPN 577189
Product Documentation
More from Festo
Festo
Festo DFM-12-30-P-A-GF Guided drive
170827
Festo
Festo CPE10-M1BH-5L-M5 Solenoid valve
196881
Festo
Festo ADVUL-12-25-P-A Compact cylinder
156848
Festo
Festo DAMS-K-V1-50-V-R3 Swivel flange
2787651
Festo
Festo KYE-120 Shock absorber retainer
557586
Festo
Festo HUA-80 Foot mounting
157316
Festo

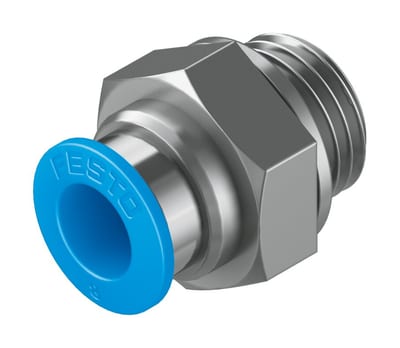

Festo QS-G1/4-8 Push-in fitting
186099
Festo

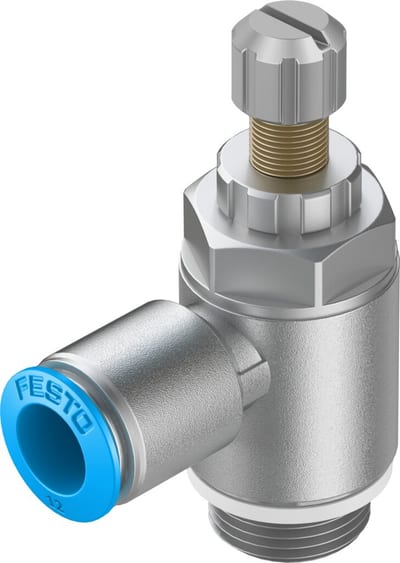

Festo GRLA-1/2-QS-12-RS-D One-way flow control valve
