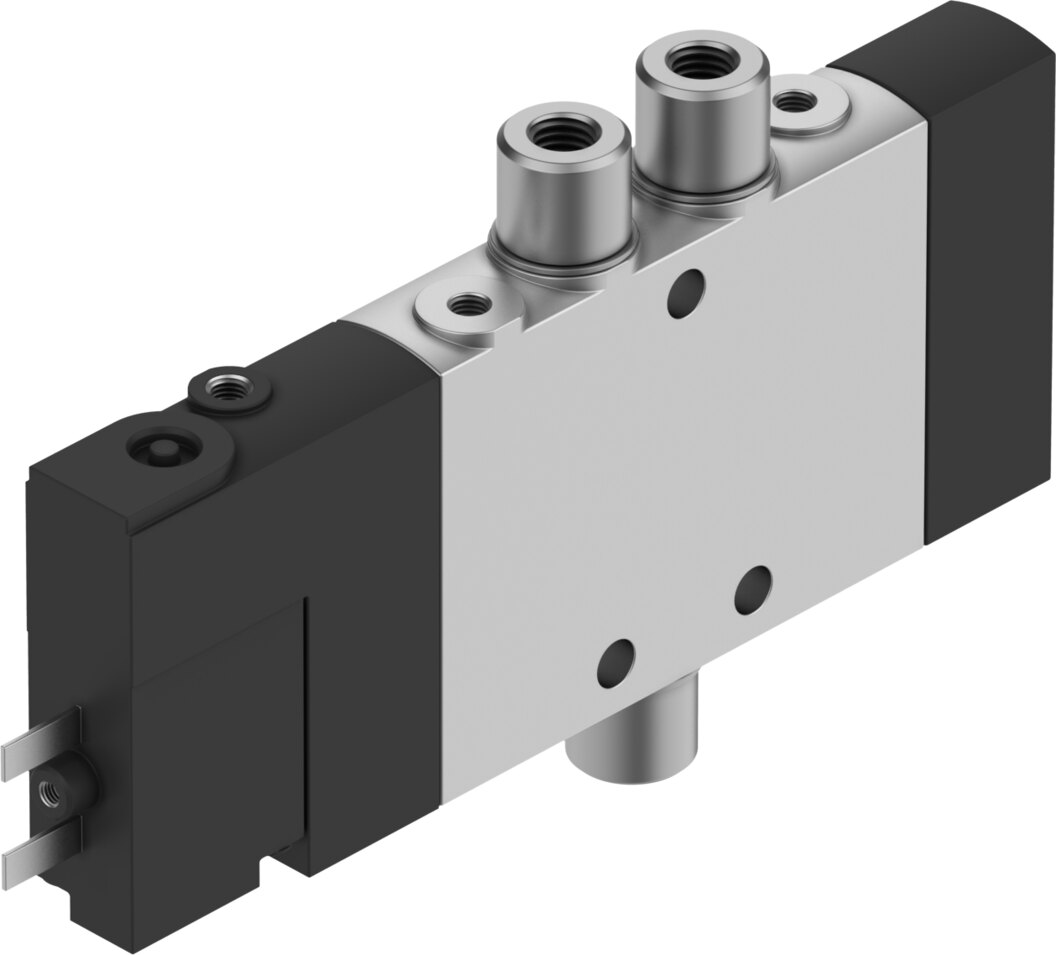

Festo CPE10-M1BH-5L-M5 Solenoid valve

Festo CPE10-M1BH-5L-M5 — Solenoid valve, valves and valve terminals. valve function 5/2-way, single solenoid; operating pressure 0.3. 0.8 MPa (3. 8 bar); nominal size 4 mm.

Manufacturer part number (MPN)

196881

Type code

CPE10-M1BH-5L-M5

EAN / GTIN

4052568159719

Product category

Valves and valve terminals

Valve function

5/2-way, single solenoid

Type of actuation

Electrical

Construction width

10 mm

Standard nominal flow rate (standardised to DIN 1343)

180 l/min

pneumatic working port

M5

Operating voltage

24 V DC

Operating pressure

0.3 ... 0.8 MPa (3 ... 8 bar)

Design

Piston gate valve

Type of reset

Pneumatic spring

Approval

c UL us - Recognised (Oil)

Maritime classification

See certificate

Certificate issuing authority

UL MH19482

Degree of protection

IP65, with plug socket, To IEC 60529

Nominal size

4 mm

Exhaust-air function

Can be throttled

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting via accessory, Non-detenting

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00991023

Valve position code

Label holder

lap

Overlap

Switching time off

20 ms

Switching time on

16 ms

Duty cycle

100% in conjunction with holding current reduction

Max. positive test pulse with 0 signal

1200 µs

Max. negative test pulse with 1 signal

900 µs

Characteristic coil data

24 V DC: 1.28 W

Permissible voltage fluctuations

-15% / +10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Media temperature

-5 ... 50 °C

Ambient temperature

-5 ... 50 °C

Electrical connection

2-pin

Type of mounting

With through-hole

Pilot exhaust port 82

M3

Pilot exhaust port 84

M3

Pilot air port 12

M3

Pilot air port 14

M3

Pneumatic connection, port 1

M5

Pneumatic connection, port 2

M5

Pneumatic connection, port 3

M7

Pneumatic connection, port 4

M5

Pneumatic connection, port 5

M7

Material seals

NBR

Material housing

Die-cast aluminium

Product type

Pneumatic solenoid valves

Product group

Pneumatics

Thread

M5"

Activation

El

Return

Spring

Carbon footprint (EPD)

0.6732 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
