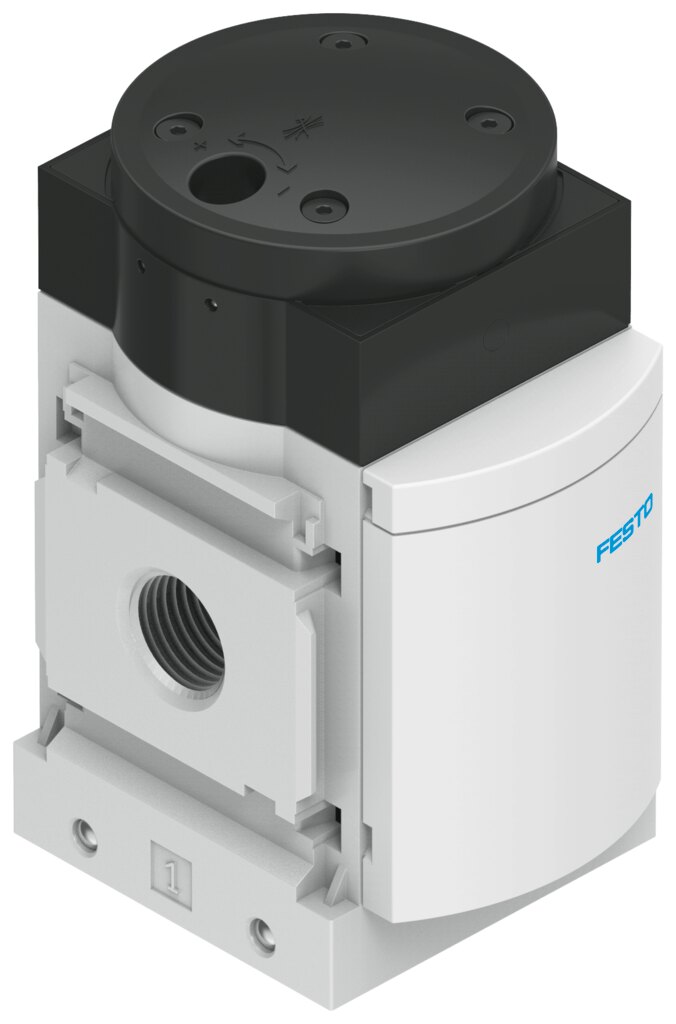

Festo MS6-DL-1/2 Soft-start valve

Festo MS6-DL-1/2 — Soft-start valve, pneumatically actuated soft-start valves ms-dl. valve function 2/2; operating pressure 4. 18 bar.

Manufacturer part number (MPN)

529817

Type code

MS6-DL-1/2

EAN / GTIN

4052568005214

Product category

Pneumatically actuated soft-start valves MS-DL

Exhaust-air function

Can be throttled

Type of actuation

Pneumatic

Mounting position

Any

Manual override

None

Design

Piston seat

Type of reset

Mechanical spring

Type of piloting

Direct

Pilot air supply

External

Flow direction

Non-reversible

Symbol

00991513

Valve function

2/2

Operating pressure

4 ... 18 bar

b value

0.39

C value

28.97 l/sbar

Standard nominal flow rate (standardised to DIN 1343)

6450 l/min

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Suitable for use with food

See supplementary material information

Media temperature

-10 ... 60 °C

Ambient temperature

-10 ... 60 °C

Product weight

650 g

Type of mounting

With accessories

Pneumatic connection, port 1

G1/2

Pneumatic connection, port 2

G1/2

Material seals

NBR

Material housing

Die-cast aluminium

Product type

Air treatment

Product group

Pneumatics

Thread

1/2"

Return

Spring

Working pressure

18 bar

Temperature min

-10 °C

Temperature max

60 °C

Carbon footprint (EPD)

12.9254 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20

• EAN 4052568005214
• MPN 529817
