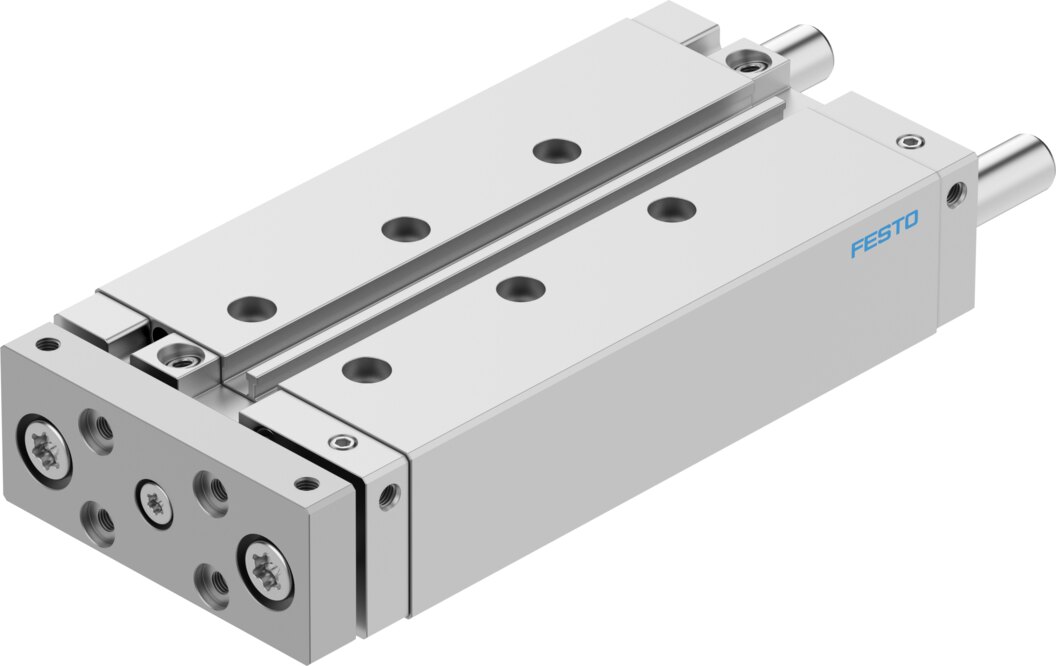

Festo DFM-20-100-B-PPV-A-KF Guided drive
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo DFM-20-100-B-PPV-A-KF — Guided drive, drives with guide rods. stroke 100 mm; piston diameter 20 mm; operating pressure 0.2. 1 MPa (2. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 559481
- Type code
- DFM-20-100-B-PPV-A-KF
- EAN / GTIN
- 4052568362751
- Product category
- Drives with guide rods
- Stroke
- 100 mm
- Piston diameter
- 20 mm
- Operating mode, drive unit
- Yoke
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Guide
- Recirculating ball bearing guide
- Design
- Guidance
- Position detection
- Via proximity switch
- Operating pressure
- 0.2 ... 1 MPa (2 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Cleanroom suitability, measured according to ISO 14644-14
- Class 6 according to ISO 14644-1
- Ambient temperature
- -5 ... 60 °C
- Impact energy in end positions
- 0.2 J
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 158 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 188 N
- alternative connections
- See product drawing
- Pneumatic connection
- M5
- Material cover
- Wrought aluminium alloy
- Material seals
- NBR
- Material housing
- Wrought aluminium alloy
- Material piston rod
- High-alloy stainless steel
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- M5
- Carbon footprint (EPD)
- 31.3242 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568362751
- MPN 559481
Product Documentation
More from Festo
Festo
Festo VABM-B10-20E-G38-5-P3 Manifold block
576444
Festo
Festo ADN-80-25-A-PPS-A Compact cylinder
572730
Festo
Festo VABM-B10-20-G38-2-P53-E Common supply manifold
576414
Festo
Festo LFR-1/2-D-MIDI-KB-A Service unit combination
185728
Festo

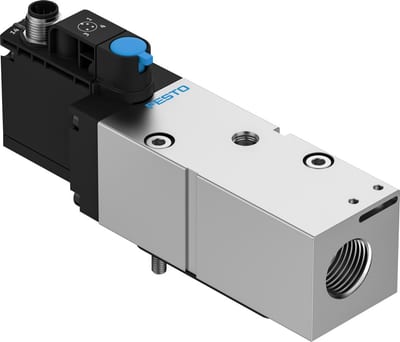

Festo VABF-S6-1-P5A4S1YE-G12-1T1L-PZ Soft-start valve
8161609
Festo

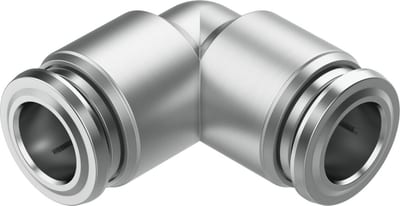

Festo NPQR-L-Q8-E Plug
8085711
Festo
Festo VUVG-L10-T32C-MZT-M5-1P3 Solenoid valve
574352
Festo

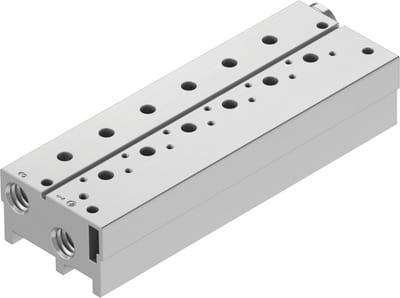

Festo VABM-B10-20S-G14-5-P3 Manifold block
