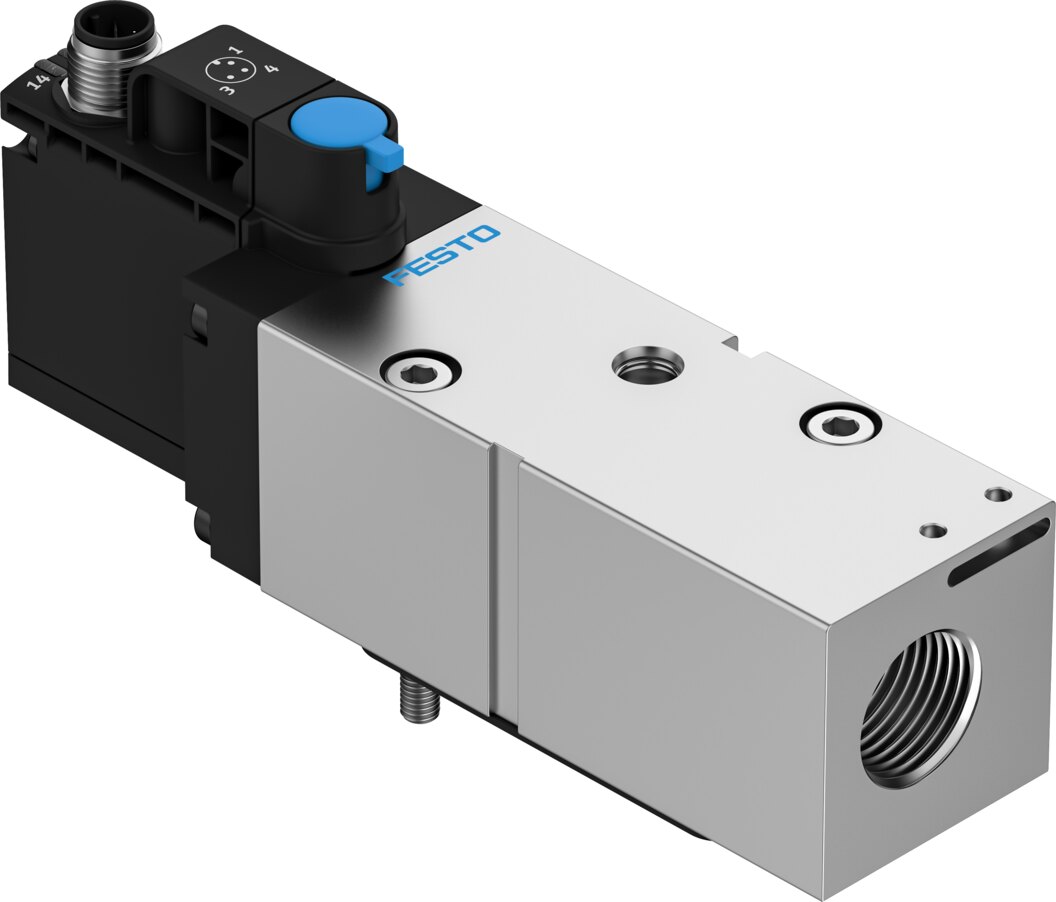

Festo VABF-S6-1-P5A4S1YE-G12-1T1L-PZ Soft-start valve

Festo VABF-S6-1-P5A4S1YE-G12-1T1L-PZ — Soft-start valve, function components. valve function Building up pressure, Exhausting; operating pressure 0.3. 1 MPa (3. 10 bar).

Manufacturer part number (MPN)

8161609

Type code

VABF-S6-1-P5A4S1YE-G12-1T1L-PZ

EAN / GTIN

4052568589158

Product category

Function components

Max. positive test pulse with 0 signal

2000 µs

Max. negative test pulse with 1 signal

1200 µs

Width

40 mm

Length

155 mm

Grid dimension

41 mm

Valve size

40 mm

Vibration resistance

Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistance

Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Type of actuation

Electrical

Sealing principle

Soft

Mounting position

Any

Manual override

Detenting, Self-resetting via electrical control signal

Design

Piston gate valve

Type of reset

Mechanical spring

Type of piloting

Piloted

Pilot air supply

Internal

Flow direction

Non-reversible

Symbol

00997590

Valve function

Building up pressure, Exhausting

Switching element function

N/C contact

lap

Underlap

Additional functions

Holding current reduction

Signal status display

Yellow LED, valve control, Green LED, pressure switch, exhausted status

Switching position sensing

Via pressure switch, exhausted status

Operating pressure

0.3 ... 1 MPa (3 ... 10 bar)

Pilot pressure

0.3 ... 0.8 MPa (3 ... 8 bar)

Switchover pressure

Not adjustable, Switching point between 50 - 75% of operating pressure

Suitability for vacuum

No

Standard nominal flow rate ventilation

3000 l/min

Standard nominal flow rate for exhaust

3300 l/min

Duty cycle

100%

Nominal pick-up current per solenoid coil

60 mA to 35 ms

Nominal operating voltage DC

24 V

Nominal current with current reduction

11 mA after 35 ms

Characteristic coil data

24 V DC: 1.6 W

Permissible voltage fluctuations

+/-10%

Operating medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC

0 - No corrosion stress

LABS (PWIS) conformity

VDMA24364 zone III

Storage temperature

-20 ... 60 °C

Media temperature

-5 ... 50 °C

Relative air humidity

Max. 90% at 40 °C

Degree of protection

IP65

Pilot medium

Compressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature

-5 ... 50 °C

Mean time to failure (MTTF), subcomponent

452 years, pressure switch

Product weight

466 g

Switch-off point min.

0.05 bar

Switch-on point

0.2 bar

Switch-on point max.

0.3 bar

Electrical control

Multi-pin

Electrical connection

Plug-in

Sensor connection

Plug, 3-pin, M12x1

Type of mounting

On sub-base

Pneumatic connection, port 3

G1/2

Material seals

HNBR, NBR

Material housing

Wrought aluminium alloy

Material screws

Galvanised steel

Product type

Pneumatic ISO accessories

Product group

Pneumatics

Carbon footprint (EPD)

8.8465 kg CO2e per pcs

Country of origin

Germany

Customs tariff code (EU CN)

84812090

HS code

8481.20

HS Code

8481.20
