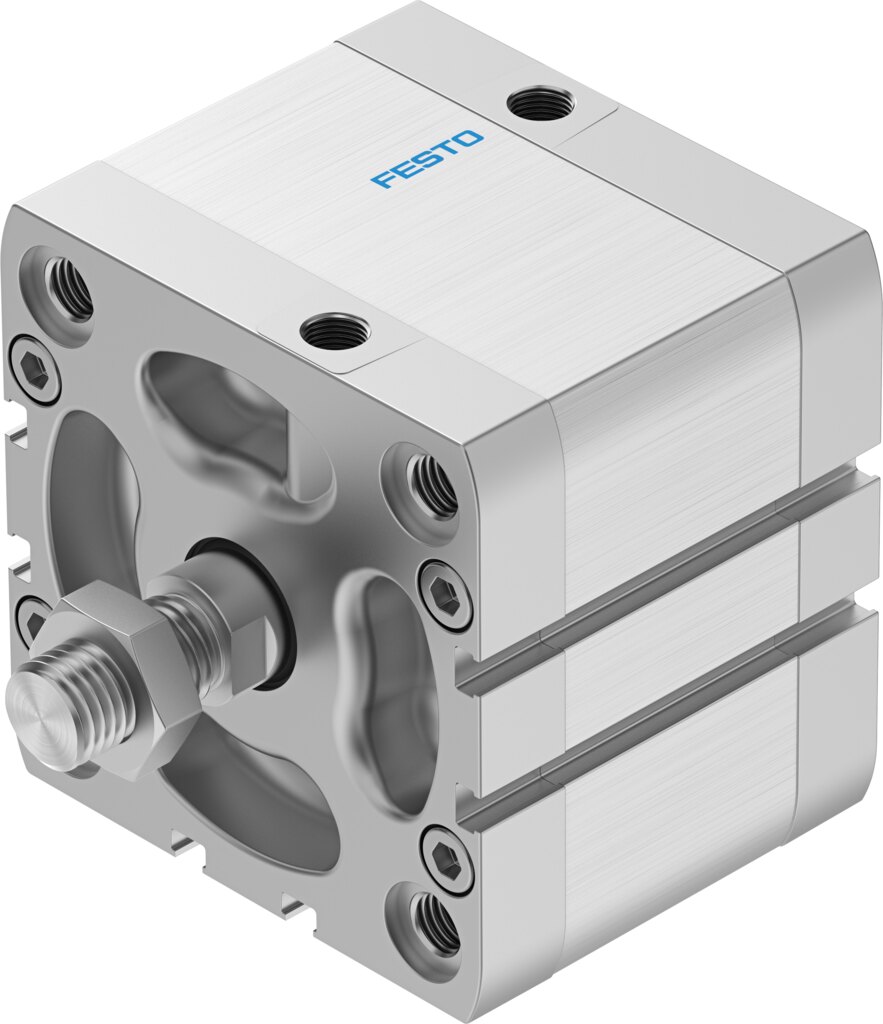

Festo ADN-80-25-A-PPS-A Compact cylinder
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo ADN-80-25-A-PPS-A — Compact cylinder, compact pneumatic cylinders, short-stroke and flat cylinders. stroke 25 mm; piston diameter 80 mm; operating pressure 0.1. 1 MPa (1. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 572730
- Type code
- ADN-80-25-A-PPS-A
- EAN / GTIN
- 4052568219512
- Product category
- Compact pneumatic cylinders, short-stroke and flat cylinders
- Stroke
- 25 mm
- Piston diameter
- 80 mm
- Piston rod thread
- M16x1.5
- Cushioning
- Self-adjusting pneumatic end-position cushioning
- Mounting position
- Any
- Conforms to standard
- ISO 21287
- Piston-rod end
- Male thread
- Position detection
- Via proximity switch
- Symbol
- 00992970
- Variants
- Piston rod at one end
- Operating pressure
- 0.1 ... 1 MPa (1 ... 10 bar)
- Mode of operation
- Double-acting
- Operating medium
- Compressed air to ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 ... 80 °C
- Impact energy in end positions
- 8 J
- Cushioning length
- 7.5 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return strok
- 2827 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stro
- 3016 N
- Moving mass
- 515 g
- Product weight
- 1361 g
- Type of mounting
- With through-hole, with female thread, with accessories
- Pneumatic connection
- G1/8
- Material collar screws
- Steel
- Material cover
- Coated die-cast aluminium
- Material seals
- TPE-U(PUR)
- Material piston rod
- High-alloy steel
- Material cylinder barrel
- Smooth-anodised wrought aluminium alloy
- Product type
- Pneumatic ISO compact air cylinders
- Product group
- Pneumatics
- Port Size
- G1/8
- Carbon footprint (EPD)
- 25.8526 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84123100
- HS code
- 8412.31
Standards & Compliance
- HS Code
- 8412.31
Cross References
- EAN 4052568219512
- MPN 572730
Product Documentation
More from Festo
Festo
Festo VABM-B10-20-G38-2-P53-E Common supply manifold
576414
Festo
Festo LFR-1/2-D-MIDI-KB-A Service unit combination
185728
Festo
Festo VABF-S6-1-P5A4S1YE-G12-1T1L-PZ Soft-start valve
8161609
Festo
Festo NPQR-L-Q8-E Plug
8085711
Festo
Festo VUVG-L10-T32C-MZT-M5-1P3 Solenoid valve
574352
Festo
Festo VABM-B10-20S-G14-5-P3 Manifold block
576468
Festo
Festo SZB-50 Swivel flange
30629
Festo

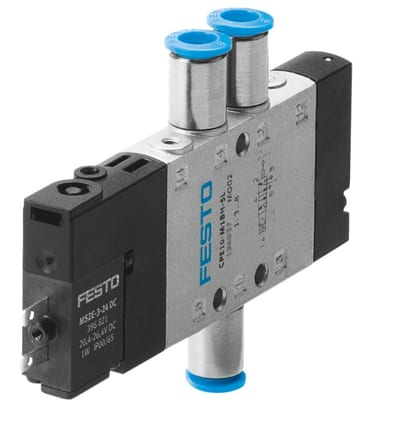

Festo CPE10-M1BH-5L-QS-4 Solenoid valve
