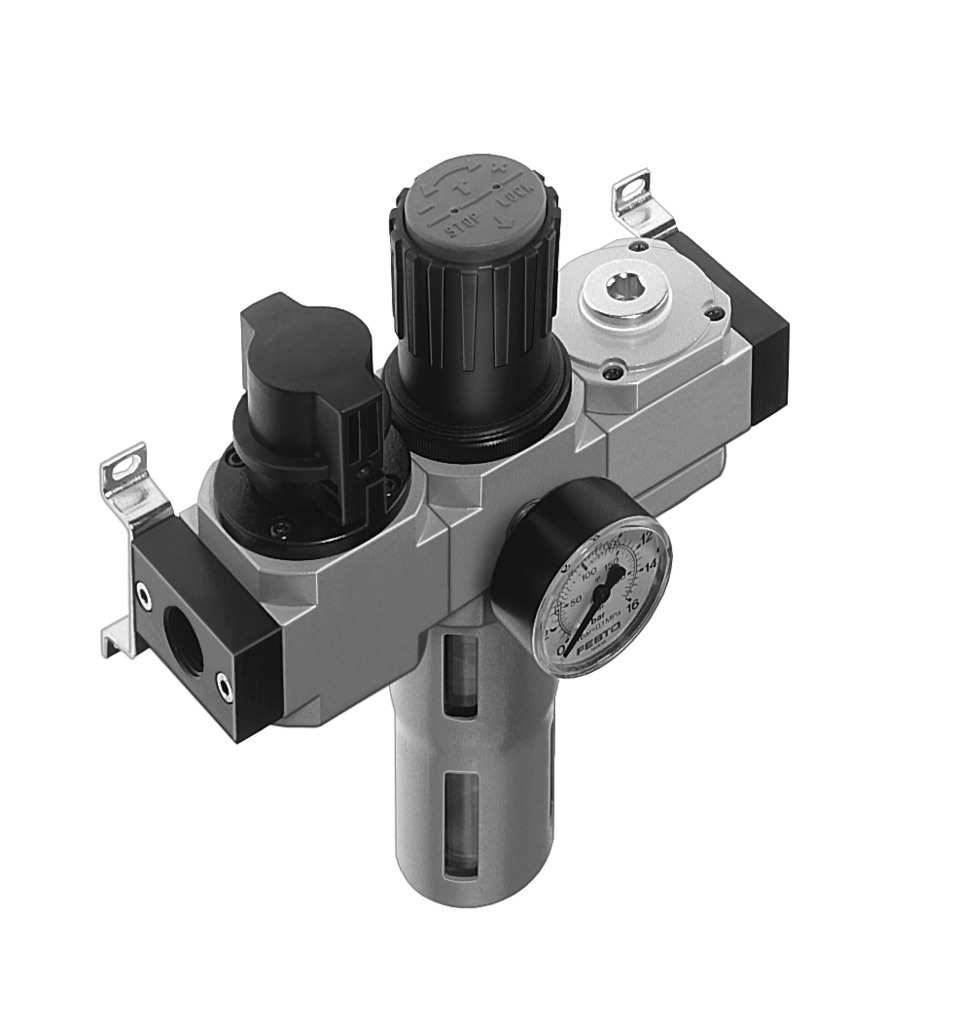

Festo LFR-1/2-D-MIDI-KB-A Service unit combination

Festo LFR-1/2-D-MIDI-KB-A — Service unit combination, compressed air preparation. operating pressure 0.2. 1.2 MPa (2. 12 bar; 29. 174 psi).

Manufacturer part number (MPN)

185728

Type code

LFR-1/2-D-MIDI-KB-A

EAN / GTIN

4052568144890

Product category

Compressed air preparation

Lifecycle status

Phase-out

Size

Midi

Series

D

Actuator lock

Rotary knob with detent

Mounting position

Vertical +/-5°

Grade of filtration

40 µm

Condensate drain

Fully automatic

Design

Branching module, On/off valve, Filter regulator with pressure gauge

Max. condensate volume

43 ml

Bowl guard

Metal bowl guard

Symbol

00991553

Pressure gauge (ANALOG) or Pressure display (DIGITAL)

With pressure gauge

Operating pressure

0.2 ... 1.2 MPa (2 ... 12 bar; 29 ... 174 psi)

Pressure regulation range

0.05 ... 1.2 MPa (0.5 ... 12 bar; 7.25 ... 174 psi)

Max. pressure hysteresis

0.035 MPa (0.35 bar; 5.075 psi)

Standard nominal flow rate (standardised to DIN 1343)

2920 l/min

Operating medium

Inert gas

Corrosion resistance class CRC

2 - Moderate corrosion stress

LABS (PWIS) conformity

VDMA24364-B1/B2-L

Air purity class at output

Compressed air to ISO 8573-1:2010 [7:8:4], Inert gas

Media temperature

-10 ... 60 °C

Ambient temperature

-10 ... 60 °C

Product weight

2200 g

Type of mounting

With accessories

Pneumatic connection, port 1

G1/2

Pneumatic connection, port 2

G1/2

Material housing

Die-cast zinc

Material bowl

Makrolon®

Product type

Air treatment

Product group

Pneumatics

Thread

1/2"

Press Area

0.5 to 12 bar

Filter element

40 My

Carbon footprint (EPD)

35.9930 kg CO2e per pcs

Country of origin

Hungary

Customs tariff code (EU CN)

84811005

HS code

8481.10

HS Code

8481.10

• EAN 4052568144890
• MPN 185728
