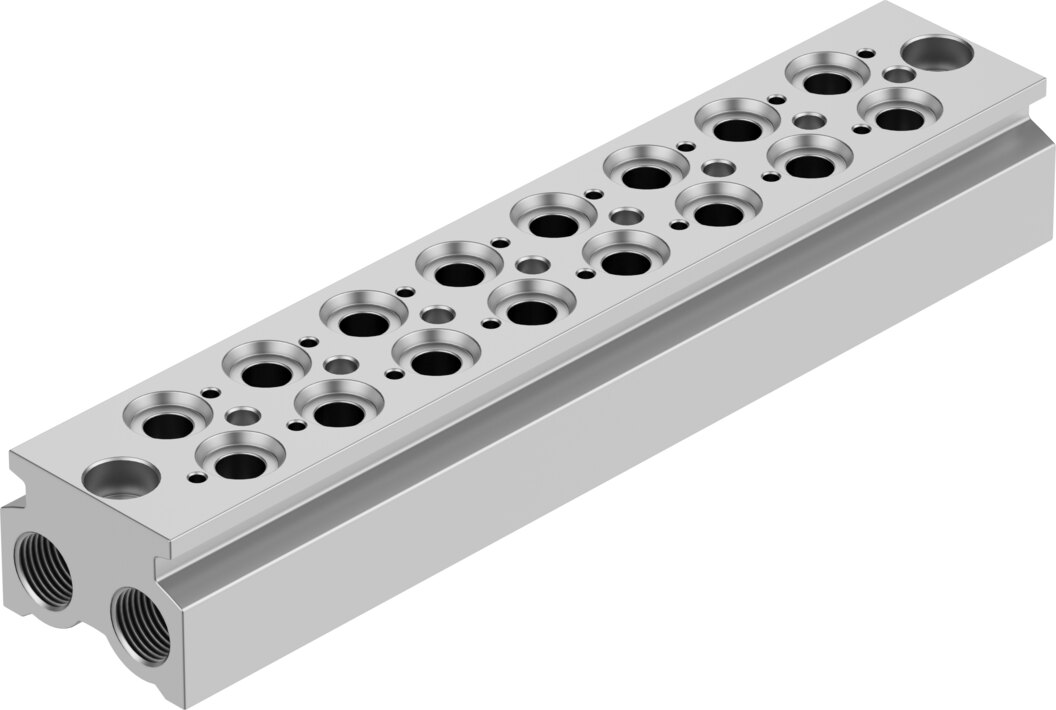

Festo CPE18-3/2-PRS-3/8-8 Manifold block
Pricing
Request a quote
We reply within 24 hours
Product Description
Festo CPE18-3/2-PRS-3/8-8 — Manifold block, valves and valve terminals. operating pressure -0.09. 1 MPa (-0.9. 10 bar).
Technical Specifications
- Manufacturer part number (MPN)
- 550574
- Type code
- CPE18-3/2-PRS-3/8-8
- EAN / GTIN
- 4052568094317
- Product category
- Valves and valve terminals
- Grid dimension
- 26 mm
- Mounting position
- Any
- Max. number of valve positions
- 8
- Max. number of pressure zones
- 2
- Burst pressure
- 5 MPa (50 bar; 725 psi)
- Operating pressure
- -0.09 ... 1 MPa (-0.9 ... 10 bar)
- Corrosion resistance class CRC
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Media temperature
- -5 ... 50 °C
- Ambient temperature
- -5 ... 50 °C
- Max. tightening torque for valve mounting
- 2 Nm
- Product weight
- 748 g
- Type of mounting in-line valve manifold
- With through-hole
- Mounting method for valve
- With female thread
- Pneumatic connection, port 1
- G3/8
- Pneumatic connection, port 3
- G3/8
- Pneumatic connection, port 5
- G3/8
- Material manifold rail
- Wrought aluminium alloy
- Product type
- Pneumatic ISO accessories
- Product group
- Pneumatics
- Thread
- 3/8"
- Carbon footprint (EPD)
- 24.7020 kg CO2e per pcs
- Country of origin
- Germany
- Customs tariff code (EU CN)
- 84819000
- HS code
- 8481.90
Standards & Compliance
- HS Code
- 8481.90
Cross References
- EAN 4052568094317
- MPN 550574
