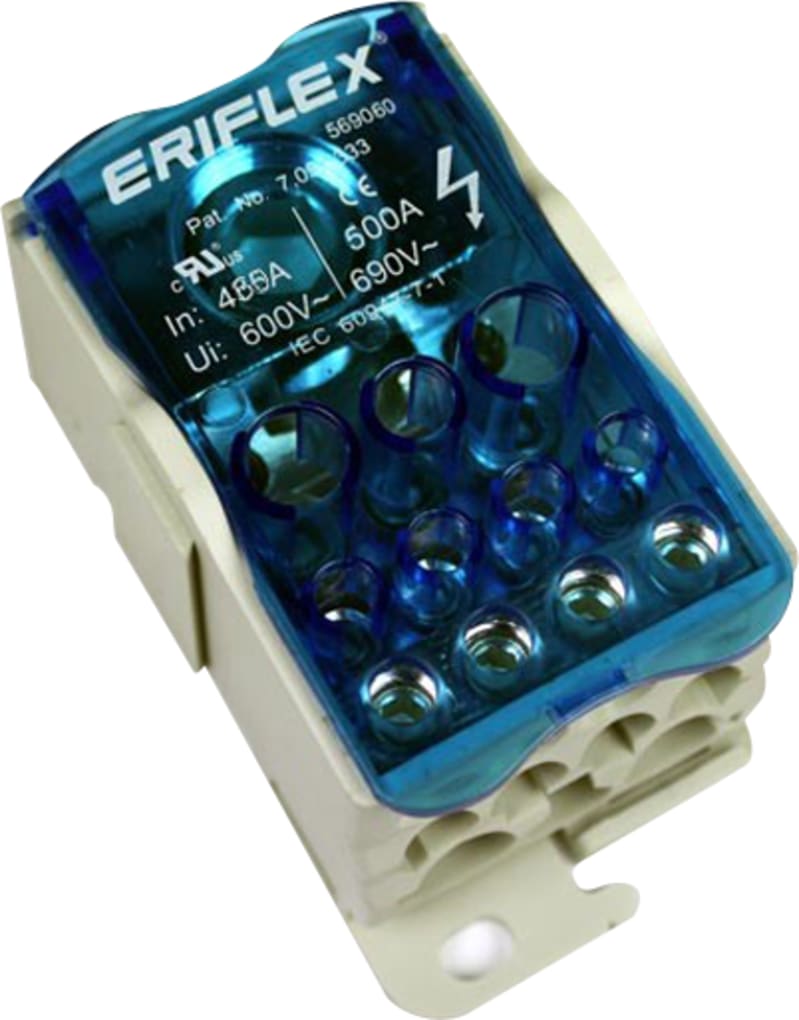

nVent ERIFLEX UDF-500A Single Pole Dist. Block, 335 A UL/CSA, Flat Cond. Line, 11 Cables Load, Copper
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary device for easy assembly between a wide range of conductors to perform electrical power distribution.
Technical Specifications
- Manufacturer part number (MPN)
- UDF-500A # 569060
- EAN / GTIN
- 8711893042696
- Sales unit
- pcs
- Rated current
- 500 A
- Article Number
- 569060
- Finish
- Tinned
- Max Current Rating, IEC
- 500A
- Max Current Rating, UL/CSA
- 335A
- Line Side Connection
- Flat Conductor
- Load Side Connection
- 11 Cables
- Material
- Copper;Thermoplastic
- Line Side Max Conductor Size, IEC
- 185 mm²
- Line Side Max Conductor Size, UL
- 185 mm²
- Load Side Max Conductor Size, IEC
- 35 mm²
- Load Side Max Conductor Size, UL
- #1
- Max Working Voltage, IEC (Ui)
- 1000
- Max Working Voltage, UL (Vin)
- 600
- Short Term Withstand Current (Icw) 1s
- 24.5kA
- Peak Short Circuit Current (Ipk)
- 51kA
- Rated Conditional Short-Circuit Current (Icc)
- 24.3kA
- Short Circuit Current Rating (SCCR)
- 10kA
- Line Side Number of Connections
- 1
- Load Side Number of Connections
- 11
- Load Side Compact Stranded Wire Size
- (2) 6 - 35 mm²;(4) 2,5 - 10 mm²;(5) 2,5 - 16 mm²
- Load Side Stranded Wire Size - Ferrule
- (2) 6 - 25 mm²;(4) 2,5 - 10 mm²;(5) 2,5 - 16 mm²
- Load Side Wire Size
- (2) #10 - #1;(5) #14 - #4;(4) #14 - #6
- Enclosure Rating
- IP 20
- Depth (D)
- 1.99" / 50mm
- Height (H)
- 3.79" / 96 mm
- Width (W)
- 1.93" / 49 mm
- Unit Weight
- 0.82 lb / 0.37 kg
- Certification Details
- UL® 1059
- Flammability Rating
- UL® 94V-0
- Complies With
- IEC® 60947-7-1
- UPC
- 782856594246
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Number of poles
- 1
- Conductor cross section solid (solid, stranded)
- 2.5–35 mm²
- Max. rated current
- 500 A
- With N-rail
- No
- With PE-rail
- No
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 8711893042696
- SAP 1000406565
- Code 8482448
Product Documentation
