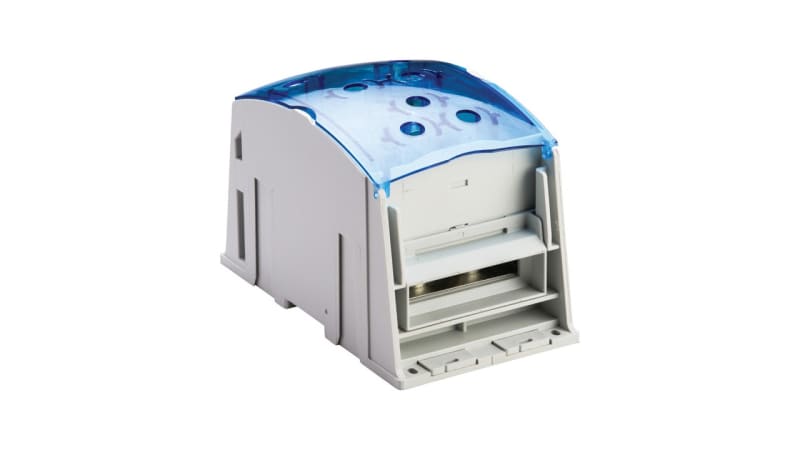

nVent ERIFLEX SBF4C1600AL Splice Block, FLEXIBAR-4 Cables, 1,680 A UL, Aluminum
Pricing
Request a quote
We reply within 24 hours
Product Description
Primary output/input device for power connection between primary and secondary switchboard, or for machine or industrial equipment.
Technical Specifications
- Manufacturer part number (MPN)
- SBF4C1600AL
- EAN / GTIN
- 0782856940104
- Sales unit
- pcs
- Rated current
- 1600 A
- Article Number
- 561177
- Finish
- Tinned
- Type
- Flexibar-4 Cables
- Typical Application Current Rating, IEC
- 1600 A
- Typical Application Current Rating, UL
- 1680 A
- Material
- Aluminum;Thermoplastic
- Line Side Max Conductor Size, IEC
- 800 mm²
- Line Side Max Conductor Size, UL
- 800 mm²
- Load Side Max Conductor Size, IEC
- (4) 300 mm²
- Load Side Max Conductor Size, UL
- (4) 600 kcmil
- Short Term Withstand Current (Icw) 1s
- 96kA
- Max Current Rating, IEC
- 1940A
- Max Current Rating, UL/CSA
- 1680A
- Peak Short Circuit Current (Ipk)
- 105kA
- Rated Conditional Short-Circuit Current (Icc)
- 50kA
- Short Circuit Current Rating (SCCR)
- 100kA
- Max Working Voltage, IEC (Ui)
- 1000;1500
- Max Working Voltage, UL (Vin)
- 1000
- Line Side Number of Connections
- 1
- Line Side nVent ERIFLEX Flexibar Size
- 6X50X1 - 10X80X1
- Line Side DLO Wire Size
- #2 - 373 kcmil
- Load Side Compact Stranded Wire Size
- (4) 35 - 300 mm²
- Load Side Number of Connections
- 4
- Load Side Stranded Wire Size - Ferrule
- (4) 35 - 300 mm²
- Load Side Wire Size
- (4) #2 - 600 kcmil
- Depth (D)
- 4.4" / 112mm
- Height (H)
- 6.93" / 176 mm
- Width (W)
- 3.9" / 99 mm
- Unit Weight
- 2.85 lb / 1.29 kg
- Certification Details
- UL® 1953
- Complies With
- IEC® 60947-7-1
- Enclosure Rating
- IP 20
- Flammability Rating
- UL® 94V-0
- UPC
- 782856940104
- Standard Packaging Quantity
- 1
- Packing Quantity
- 1
- Colour
- Grey
- Model
- Double conductor terminal
- Max. cable cross section
- 300 mm²
- Min. cable cross section (installation side)
- 300 mm²
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 0782856940104
- SAP 1200413713
- Code 82456155
